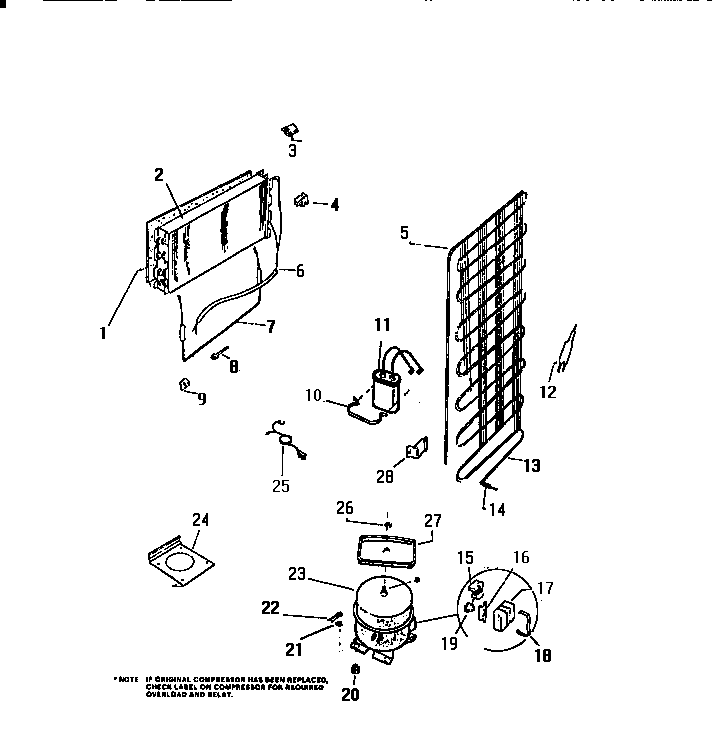

RT155HCD2 04 – COOLING SYSTEMadmin2025-04-26T08:47:50+00:00RT155HCD2 04 – COOLING SYSTEM
Products
| Position | Product |
|---|
| *05776 | WCI G176210 |
| *05780 | HEAT EXCHANGER REPAIR KIT |
| *05778 | SOUND DEADENER |
| *05777 | 5303307896 Frigidaire Refrigerator Thermal Sealant Mastic |
| *05763 | WCI G185266 |
| *05781 | WCI G125963-68 |
| *05779 | WCI G183584 |
| *05762 | HARNESS-COMPRESSOR |
| 1 | INSULATOR |
| 2 | WCI G164563 |
| 3 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 4 | BLOCK, EVAPORATOR, RH |
| 4A | PLUG, EVAPORATOR INSULATION BLOCK, R H |
| 5 | WCI G178225 |
| 6 | WCI G163389 |
| 7 | WCI G162432-02 |
| 8 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 9 | BLOCK, EVAPORATOR, LH |
| 10 | STRAP-CAPACITOR |
| 11 | WCI G188885-01 |
| 12A | WCI R900125 |
| 12 | DRIER-REGULAR |
| 13 | WCI C714203 |
| 14 | SLEEVE-CONNECTOR |
| 15 | WCI G182225-18 |
| 16 | CLIP, OVERLOAD |
| 17 | WCI G185792 |
| 18 | STRAP-COVER |
| 19 | WCI G188877 |
| 20 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 21 | WASHER, COMPRESSOR MOUNTING (4) |
| 22 | CLIP, COMPRESSOR MOUNTING (4) |
| 23 | COMPRESSOR |
| 24 | WCI G162822 |
| 25 | CORD, SERVICE |
| 26 | NUT, LOCK |
| 27 | DEFROST PAN & NUT |
| 28 | WCI C164837 |
