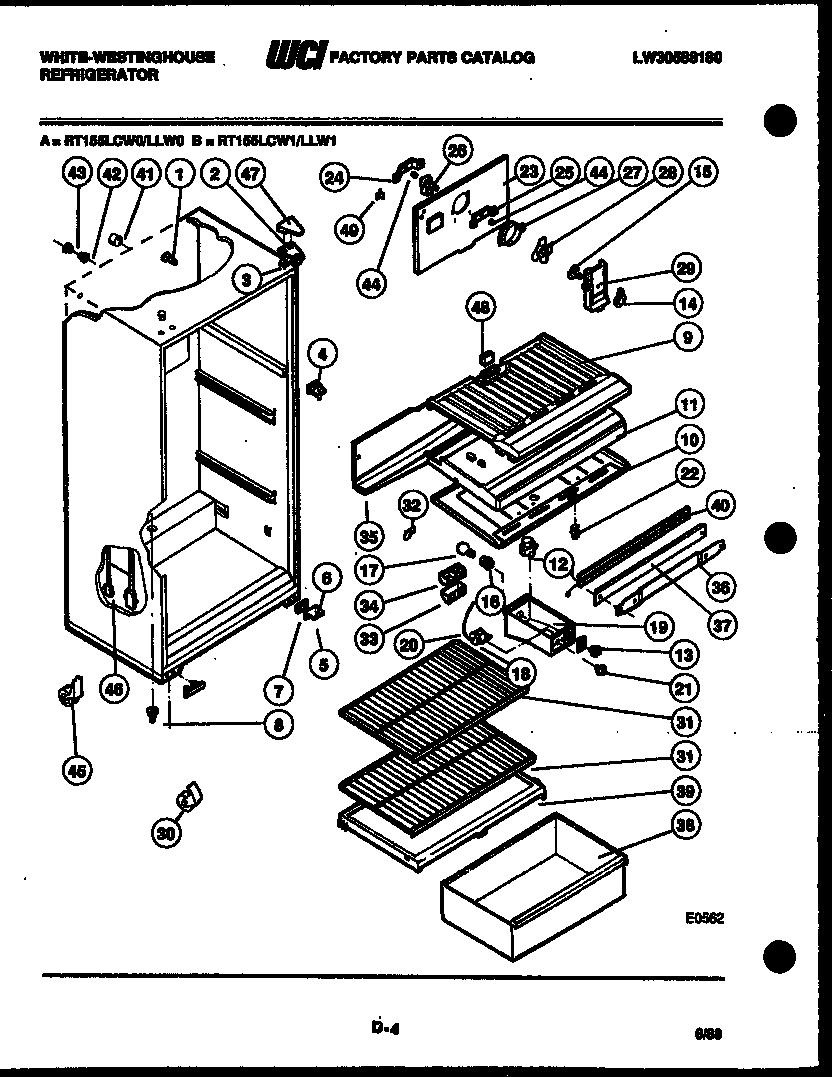

RT155LCD1 03 – CABINET PARTS

Products

PositionProduct
*12986WCI G166912
*12986BUTTON, LINER
1WCI G163669
2BRACKET, TOP HINGE
2AWCI G103903
2B241710601 Frigidaire Refrigerator Screw
3WCI G183861
4ASCREW, BRACKET MOUNTING (4)
4BRACKET, HINGE CENTER
4BWCI G142220
5BRACKET, HINGE, LOWER
65303001321 Frigidaire Refrigerator Lower Hinge Pin
7SHIM, HINGE
8CLIP (4)
9BOTTOM ( FREEZER )
10TOP-REFRIGERATOR
10ASCREW (5)
11DIVIDER-COMPARTMENT
12A5304455649 Frigidaire Refrigerator Screw
12215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
13LABEL-BOX
14WCI G162663-15
15ANUT, DAMPER MOUNTING
15DAMPER FAN COVER
16SOCKET LIGHT
17316538904 Frigidaire Oven Lamp Light
18AWCI G107080
18CONTROL-COLD
19ASWITCH SLIDE
19WCI G176722-01
20TUBE
21KNOB
225309918806 Frigidaire Refrigerator Light Switch Door
23COVER-COIL
24WCI G185303
25WCI G185302
265300158289 Frigidaire Evaporator Fan Motor
27RING, FAN ORIFICE
27ANUT, ORIFICE (2)
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
29WCI G490076-02
30ROLLER-FRONT (2)
31WCI R172173-03
32240396801 Frigidaire Refrigerator Tube Clamp
33WCI G162178
34DEFLECTOR AIR
35TROUGH-DRAIN
36CLAMP, MULLION MOUNTING
37MULLION
37BSPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
37AWASHER (2)
38WCI G162973-34
39COVER-CRISPER
40WCI G187921
41TUBE, INSULATION (2)
42WCI G174734
43WCI G174733
44G187559 Frigidaire Refrigerator Bushing
45ROLLER, REAR (2)
46WCI G185266
47COVER, TOP HINGE, ALMOND
48PAD, FOAM (2)
49WCI G164571
