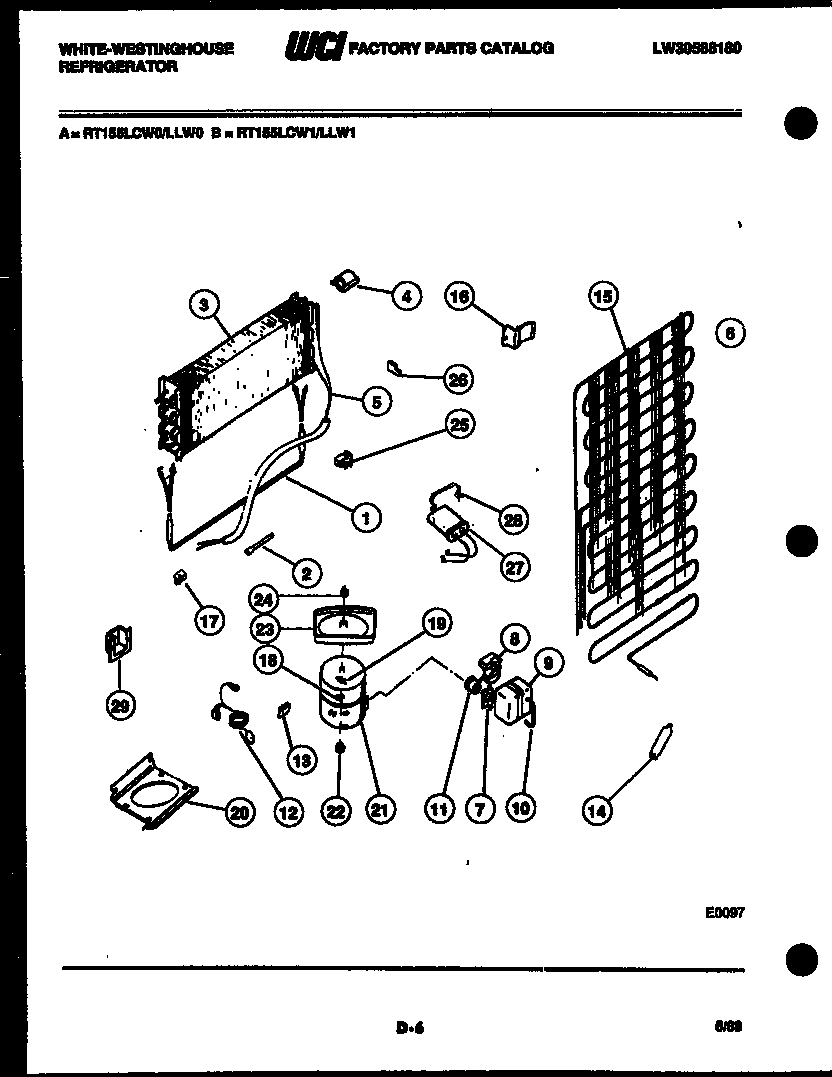

RT155LCF0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

RT155LCF0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RT155LCF0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI G162432-02
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3WCI G164563
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5WCI G149013
6CLAMP-CABLE
7RETAINER, OVERLOAD
8WCI G182225-18
105303006412 Frigidaire Refrigerator Cover Mounting Strap
11WCI G188877
12CORD, SERVICE
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
145303305677 Frigidaire Replacement Filter Dryer Filters
15WCI G178225
16BRACKET-CONDENSER MOUNTING (4)
17BLOCK, LEFT SIDE
18WASHER, COMPRESSOR MOUNTING (4)
19CLIP, COMPRESSOR MOUNTING (4)
20WCI G162822
20AHARNESS-COMPRESSOR
21COMPRESSOR
22218513300 Frigidaire Refrigerator Compressor Mount Grommet
23WCI G184716
24NUT, LOCK
25A218843801 Frigidaire Refrigerator Screw
25BLOCK, EVAPORATOR, RH
26PLUG, EVAPORATOR INSULATION BLOCK, R H
26AHOT TUBE REPAIR KIT (NON-ILLUSTRATED)
27WCI 3001650
28STRAP-CAPACITOR
29WCI G183584
