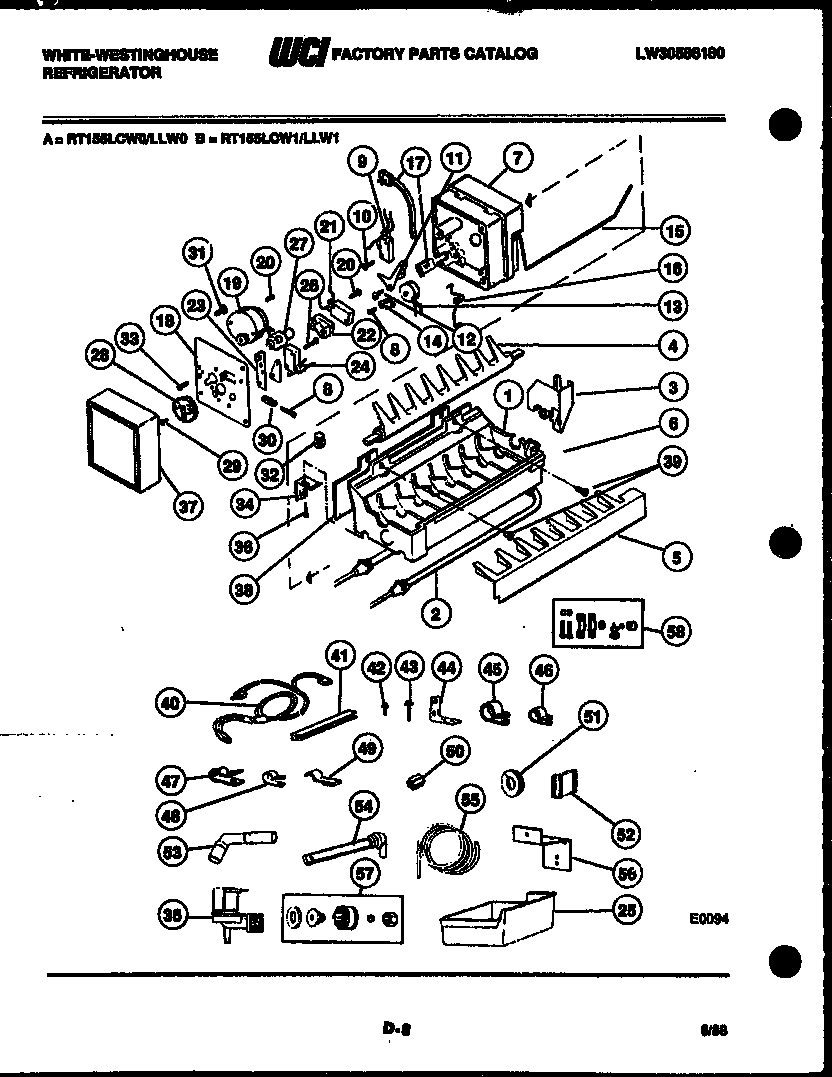

RT155LCW0 05 – ICE MAKER AND INSTALLATION PARTS

Products

Position	Product
1	MOLD AND HEATER ASSEMBLY (INCLUDES ILLUSTRATION 29)
2	WCI G137756
3	WCI G181117
4	WCI G159911
5	STRIPPER-ICE
7	WCI G137748
8	SCREW 8, 32 X 1
10	WCI G137745
11	5304456675 Frigidaire Refrigerator Lever Arm
12	SCREW, SHOULDER
13	WCI G159907
14	WCI G137742
15	ARM, SHUT OFF
16	WCI G137753
17	WIRE ASSEMBLY
18	WCI G186572
19	WCI G137735
20	SCREW 4, 40 X 1
22	SPACER, HOLDING SWITCH
23	WCI G159905
24	SWITCH-SPST
25	5303212918 Frigidaire Refrigerator Cont
26	SCREW 4, 40 X 3/4
27	WCI G137738
28	5304469403 Frigidaire Gear
29	SCREW
30	WCI G159909
31	WCI G159898
32	WCI G159902
33	WCI M1090016
34	WCI G159906
35	WCI G159914
36	WCI M1090120
37A	WCI G161199
37	WCI G159908
38	SHIELD
39	WCI G164766
40	WCI G185266
41	5305877995 Frigidaire Refrigerator P-1 Sealing Strip
42	5308000039 Frigidaire Refrigerator Screw
43	5304455852 Frigidaire Refrigerator Screw
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	240396801 Frigidaire Refrigerator Tube Clamp
46	CLAMP-TUBE (NON-ILLUSTRATED)
47	5304455846 Frigidaire Refrigerator Clamp
48	5303001193 Frigidaire Refrigerator Clamp
49	CLIP, HARNESS LOCATION
50	NUT, INLET TO SOLENOID VALVE
51	5303001147 Frigidaire Refrigerator Plug-Harness Hole
52	WCI G160347
53	WCI G165773
54	215456100 Frigidaire Refrigerator Water Inlet Tube
55	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
56	BRACKET, VALVE TO REAR PANEL
57	WCI G159415
58	WCI G99428
