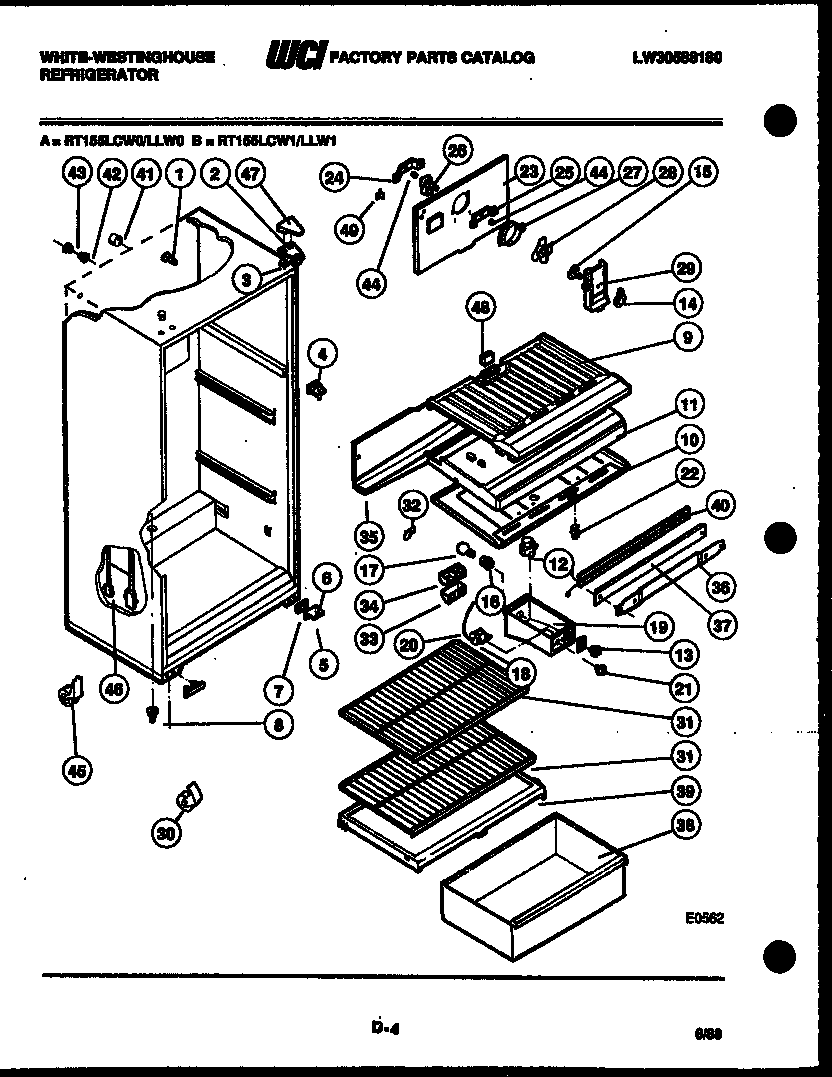

RT155LLV1 03 – CABINET PARTS

Products

Position	Product
*12986	WCI G166912
*12986	BUTTON, LINER
1	WCI G163669
2B	241710601 Frigidaire Refrigerator Screw
2A	WCI G103903
2	BRACKET, TOP HINGE
3	WCI G183861
4B	WCI G142220
4	BRACKET, HINGE CENTER
4A	SCREW, BRACKET MOUNTING (4)
5	BRACKET, HINGE, LOWER
6	5303001321 Frigidaire Refrigerator Lower Hinge Pin
7	SHIM, HINGE
8	CLIP (4)
9	BOTTOM ( FREEZER )
10A	SCREW (5)
10	TOP-REFRIGERATOR
11	DIVIDER-COMPARTMENT
12A	5304455649 Frigidaire Refrigerator Screw
12	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
13	LABEL-BOX
14	WCI G162663-15
15A	NUT, DAMPER MOUNTING
15	DAMPER FAN COVER
16	SOCKET LIGHT
17	316538904 Frigidaire Oven Lamp Light
18	CONTROL-COLD
18A	WCI G107080
19	WCI G176722-01
19A	SWITCH SLIDE
20	TUBE
21	KNOB
22	5309918806 Frigidaire Refrigerator Light Switch Door
23	COVER-COIL
24	WCI G185303
25	WCI G185302
26	5300158289 Frigidaire Evaporator Fan Motor
27	RING, FAN ORIFICE
27A	NUT, ORIFICE (2)
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	WCI G490076-02
30	ROLLER-FRONT (2)
31	WCI R172173-03
32	240396801 Frigidaire Refrigerator Tube Clamp
33	WCI G162178
34	DEFLECTOR AIR
35	TROUGH-DRAIN
36	CLAMP, MULLION MOUNTING
37A	WASHER (2)
37	MULLION
37B	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
38	WCI G162973-34
39	COVER-CRISPER
40	WCI G187921
41	TUBE, INSULATION (2)
42	WCI G174734
43	WCI G174733
44	G187559 Frigidaire Refrigerator Bushing
45	ROLLER, REAR (2)
46	WCI G185266
47	COVER, TOP HINGE, AVOCADO
48	PAD, FOAM (2)
49	WCI G164571
