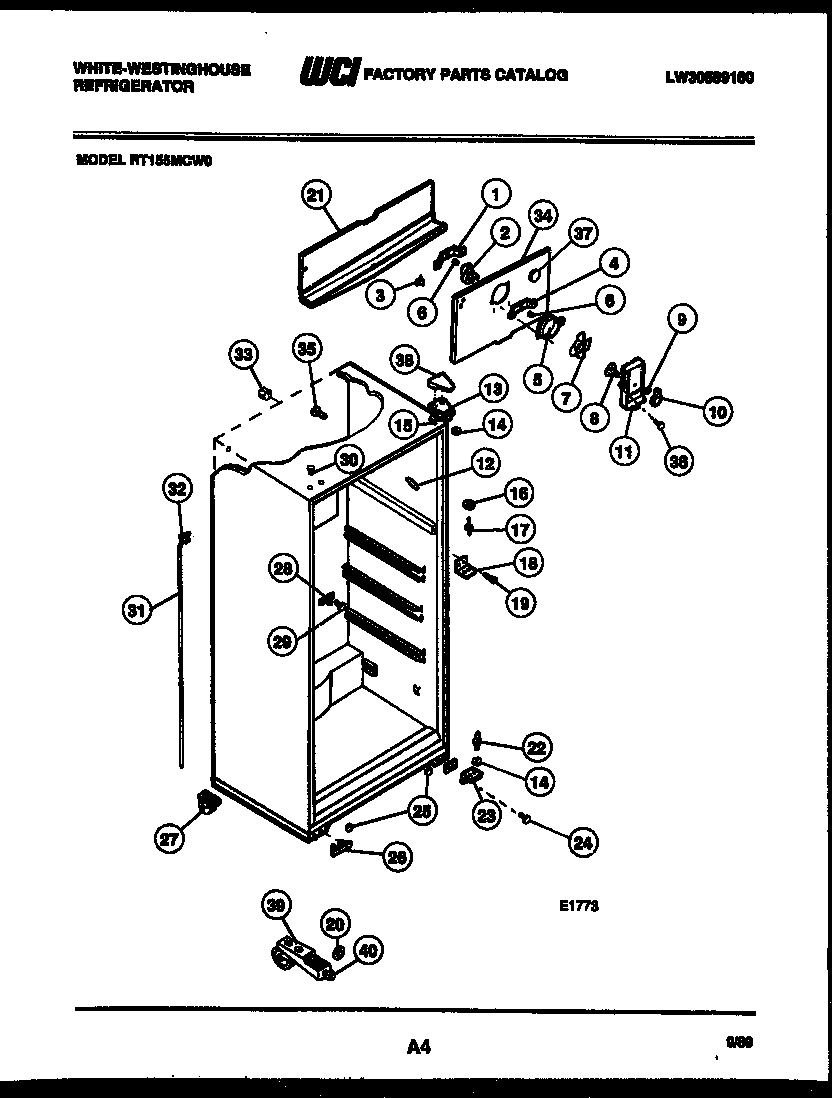

RT155MCW0 03 – CABINET PARTS

Products

Position	Product
*22095	TAPPING PLATE (2)
1	WCI 3001227
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI 3001226
5	RING, FAN ORIFICE
5A	5304455651 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3206110
9	NUT, DAMPER MOUNTING
10	WCI 3206109
11	FAN COVER
12	WCI 3202336
13	WCI 3206100
14	WCI G103903
15	WCI G183861
16	WASHER-CNTR HNGE
17	WCI G142220
18	BRACKET, HINGE CENTER
19	SCREW - MULLION (2)
20	WASHER
21	WCI 3206146
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	WCI 3206136
24	241710601 Frigidaire Refrigerator Screw
25	PLUG-BUTTON
26	WCI 3206135
27	WCI 3206237
28	WCI 08000056
29	PIN-PUSH
30	WCI G174747--01
31	TUBE-DEFROST DRAIN
32	RING-SEAL
33	TUBE, INSULATION (2)
34B	NUT, ORIFICE (2)
34	WCI 3206119
35	WCI G163669
36	5304455650 Frigidaire Refrigerator Screw
37	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
38	WCI 3206101
39C	5304500008 Frigidaire Oven Screw
39B	SPRING-ROLLER (2)
39A	ROLLER FRONT, ADJUSTABLE (2)
39	ROLLER-FRONT (2)
40	BOLT-ROLLER (2)
