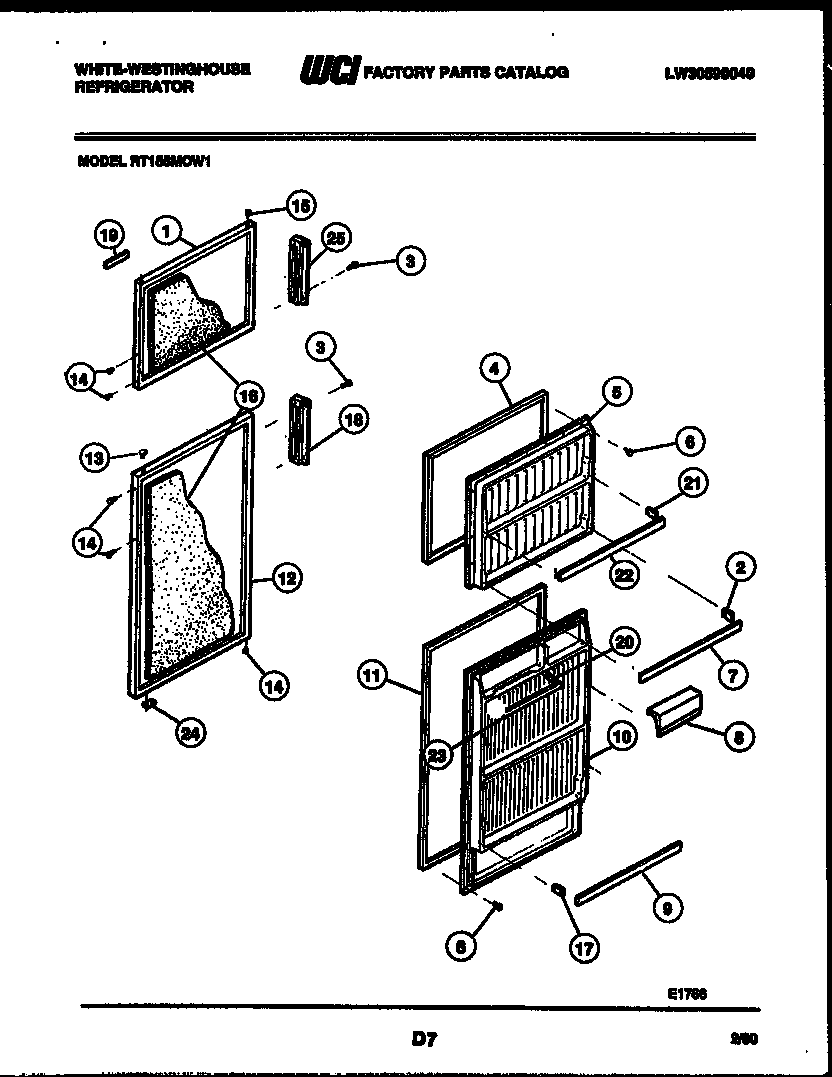

RT155MCW1 02 – DOOR PARTS

RT155MCW1 02 – DOOR PARTS

Written by

in

RT155MCW1 02 – DOOR PARTS

Products

PositionProduct
1WCI 3916563
2SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
2ASUPPORT-DOOR RACK, EXTENDS 1.06“, LH
4GASKET-FRZR DOOR, WHITE, MAGNETIC
5PANEL-INNER DOOR, FRZR
65304455651 Frigidaire Refrigerator Screw
7RACK-DOOR
8DOOR, DAIRY
9RACK-DOOR
10PANEL-INNER DOOR, REFR
11218730603 Frigidaire Door Gasket
12WCI 3916558
13BEARING-HINGE
14240494001 Frigidaire Refrigerator Plug Button
15WCI G169332-01
16INSULATION-BULK
17WCI 3206151
17AWCI 3206150
18HANDLE-DOOR
19WCI 3206159
20SUPPORT-DOOR RACK, EXTENDS .56“, RH
20ASUPPORT-DOOR RACK, EXTENDS .56“, LH
213206165 Frigidaire Bar Endcap Right Hand
21A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
22RACK-DOOR, NARROW
23RACK-DOOR, SHORT
24ASCREW-DOOR STOP (2) (NON-ILLUSTRATED)
24DOOR STOP (2)
25HANDLE-DOOR
