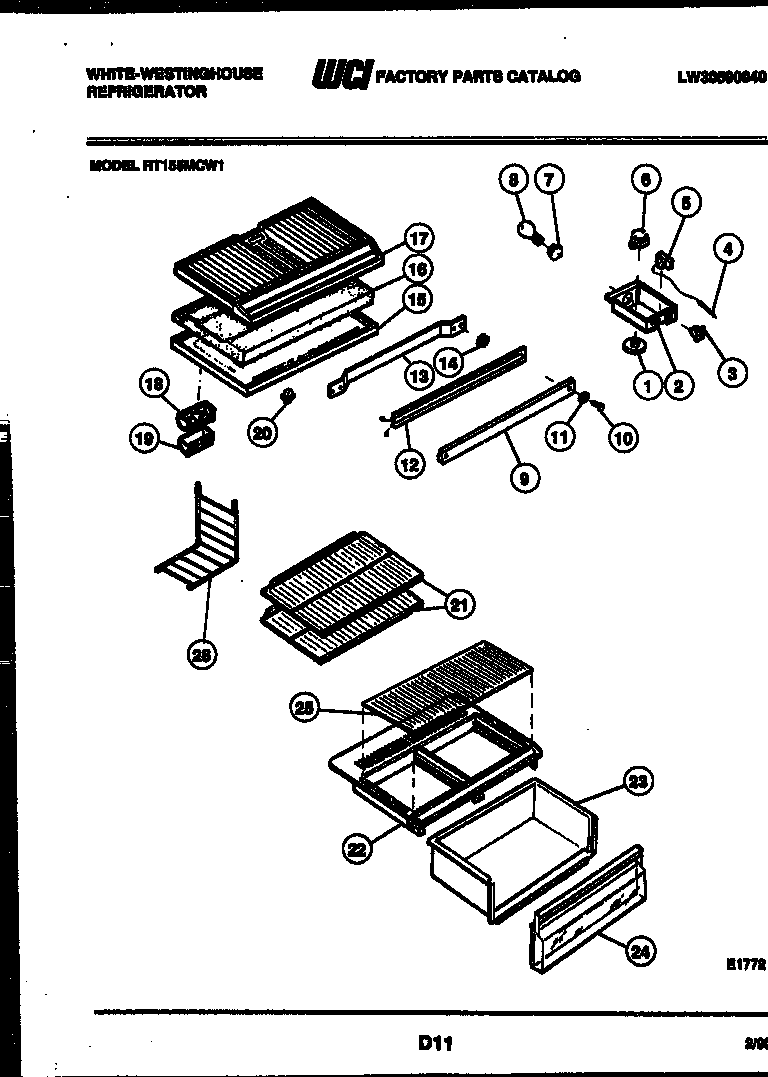

RT155MCW1 04 – SHELVES AND SUPPORTS

Products

Position	Product
*25307	SCREW-SUPPORT (2)
*25307	WCI 3001562
*25307	5304455852 Frigidaire Refrigerator Screw
*25308	WCI G186773
*25308	3205266 Frigidaire Refrigerator Edge Protector
*25307	SUPPORT-SHELF (2)
1	KNOB-TEMP CONTROL
2	WCI 3206130
2A	5304455650 Frigidaire Refrigerator Screw
3	WCI 3206129
4	WCI 3018891
5A	WCI G107080
5	CONTROL-TEMPERATURE
6A	5304455649 Frigidaire Refrigerator Screw
6	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7	218906802 Frigidaire Light Lamp Socket
8	316538904 Frigidaire Oven Lamp Light
9	WCI 3206121
10	SCREW - MULLION (2)
11	WASHER (2)
12	WCI 3206120
13	WCI 5303207247
14	WCI 5303206753
15A	SCREW (5)
15	WCI 3206128
16A	HARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
16	WCI 3206131
17	WCI 3206132
18	WCI 3204206
19	COVER - AIR DEFLECTOR
20	5309918806 Frigidaire Refrigerator Light Switch Door
21	WCI 3206099
22	COVER-CRISPER PAN, WITH BEAM, LESS INSERT
23	5303285386 Frigidaire Refrigerator Crisper Pan
24	WCI 3206106
25	WCI 3206111
26	WCI 3001570
