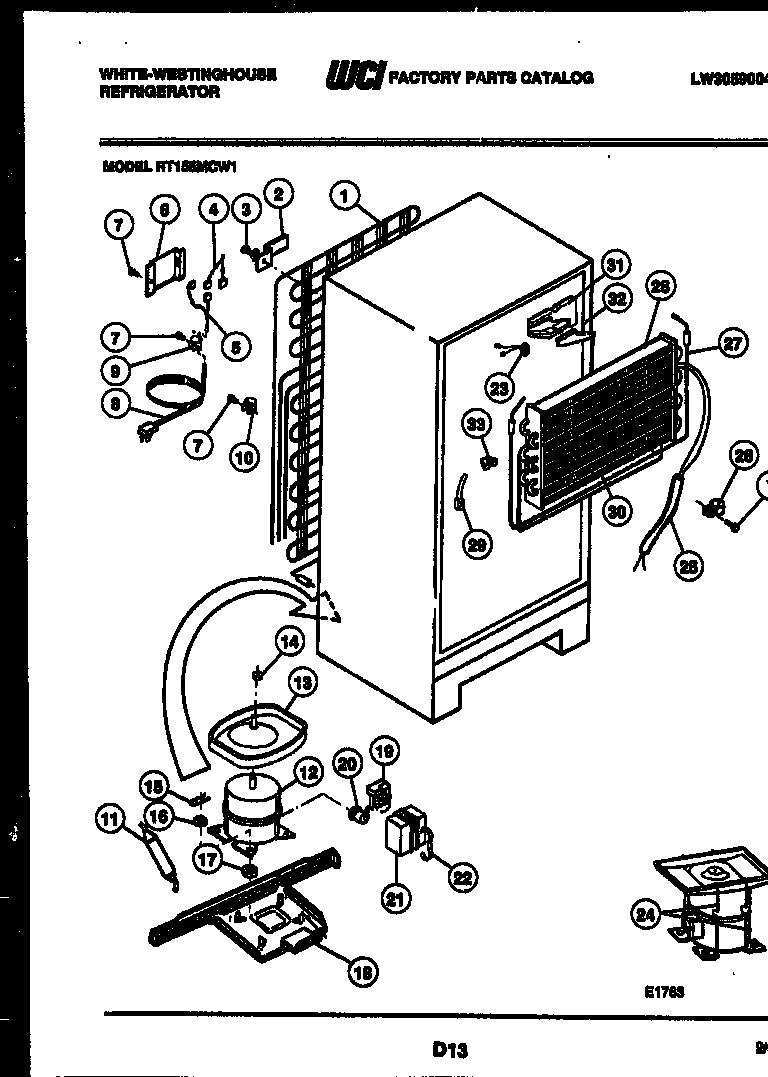

RT155MCW1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*25315	WCI 3916557
1	WCI G178225
2A	WASHER
2	BRACKET-CONDENSER MOUNTING (4)
3	5308000039 Frigidaire Refrigerator Screw
4	HARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
5	WIRING HARNESS-COMPRESSOR
6	WCI 3001197
7	5304455651 Frigidaire Refrigerator Screw
8	CORD, SERVICE
9	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
10	240396801 Frigidaire Refrigerator Tube Clamp
11	5303305677 Frigidaire Replacement Filter Dryer Filters
12	WCI 5303916020
13A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
13	DEFROST PAN & NUT
14	NUT, LOCK
15	CLIP, COMPRESSOR MOUNTING (4)
16	WASHER, COMPRESSOR MOUNTING (4)
17	218513300 Frigidaire Refrigerator Compressor Mount Grommet
18A	5304500008 Frigidaire Oven Screw
18	WCI 3206126
19	216594300 Frigidaire Refrigerator Starter
22	5303006412 Frigidaire Refrigerator Cover Mounting Strap
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	PAN RETAINER KIT-SERVICE
25	WCI 08000728
27	WCI 08009754
28	EVAPORATOR
29	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
30	INSULATOR-EVAP, PLASTIC
31	BLOCK, EVAPORATOR, RH
32	PLUG, EVAPORATOR INSULATION BLOCK, R H
33	BLOCK, LEFT SIDE
