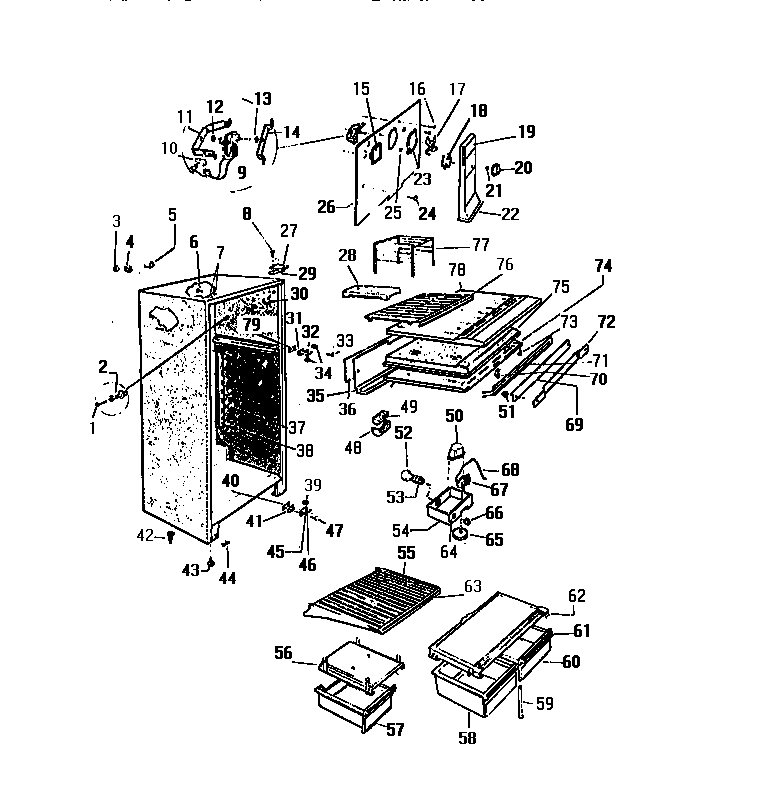

RT156HCD0 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

PositionProduct
*57209COVER, TOP HINGE, ALMOND
*57217TRIM CORNER-ALMOND
*57219TAPE, DBLE SIDE
*57220HARNESS, WIRING
*57206WCI G174747-11
1SCREW – SUPPORT TO LINER (8)
2SUPPORT, SHELF (8)
3WCI G174733
4WCI G174734
5TUBE, INSULATION (2)
6WCI G163669
8241710601 Frigidaire Refrigerator Screw
95300158289 Frigidaire Evaporator Fan Motor
10WCI G164571
11WCI G185303
13BUTTON, LINER
14WCI G185302
15PLUG, DECORATIVE
175308000010 Frigidaire Refrigerator Evaporator Fan Blade
18DAMPER FAN COVER
19WCI G180184
20WCI G162663-13
21NUT, DAMPER MOUNTING
22WCI G490076-02
23RING, FAN ORIFICE
24218843801 Frigidaire Refrigerator Screw
25NUT, ORIFICE (2)
26COVER-COIL
27AWCI G103903
27BRACKET, TOP HINGE
28ICE TRAY
29WCI G183861
30TRIM (4)
31BRACKET, HINGE CENTER
32WCI G142220
33SCREW, BRACKET MOUNTING (4)
35TROUGH-DRAIN
36INSULATOR
37CHANNEL, SHELF (2)
385304455852 Frigidaire Refrigerator Screw
39WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
40TAPPING, PLATE (2)
41SHIM, HINGE
42CLIP (4)
43ANUT, ANCHOR (2)
43LEG-LEVELING (2)
44WCI G166912
455303001321 Frigidaire Refrigerator Lower Hinge Pin
46BRACKET, HINGE, LOWER
48WCI G162178
49DEFLECTOR AIR
50215846604 Frigidaire Refrigerator Defrost Timer
51SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
51AWASHER (2)
52WCI Q63749
53SOCKET LIGHT
54WCI G176722-01
55WCI R900975
56WCI R177471-03
57WCI R177470-02
59SUPPORT, CRISPER COVER
60PAN, CRISPER
61WCI G177343-03
62COVER-CRISPER
64WCI G180197
65KNOB
66WCI G178402-02
67CONTROL-COLD
68TUBE
69WCI C174520-11
705309918806 Frigidaire Refrigerator Light Switch Door
71WCI G187921
72CLAMP, MULLION MOUNTING
73SCREW (5)
74TOP-REFRIGERATOR
75DIVIDER-COMPARTMENT
76WCI R177415-05
76ATRIM
775303282284 Frigidaire Wire Shelf
78WCI Q162857
79SHIM, HINGE
