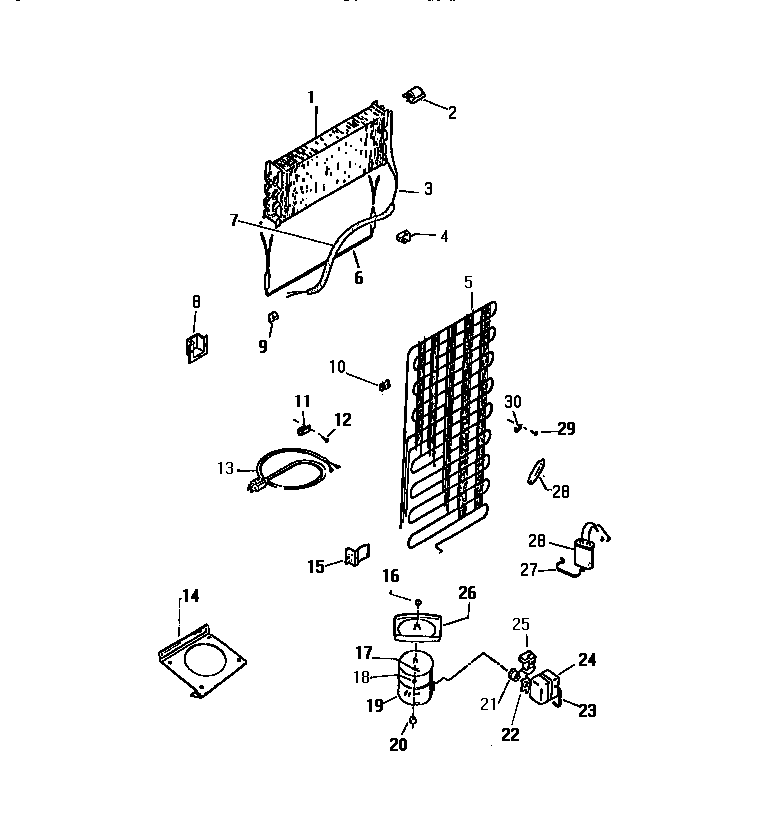

RT156HCH1 04 – COOLING SYSTEMadmin2025-04-26T08:47:28+00:00RT156HCH1 04 – COOLING SYSTEM
Products
| Position | Product |
|---|
| *57211 | SOUND DEADENER |
| *57221 | HARNESS-COMPRESSOR |
| *57212 | WCI G176210 |
| *57210 | HOT TUBE REPAIR KIT (NON-ILLUSTRATED) |
| 1 | WCI G164563 |
| 2 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 3 | WCI G163389 |
| 4 | BLOCK, EVAPORATOR, RH |
| 4A | PLUG, EVAPORATOR INSULATION BLOCK, R H |
| 5 | WCI G178225 |
| 6 | WCI G162432-02 |
| 7 | WCI G125963-68 |
| 8 | WCI G183584 |
| 9 | BLOCK, EVAPORATOR, LH |
| 10 | WCI G165129 |
| 11 | 5303001199 Frigidaire Refrigerator Wiring Harness Clamp |
| 12 | WCI G171085 |
| 13 | CORD, SERVICE |
| 14 | WCI G162822 |
| 15 | BRACKET-CONDENSER MOUNTING (4) |
| 16 | NUT, LOCK |
| 17 | CLIP, COMPRESSOR MOUNTING (4) |
| 18 | WASHER, COMPRESSOR MOUNTING (4) |
| 19 | COMPRESSOR W/ELECT. |
| 20 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 21 | WCI G185797 |
| 22 | WCI C166053 |
| 23 | STRAP-COVER |
| 24 | WCI G185792 |
| 25 | WCI G182225-12 |
| 26 | DEFROST PAN |
| 27 | STRAP-CAPACITOR |
| 28 | WCI G188885-01 |
| 28 | DRIER-REGULAR |
| 28 | WCI R900125 |
| 29 | 218843801 Frigidaire Refrigerator Screw |
| 30 | WCI G101747 |
