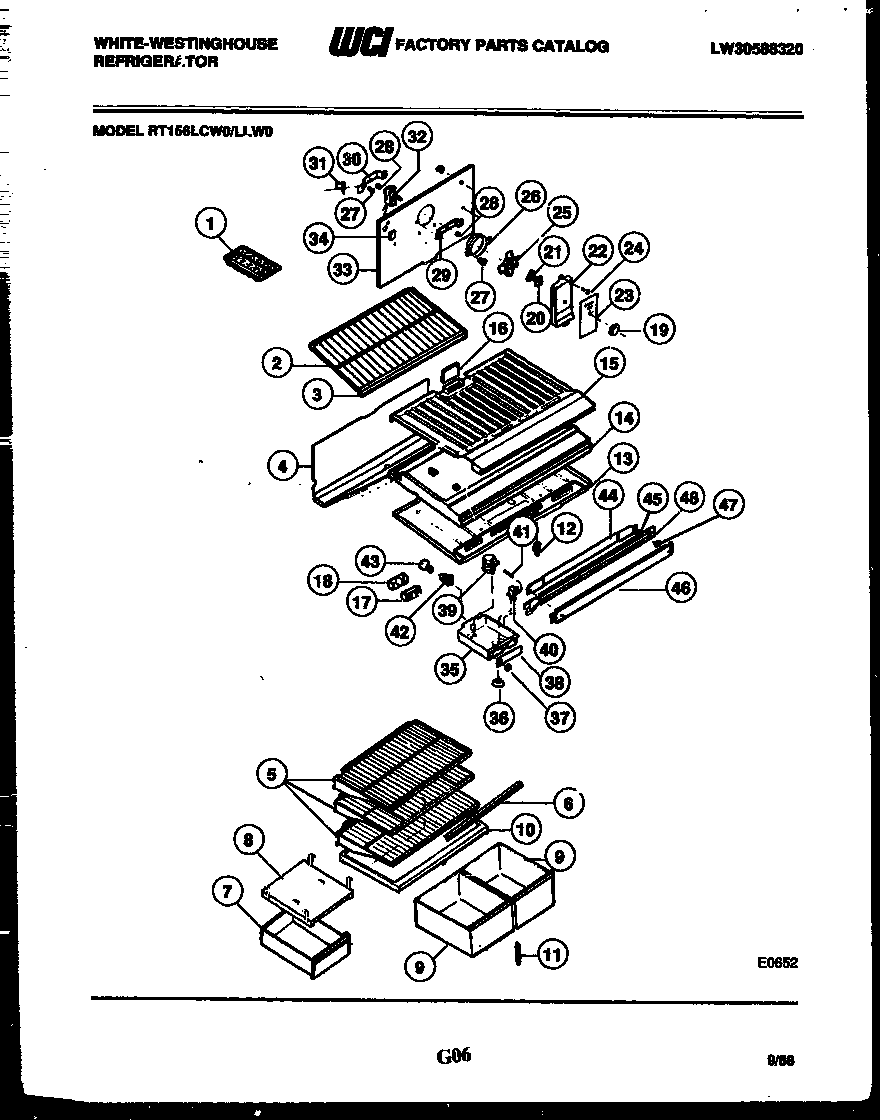

RT156LCF0 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	215667501 Frigidaire Refrigerator Ice Tray Primary
2	WCI G177415-05
3	WCI 3016690
4	TROUGH-DRAIN
5	WCI 3018194
6	WCI 3018195
8	WCI R177471-03
9	PAN, CRISPER
10	COVER-CRISPER
11	SUPPORT, CRISPER COVER
12	5309918806 Frigidaire Refrigerator Light Switch Door
13	TOP-REFRIGERATOR
13A	SCREW (5)
14	DIVIDER-COMPARTMENT
14A	HARNESS, WIRING
15	BOTTOM ( FREEZER )
16	PAD, FOAM (2)
17	WCI G162178
18	DEFLECTOR AIR
19	WCI G162633-15
20	NUT, DAMPER MOUNTING
21	DAMPER FAN COVER
22	WCI G490076-02
23	WCI G180184
25	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
26	RING, FAN ORIFICE
27	5304455651 Frigidaire Refrigerator Screw
28	G187559 Frigidaire Refrigerator Bushing
29	WCI G185302
30	WCI G185303
31	WCI G164571
32	5300158289 Frigidaire Evaporator Fan Motor
33	COVER-COIL
33B	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
33A	NUT, ORIFICE (2)
34	WCI 3018193
35A	PLUG-TIMER ACCESS (NON-ILLUSTRATED)
35B	5304455650 Frigidaire Refrigerator Screw
35	WCI G176722-01
36	KNOB
37	WCI G178402-02
38	WCI G180197
39A	5304455649 Frigidaire Refrigerator Screw
39	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
40A	WCI G107080
40	CONTROL-COLD
41	TUBE
42	SOCKET LIGHT
43	316538904 Frigidaire Oven Lamp Light
44	CLAMP, MULLION MOUNTING
45	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
47	WASHER (2)
47A	SCREW, BRACKET MOUNTING (4)
48	WCI G187921
