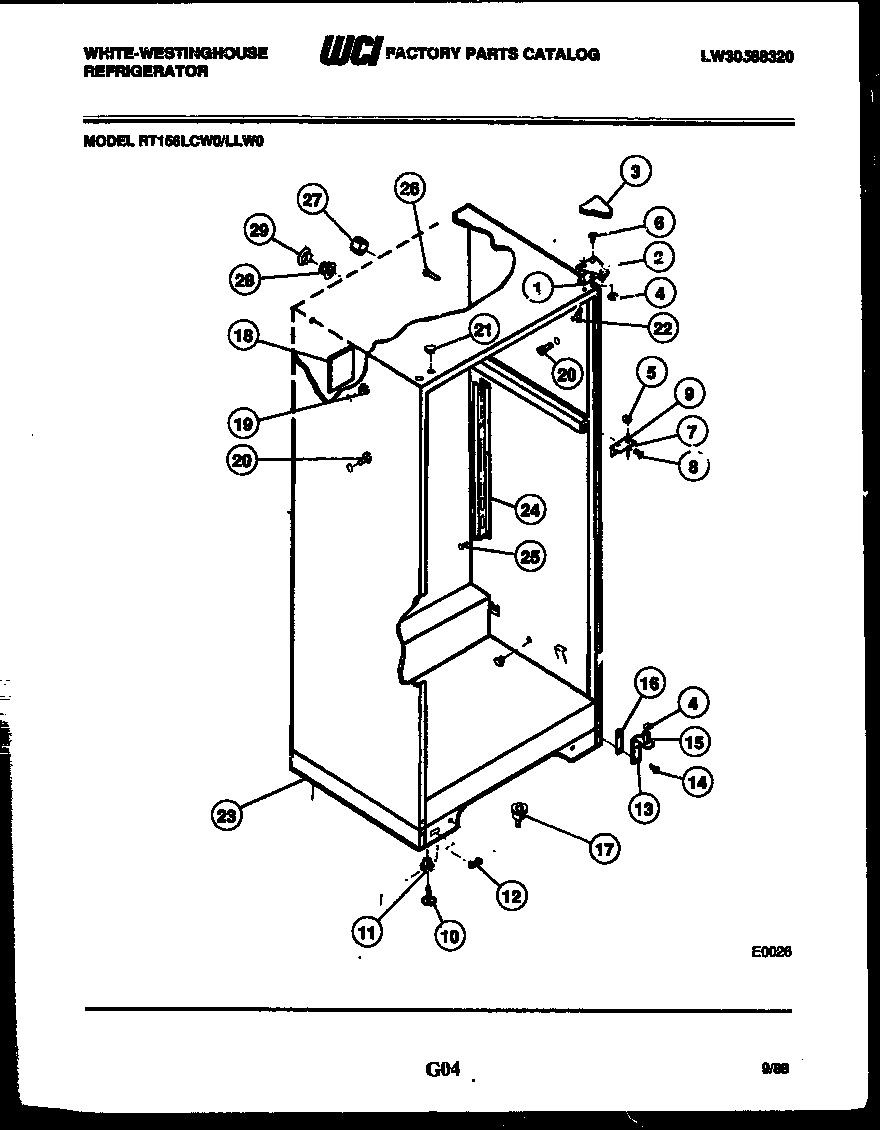

RT156LCW0 03 – CABINET PARTS

Products

Position	Product
1	WCI G183861
2	BRACKET, TOP HINGE
3	COVER HINGE, WHITE
4	WCI G103903
5	WASHER, NYLON
6	241710601 Frigidaire Refrigerator Screw
7	BRACKET, HINGE CENTER
8A	WASHER (2)
8	WCI G180103
8B	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
9	WCI G142220
10	LEG-LEVELING (2)
11	NUT, ANCHOR (2)
12	WCI G166912
13	BRACKET, HINGE, LOWER
14A	TAPPING, PLATE (2)
15	5303001321 Frigidaire Refrigerator Lower Hinge Pin
16	SHIM, HINGE
17	CLIP (4)
18	WCI 3018193
19	BUTTON, LINER
20	SUPPORT, SHELF (8)
20A	SCREW-SUPPORT MOUNTING (4) (NON-ILLUSTRATED)
21	WCI G174747–01
22	TRIM (4)
23	BASE-CABINET
24	CHANNEL, SHELF (2)
25	5304455852 Frigidaire Refrigerator Screw
26	WCI G163669
27	TUBE, INSULATION (2)
28	WCI G174733
29	WCI G174734
