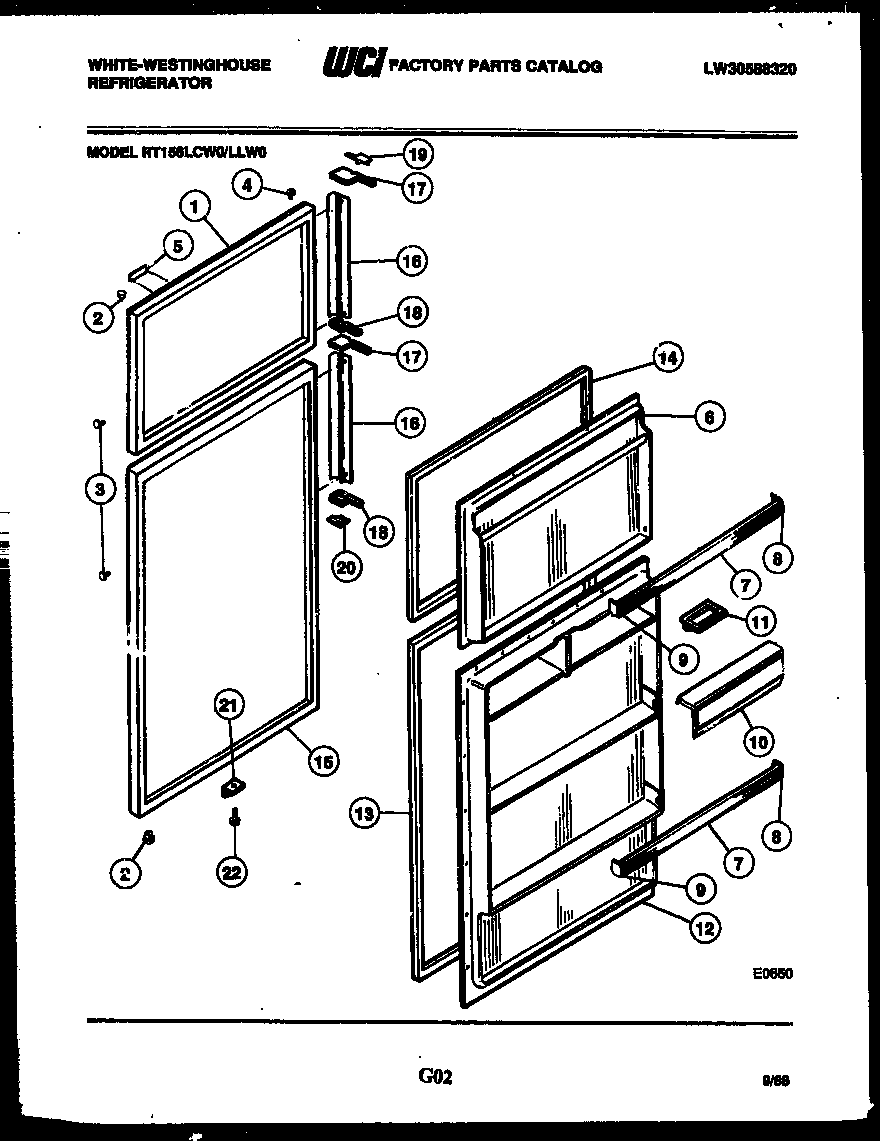

RT156LLV0 02 – DOOR PARTS

Products

Position	Product
*16673	WCI G89643
1	WCI 3916219
2	BEARING, HINGE (3)
3	WCI G162977-08
4	WCI G169332-08
5A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
5B	LABEL-NAMEPLATE (NON-ILLUSTRATED)
5	FRAME-NAMEPLATE
6	WCI G186463-01
7	WCI G490079-19
8	SUPPORT-RACK RH (3)
9	SUPPORT-RACK LH (3)
10	WCI G179967-02
10A	DOOR-DAIRY
11	5308000716 Frigidaire Refrigerator Dish
12A	5304455651 Frigidaire Refrigerator Screw
12	WCI G186469-01
13	GASKET-REFRIGERATOR
14	GASKET-FREEZER
15	WCI 3916224
16	HANDLE
17	CAP
18	CAP
19	TRIM, TOP
20	TRIM, BTM
20A	CLIP
21	STOP, DOOR. PC & FC (2)
22	WCI G185566
