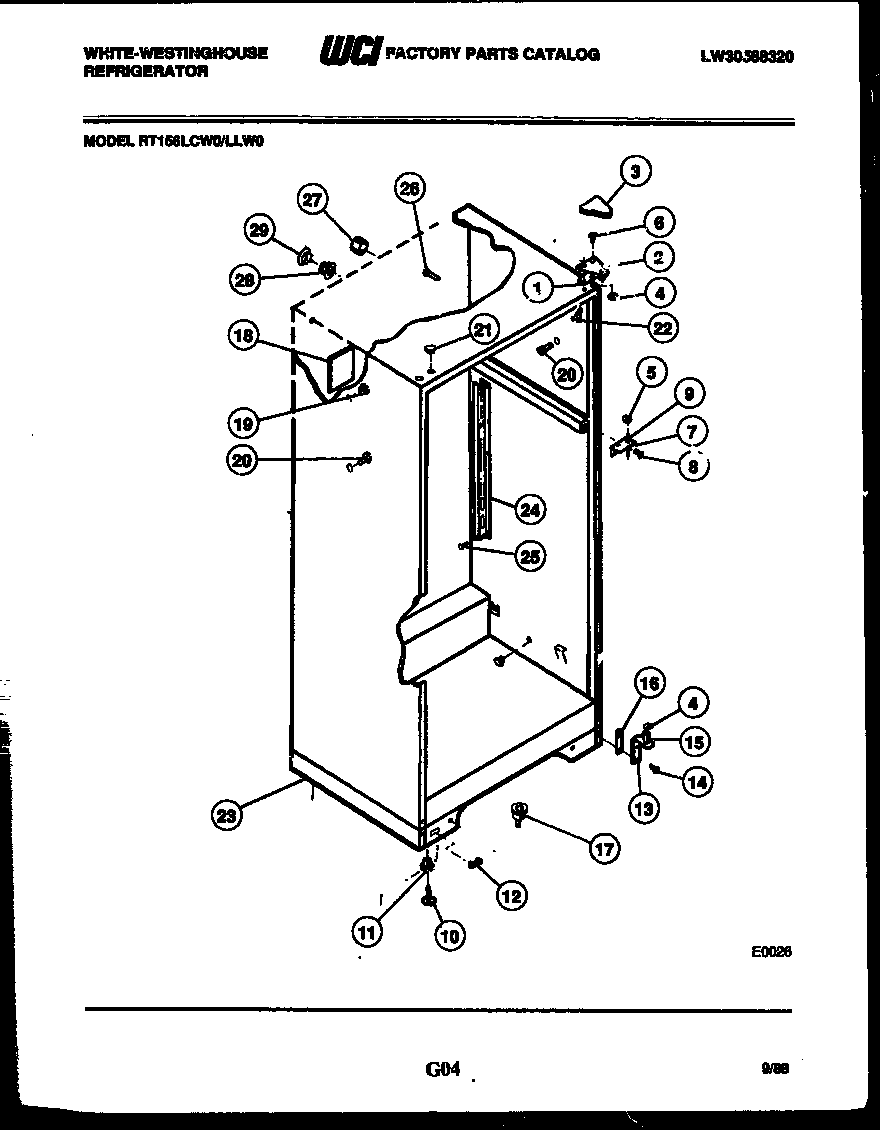

RT156LLW0 03 – CABINET PARTSadmin2025-04-26T08:47:37+00:00RT156LLW0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | WCI G183861 |
| 2 | BRACKET, TOP HINGE |
| 3 | COVER HINGE, WHITE |
| 4 | WCI G103903 |
| 5 | WASHER, NYLON |
| 6 | 241710601 Frigidaire Refrigerator Screw |
| 7 | BRACKET, HINGE CENTER |
| 8A | WASHER (2) |
| 8 | WCI G180103 |
| 8B | SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED) |
| 9 | WCI G142220 |
| 10 | LEG-LEVELING (2) |
| 11 | NUT, ANCHOR (2) |
| 12 | WCI G166912 |
| 13 | BRACKET, HINGE, LOWER |
| 14A | TAPPING, PLATE (2) |
| 15 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 16 | SHIM, HINGE |
| 17 | CLIP (4) |
| 18 | WCI 3018193 |
| 19 | BUTTON, LINER |
| 20 | SUPPORT, SHELF (8) |
| 20A | SCREW-SUPPORT MOUNTING (4) (NON-ILLUSTRATED) |
| 21 | WCI G174747--01 |
| 22 | TRIM (4) |
| 23 | BASE-CABINET |
| 24 | CHANNEL, SHELF (2) |
| 25 | 5304455852 Frigidaire Refrigerator Screw |
| 26 | WCI G163669 |
| 27 | TUBE, INSULATION (2) |
| 28 | WCI G174733 |
| 29 | WCI G174734 |
