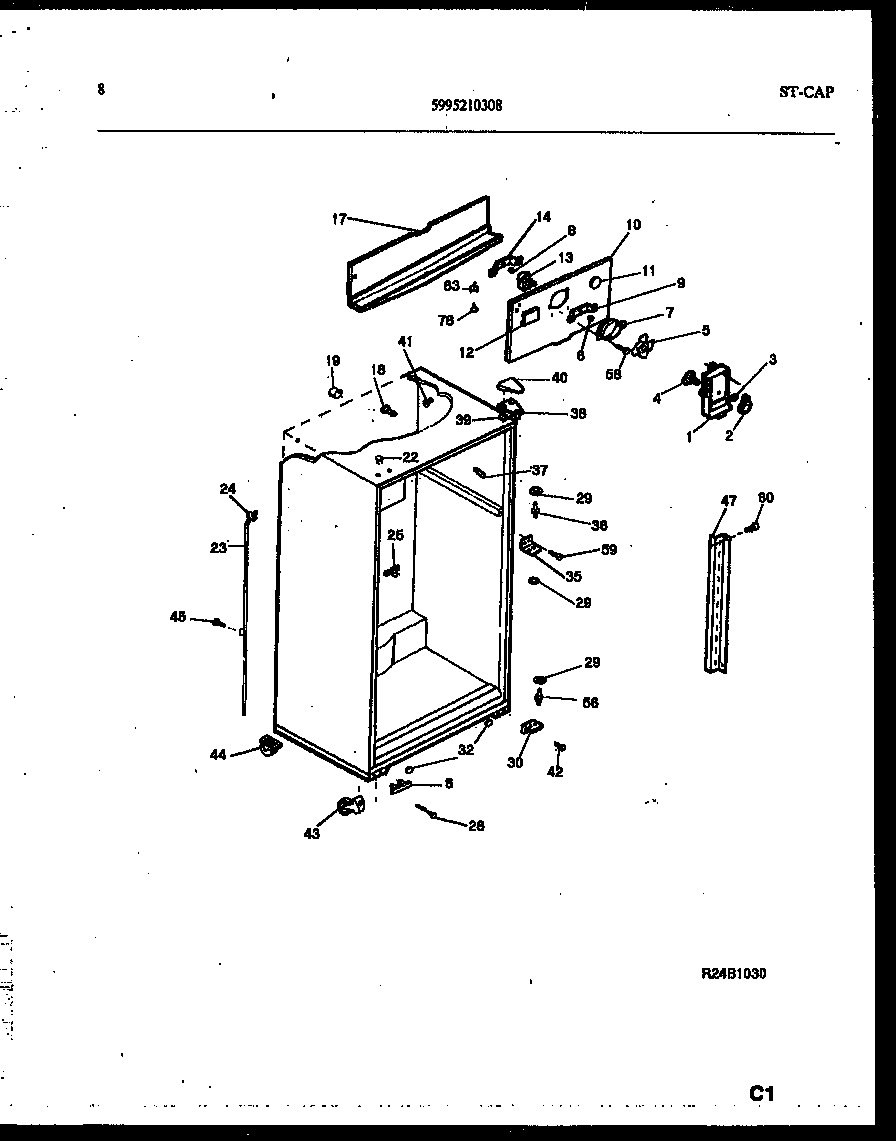

RT156NCD0 05 – CABINET PARTS

Products

Position	Product
*50898	PLUG, BUTTON, CABINET LINER (NI)
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	WCI 3206100
39	SHIM – UPPER HINGE
40	WCI 3206105
41	5304509705 Frigidaire Refrigerator Grommet
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	241710601 Frigidaire Refrigerator Screw
43C	WCI 5308011326
43B	WCI 5308009790
43A	WCI 5308009760
43	WCI 5300188673
44	WCI 3206237
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 3206202
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	SCREW – MULLION (2)
60	5304455852 Frigidaire Refrigerator Screw
83	WCI 5308000107
