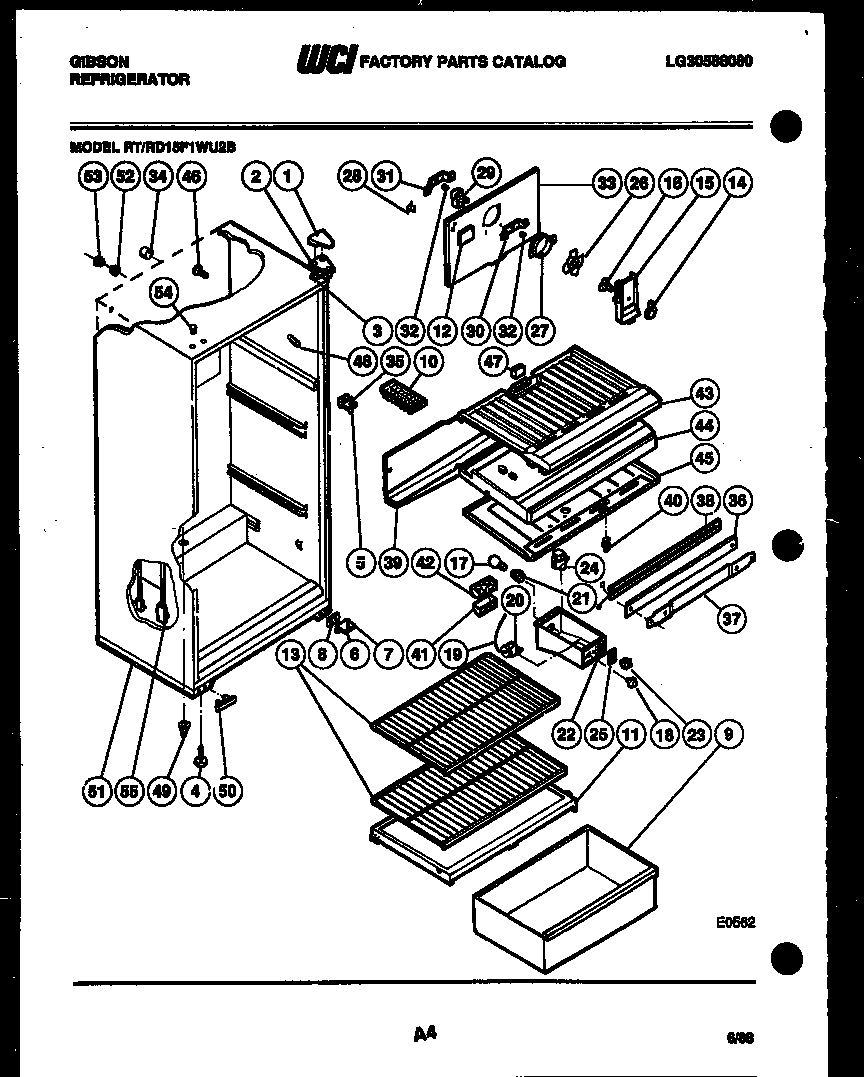

RT15F1WU2B 03 – CABINET PARTS

Products

Position	Product
*10270	TAPPING PLATE (2)
*10270	BUTTON, LINER
1	COVER HINGE, WHITE
1	COVER HINGE, COFFEE
1	COVER, TOP HINGE, AVOCADO
1	COVER, TOP HINGE, ALMOND
1	COVER HINGE, WHEAT
2	BRACKET, TOP HINGE
2A	241710601 Frigidaire Refrigerator Screw
3A	WCI G103903
3A	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
3	WCI G183861
4A	NUT, ANCHOR (2)
4	LEG-LEVELING (2)
5	WCI G142220
6	BRACKET, HINGE, LOWER
7	5303001321 Frigidaire Refrigerator Lower Hinge Pin
8	SHIM, HINGE
9	WCI G162973-31
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	COVER-CRISPER
12	BUTTON-DECORATIVE
13	SHELF (2)
14	KNOB-DAMPER
15	COVER-FAN
16A	NUT, DAMPER MOUNTING
16	DAMPER FAN COVER
17	316538904 Frigidaire Oven Lamp Light
18	KNOB
19	TUBE
20	CONTROL-COLD
20A	WCI G107080
21	SOCKET LIGHT
22	WCI G176722-03
22A	WCI G183060
23	WCI G178402-02
24A	5304455649 Frigidaire Refrigerator Screw
24	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25	WCI G188379-01
26	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
27	RING, FAN ORIFICE
28	WCI G164571
29	5300158289 Frigidaire Evaporator Fan Motor
30	WCI G185302
31	WCI G185303
32	G187559 Frigidaire Refrigerator Bushing
33A	COVER-COIL
34	TUBE, INSULATION (2)
35A	SCREW, BRACKET MOUNTING (4)
35	BRACKET, HINGE CENTER
36A	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
36	WCI G174520-08
36	WCI G174520-09
36	WCI G174520-10
36	MULLION
36B	WASHER (2)
37	CLAMP, MULLION MOUNTING
38	WCI G187921
39	TROUGH-DRAIN
40	5309918806 Frigidaire Refrigerator Light Switch Door
41	WCI G162178
42	DEFLECTOR AIR
43	BOTTOM ( FREEZER )
44	DIVIDER-COMPARTMENT
45A	SCREW (5)
45	TOP-REFRIGERATOR
46	WCI G163669
47	PAD, FOAM (2)
48	TRIM (4)
48	TRIM, WHEAT
48	WCI G162365-11
48	TRIM, COFFEE
48	TRIM-CAB CORNER-AVOC
49	CLIP (4)
50	WCI G166912
51	BASE-CABINET
52	WCI G174733
53	WCI G174734
54	WCI G171747-11
54	WCI G171747-10
54	WCI G174747-09
54	WCI G174747-08
54	WCI G174747--01
55	HARNESS, WIRING
