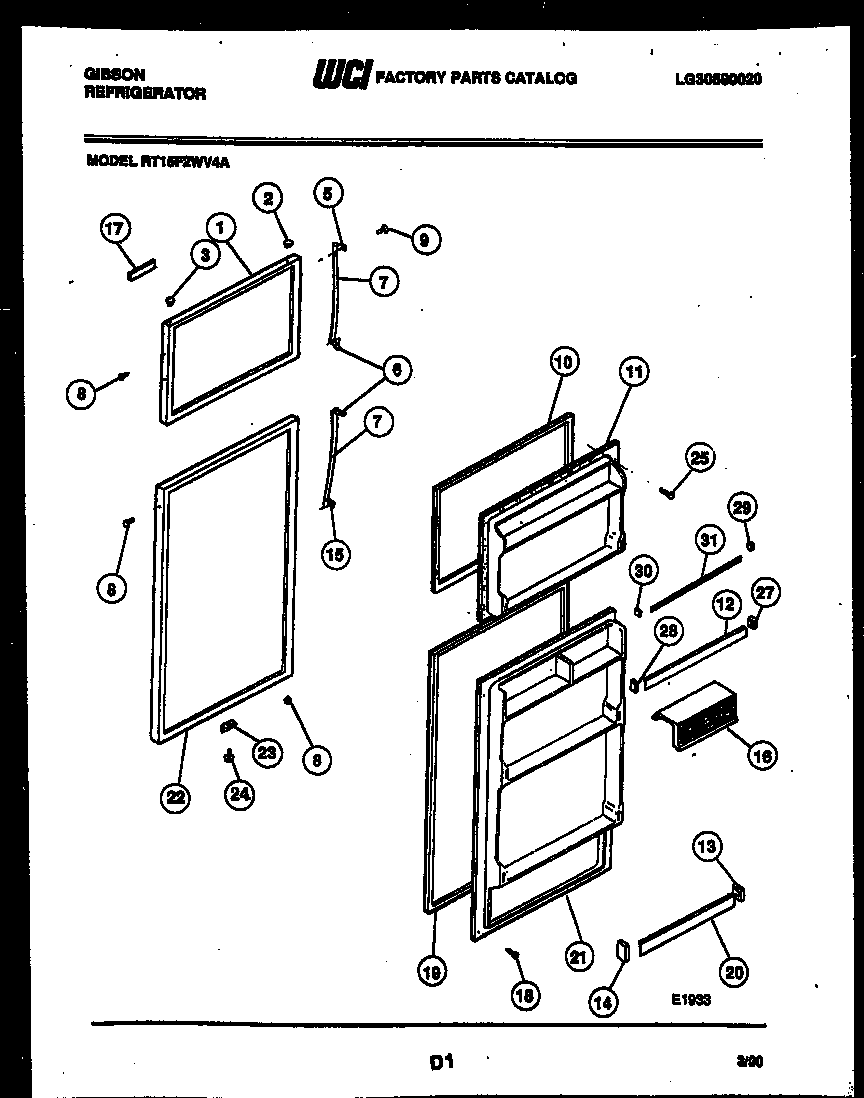

RT15F2WV4A 02 – DOOR PARTS

Products

PositionProduct
*31302INSULATION-BULK (NON-ILLUSTRATED)
1PANEL-FRZR DOOR, ALMOND
1WCI 5303916742
1WCI 5303916740
1PANEL-FRZR DOOR, WHEAT
1WCI 5303916739
2BUTTON-AVOCADO
2PLUG-BUTTON, WHITE, HINGE BRG HOLE
2BUTTON PLUG-COFFEE
2BUTTON-WHEAT
2PLUG-BUTTON, ALMOND, HINGE BRG HOLE
3BEARING-HINGE
5WCI 5303001297
6WCI 5303001296
7HANDLE-FRZR DOOR
8PLUG-BUTTON, ALMOND, HANDLE/DR STOP
8BUTTON-WHEAT
8BUTTON-AVOCADO
8BUTTON PLUG-COFFEE
8240494001 Frigidaire Refrigerator Plug Button
10WCI 5303001399
11WCI 5303209049
12RACK-FREEZER LOWER
13WCI 5303209047
14WCI 5303209048
15WCI 5300179801
16AWCI 5303209043
16WCI 5303209076
17BLABEL UPPER
17ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
17NAMEPLATE
19218730603 Frigidaire Door Gasket
20WCI 5303209075
21WCI 5303209042
22PANEL-REFR DOOR, WHEAT
22WCI 5303916737
22WCI 5303916734
22WCI 5303916735
22PANEL-REFR DOOR, ALMOND
23WCI 5308000255
24WCI 5308011745
25218843801 Frigidaire Refrigerator Screw
27WCI 5303209051
28WCI 5303209053
293206165 Frigidaire Bar Endcap Right Hand
303206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
31WCI 5303209074
