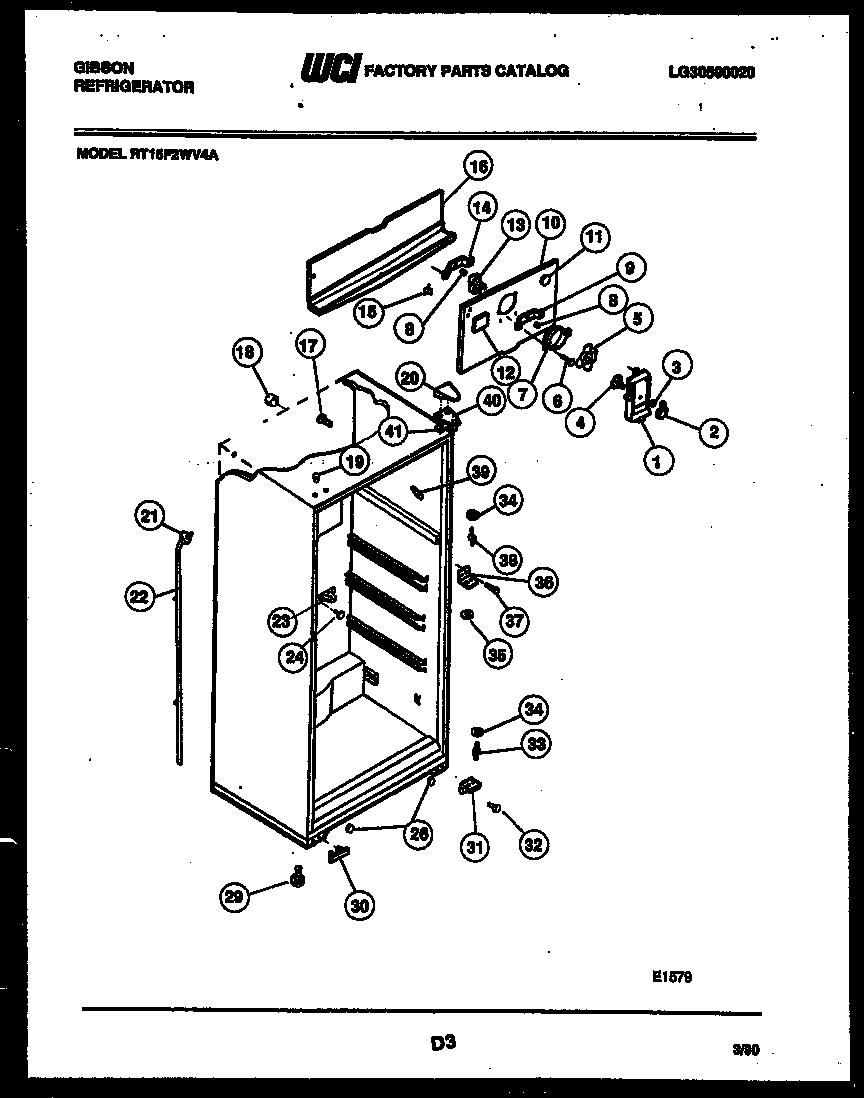

RT15F2WV4A 03 – CABINET PARTSadmin2025-04-26T08:47:37+00:00RT15F2WV4A 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *31314 | PLUG, BUTTON, CABINET LINER (NI) |
| *31314 | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 1A | WCI 5303209069 |
| 1 | WCI 5303209040 |
| 2 | WCI 5308000081 |
| 3 | Nut,push-on |
| 4 | WCI 3206110 |
| 5 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 7 | RING-FAN ORIFICE |
| 8 | G187559 Frigidaire Refrigerator Bushing |
| 9 | WCI 5303001226 |
| 10A | NUT-SPEED (2) |
| 10 | WCI 3206119 |
| 10B | 5304455650 Frigidaire Refrigerator Screw |
| 11 | WCI 5303203044 |
| 12 | BUTTON - DECORATIVE PLUG |
| 13 | 5300158289 Frigidaire Evaporator Fan Motor |
| 14 | WCI 5303001227 |
| 15A | 218843801 Frigidaire Refrigerator Screw |
| 15 | WCI 5308000107 |
| 16 | WCI 3206146 |
| 17 | SUPPORT-COIL COVER |
| 18 | TUBE-RUBBER |
| 19 | BUTTON-HINGE-WHEAT |
| 19 | PLUG-BUTTON, WHITE |
| 19 | PLUG, COFFEE |
| 19 | BUTTON-HINGE-AVOCADO |
| 19 | PLUG-BUTTON, ALMOND, UPR HINGE HOLES |
| 20 | COVER - TOP HINGE - AVOCADO |
| 20 | WCI 3206101 |
| 20 | WCI 3206105 |
| 20 | COVER-TOP HINGE-COFFEE |
| 20 | COVER-UPPER HINGE, WHEAT |
| 21 | SEAL RING-DRAIN TUBE |
| 22A | 5304455651 Frigidaire Refrigerator Screw |
| 22 | TUBE-DEFROST DRAIN |
| 23 | WCI 5308000056 |
| 24 | WCI 5303001361 |
| 26 | PLUG-BUTTON |
| 29 | SCREW-LEVELING, (2) |
| 30 | WCI 3206135 |
| 31 | WCI 3206136 |
| 33 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 34 | WASHER, .34 X .62 X .05, NYLON |
| 35 | WCI 5308000186 |
| 36 | BRACKET-CTR HINGE |
| 37 | SCREW - MULLION (2) |
| 38 | WCI 5308000184 |
| 39 | TRIM-CABINET CORNER, WHITE |
| 39 | WCI 5303202338 |
| 39 | CORNER |
| 39 | TRIM-CABINET CORNER, ALMOND |
| 39 | WCI 5303202339 |
| 40A | 241710601 Frigidaire Refrigerator Screw |
| 40 | WCI 3206100 |
| 41 | SHIM - UPPER HINGE |
