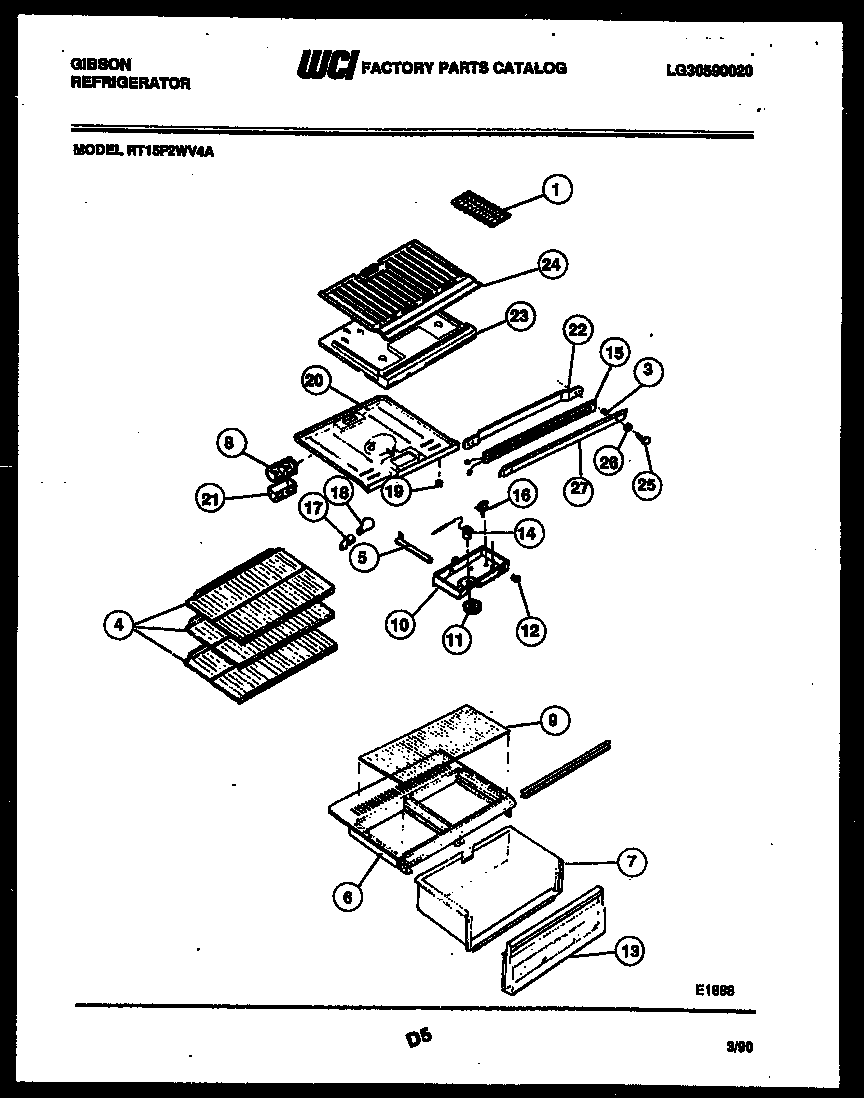

RT15F2WV4A 04 – SHELVES AND SUPPORTS

RT15F2WV4A 04 – SHELVES AND SUPPORTS

Written by

in

RT15F2WV4A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1215667501 Frigidaire Refrigerator Ice Tray Primary
3WCI 5303206753
4WCI 5303209077
5WCI 3018891
6COVER-CRISPER PAN, WITH BEAM, LESS INSERT
75303285386 Frigidaire Refrigerator Crisper Pan
8WCI 3204206
9WCI 3206111
10WCI 5303206574
10A5304455650 Frigidaire Refrigerator Screw
11WCI 5303201777
12SWITCH-ROCKER
13WCI 5303209070
14WCI 5303018894
14WCI 5303001260
15WCI 3206120
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20WCI 3206128
20AWCI 5303001380
21COVER – AIR DEFLECTOR
22WCI 5303207247
23WCI 3206131
23B3205266 Frigidaire Refrigerator Edge Protector
23AHARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
24WCI 3206132
25SCREW – MULLION (2)
26WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
27WCI 3206125
27WCI 3206121
27WCI 3206122
27WCI 3206124
27WCI 3206123
