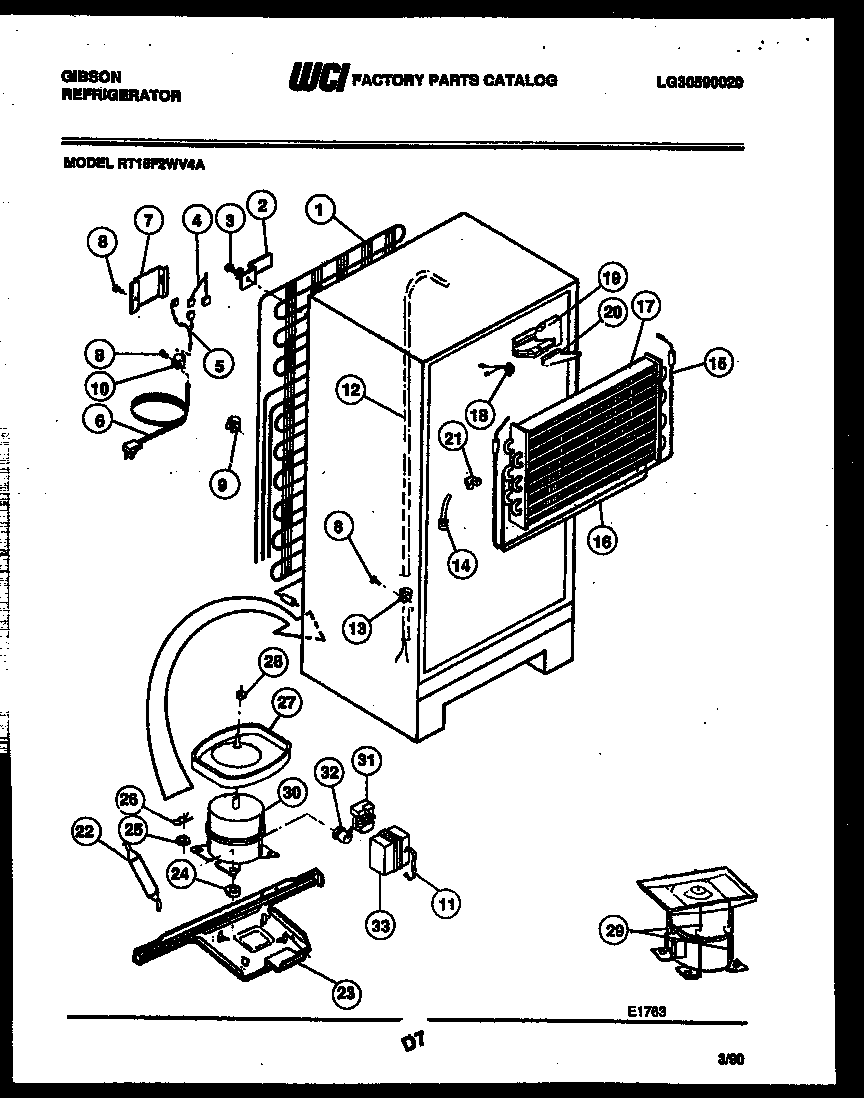

RT15F2WV4A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

RT15F2WV4A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RT15F2WV4A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*31329WCI 3916557
1WCI 5303001341
2BRACKET-MTG (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
35308000039 Frigidaire Refrigerator Screw
4HARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
5WIRING HARNESS-COMPRESSOR
6CORD-ELECTRIC POWER
7WCI 5303001197
8WCI 5308001343
105303001199 Frigidaire Refrigerator Wiring Harness Clamp
115303006412 Frigidaire Refrigerator Cover Mounting Strap
12WCI 5308000728
135308000133 Frigidaire Refrigerator Clamp
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15WCI 5308009754
16INSULATOR-EVAP, PLASTIC
17EVAPORATOR
185303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19INSULATION BLOCK, RH
20INSULATION PLUG, RH
21INSULATION BLOCK, LH
225303305677 Frigidaire Replacement Filter Dryer Filters
23WCI 3206126
23A5304500008 Frigidaire Oven Screw
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WASHER-COMPR MTG
26CLIP – COMPRESSOR MTG
27A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27PAN-DEFROST DRAIN, ORIG/SVCE COMPR
28Nut,lock `1/4-20 ,drain pan mtg
29PAN RETAINER KIT, SERVICE
30WCI 5303916020
31216594300 Frigidaire Refrigerator Starter
