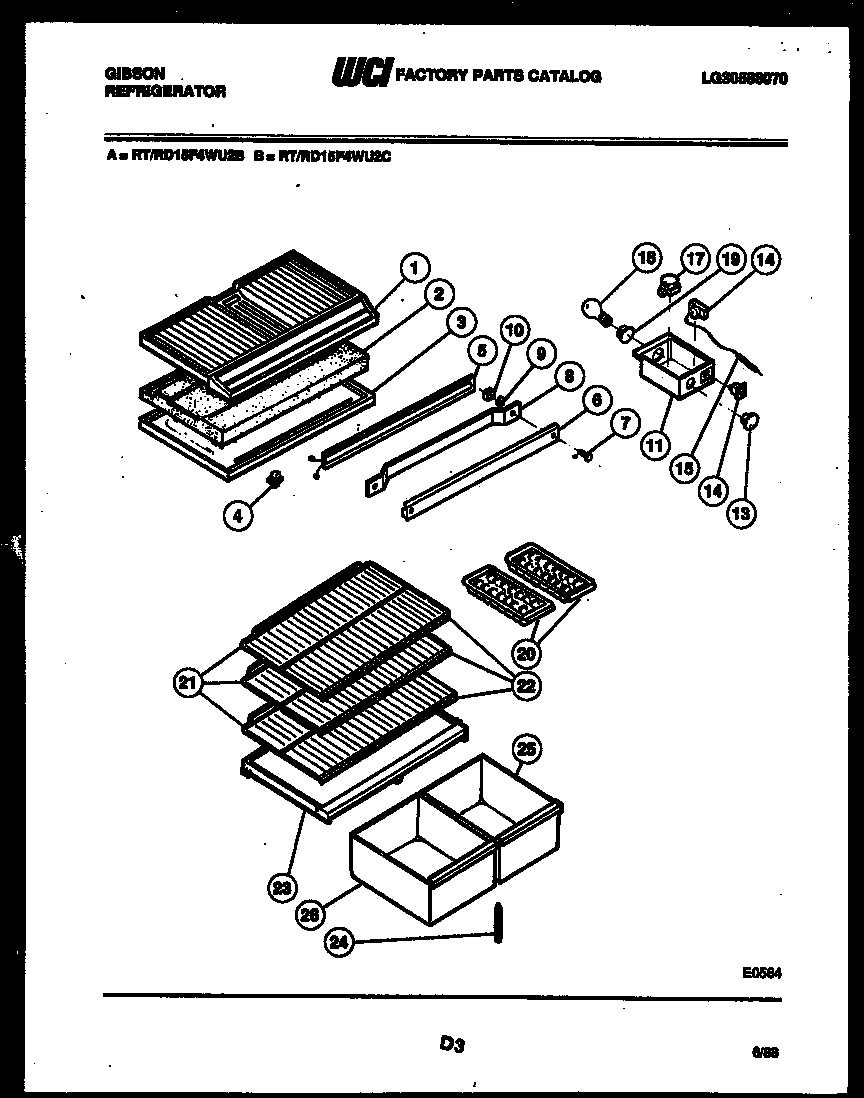

RT15F4WU2B 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1BOTTOM ( FREEZER )
2DIVIDER-COMPARTMENT
2AHARNESS, WIRING
3TOP-REFRIGERATOR
3ASCREW (5)
45309918806 Frigidaire Refrigerator Light Switch Door
5WCI G187921
6WCI G174520-11
6WCI G174520-08
6WCI G174520-09
6WCI G174520-10
6MULLION
7SCREW, BRACKET MOUNTING (4)
8CLAMP, MULLION MOUNTING
9WASHER (2)
10SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
11WCI G176722-03
11B5304455650 Frigidaire Refrigerator Screw
11AWCI G183060
12WCI G188379-01
13KNOB
14WCI G178402-02
15TUBE
16AWCI G107080
16CONTROL-COLD
17215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17A5304455649 Frigidaire Refrigerator Screw
18316538904 Frigidaire Oven Lamp Light
19SOCKET LIGHT
20215667501 Frigidaire Refrigerator Ice Tray Primary
21WCI 3017594
22WCI 3017595
23COVER-CRISPER
24SUPPORT, CRISPER COVER
25WCI G177253-07
26WCI G177253-08
