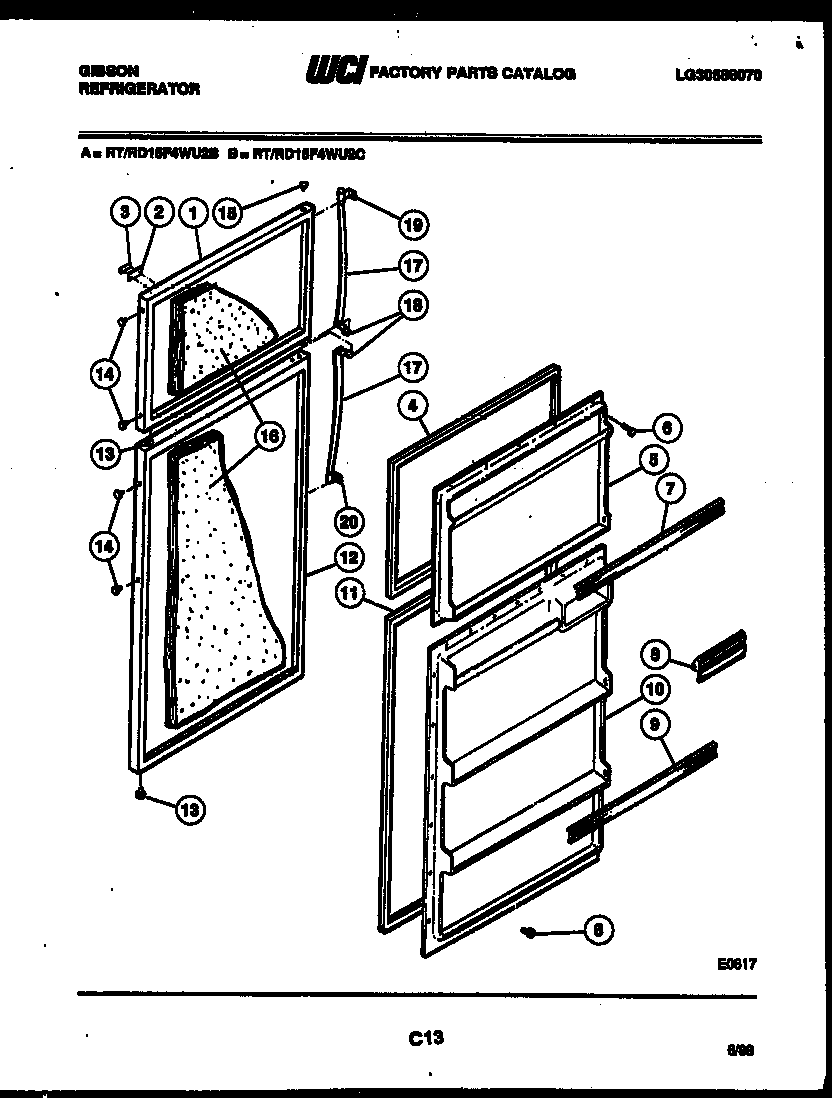

RT15F4WU2C 02 – DOOR PARTS

Products

Position	Product
*10597	WCI G185566
1	PANEL-OUTER-ALMD
1	PANEL-OUTER-AVOC
1	PANEL-OUTER-WHTE
1	PANEL-OUTER-COFE
1	PANEL-OUTER-WEAT
2	WCI G175117-01
2A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
3	LABEL, UPPER
4	GASKET-FREEZER
5	WCI G188754-02
6	5304455651 Frigidaire Refrigerator Screw
7	WCI G164698-47
8	WCI 3015679
9	RACK-DOOR (2)
10	WCI G189034-02
11	GASKET-REFRIGERATOR
12	PANEL-OUTER-AVOC
12	PANEL-OUTER-WHTE
12	PANEL-OUTER-WEAT
12	PANEL-OUTER-COFE
12	PANEL-OUTER-ALMD
13	BEARING, HINGE (3)
14	240494001 Frigidaire Refrigerator Plug Button
14	WCI G162977-11
14	WCI G162977-08
14	WCI G162977-09
14	WCI G162977-10
15	WCI G169332-08
15	WCI G169332-01
15	WCI G169332-09
15	WCI G169332-10
15	WCI G169332-11
16	WCI G89643
17	WCI G170495-24
18	WCI G187329-01
19	WCI G179800
20	WCI G179801
