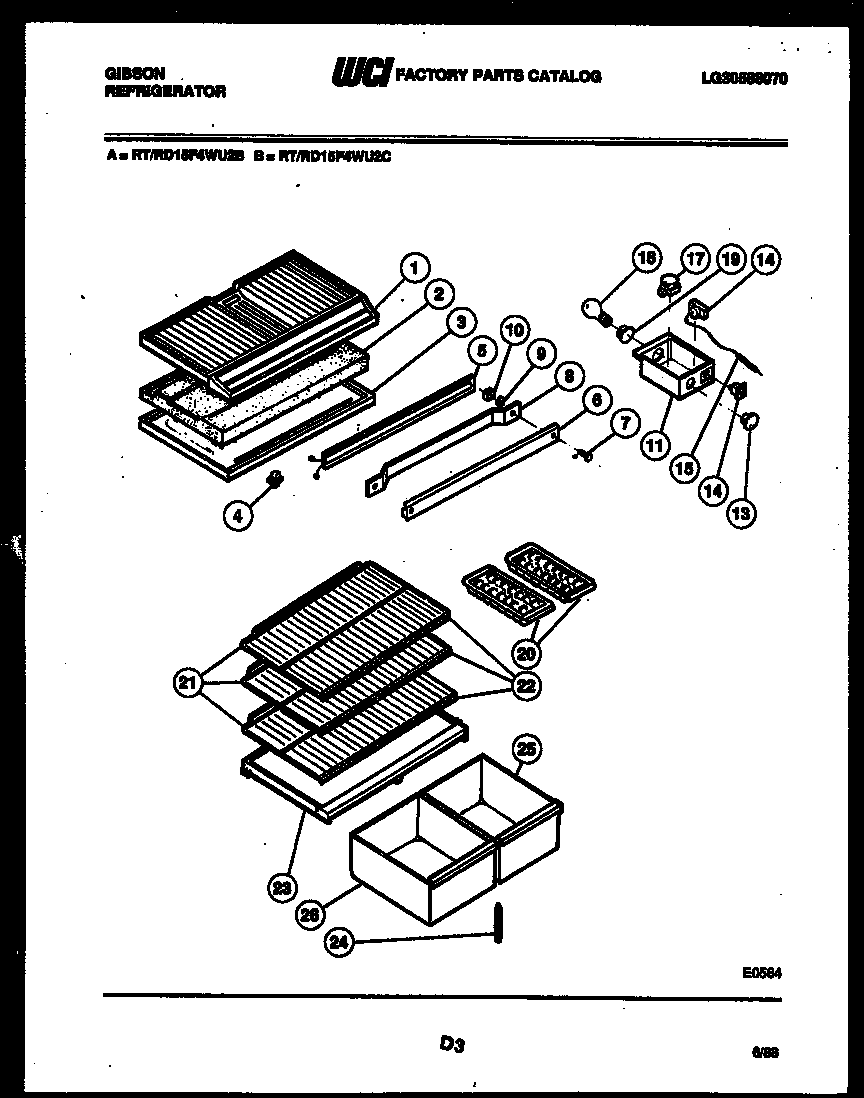

RT15F4WU2C 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	BOTTOM ( FREEZER )
2	DIVIDER-COMPARTMENT
2A	HARNESS, WIRING
3	TOP-REFRIGERATOR
3A	SCREW (5)
4	5309918806 Frigidaire Refrigerator Light Switch Door
5	WCI G187921
6	WCI G174520-11
6	WCI G174520-08
6	WCI G174520-09
6	WCI G174520-10
6	MULLION
7	SCREW, BRACKET MOUNTING (4)
8	CLAMP, MULLION MOUNTING
9	WASHER (2)
10	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
11	WCI G176722-03
11B	5304455650 Frigidaire Refrigerator Screw
11A	WCI G183060
12	WCI G188379-01
13	KNOB
14	WCI G178402-02
15	TUBE
16A	WCI G107080
16	CONTROL-COLD
17	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17A	5304455649 Frigidaire Refrigerator Screw
18	316538904 Frigidaire Oven Lamp Light
19	SOCKET LIGHT
20	215667501 Frigidaire Refrigerator Ice Tray Primary
21	WCI 3017594
22	WCI 3017595
23	COVER-CRISPER
24	SUPPORT, CRISPER COVER
25	WCI G177253-07
26	WCI G177253-08
