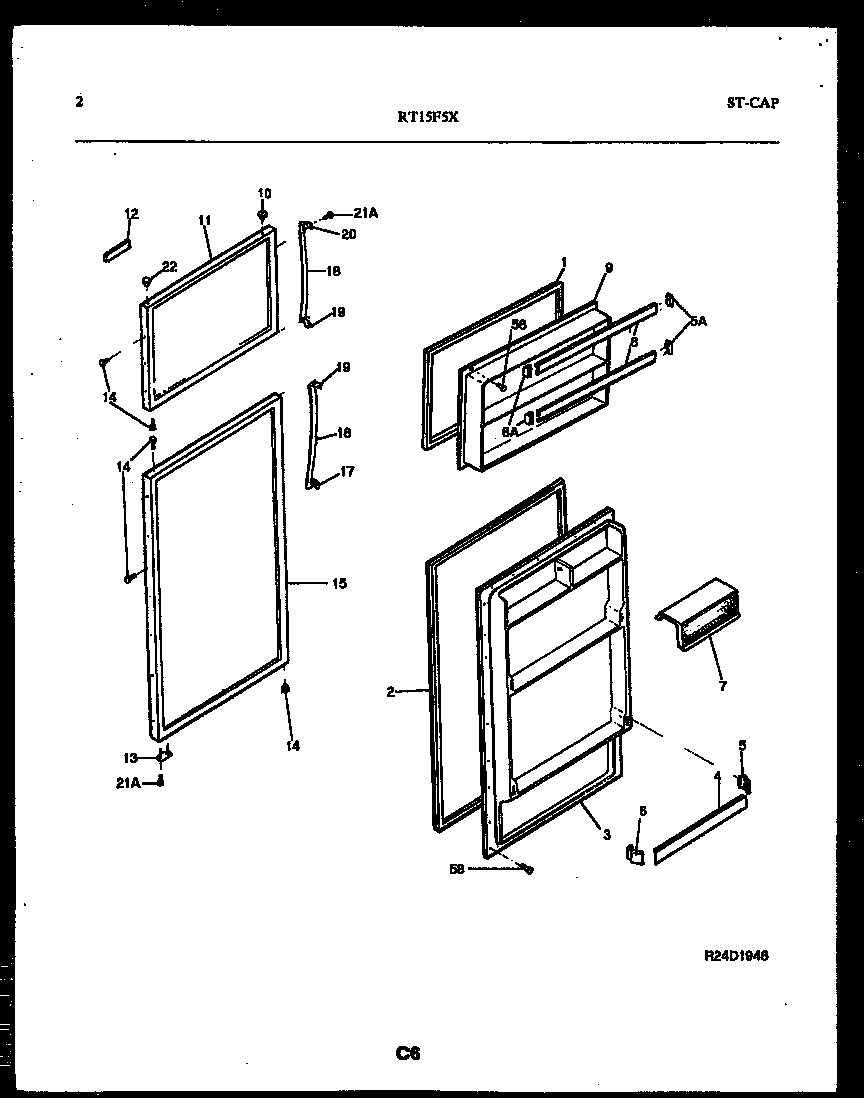

RT15F5DX4B 02 – DOOR PARTS

Products

Position	Product
*56432	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303001399
2	218730603 Frigidaire Door Gasket
3	WCI 5303272501
4	WCI 5303272502
5A	WCI 5303272498
5	WCI 5303272503
6	WCI 5303272504
6A	WCI 5303272499
7	WCI 5303272510
8	WCI 5303272497
9	WCI 5303272496
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	PANEL-FRZR DOOR, ALMOND
12	NAMEPLATE ASSY
13	WCI 5308000255
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	PANEL-REFR DOOR, ALMOND
17	WCI 5303001297
18	WCI 5303272495
19	WCI 5303001296
20	BOTTOM HANDLE END CAP
21A	WCI 5308011745
22	BEARING-HINGE
58	5304455651 Frigidaire Refrigerator Screw
