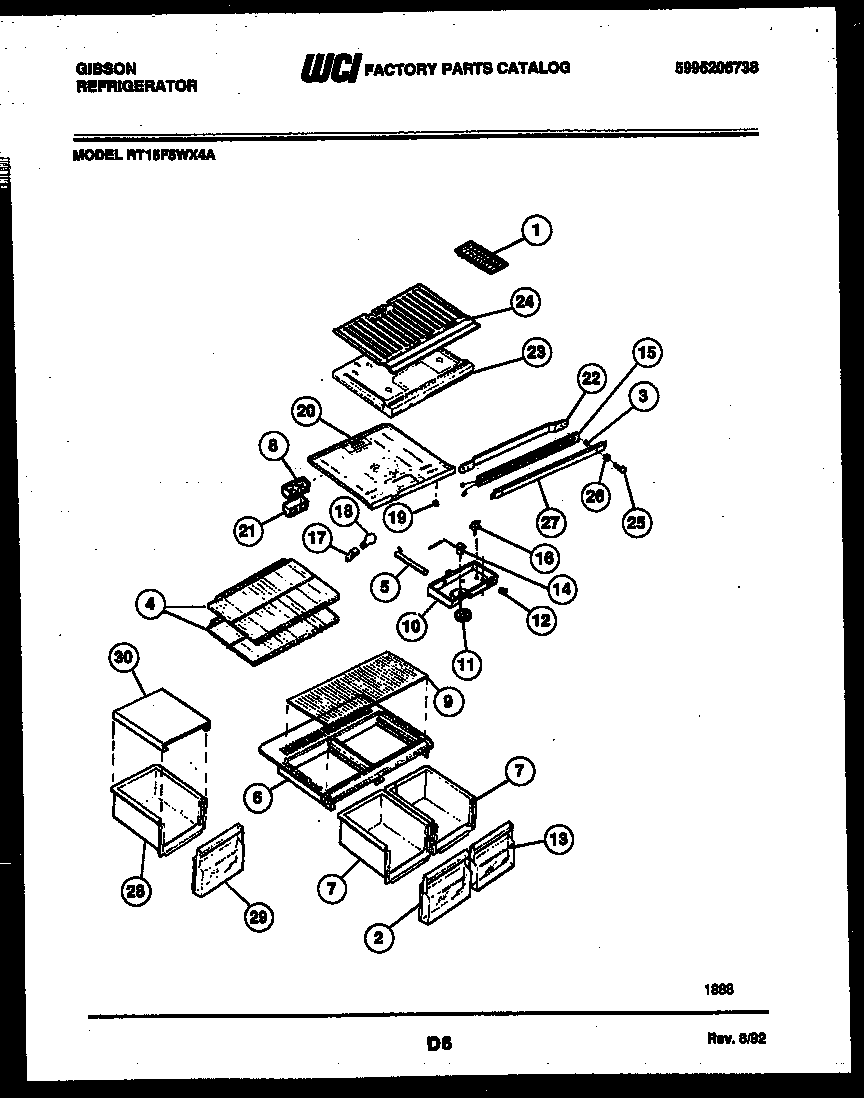

RT15F5WX4A 04 – SHELVES AND SUPPORTS

RT15F5WX4A 04 – SHELVES AND SUPPORTS

Written by

in

RT15F5WX4A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1215667501 Frigidaire Refrigerator Ice Tray Primary
2WCI 5393272514
3SPACER-MULLION MTG, STEEL
4WCI 5303272516
5WCI 3018891
6COVER-CRISPER PAN, WITH BEAM, LESS INSERT
7PAN-CRISPER
8WCI 308014667
8AWCI 5303000590
9WCI 3206111
10WCI 5303272507
10A5304455650 Frigidaire Refrigerator Screw
11WCI 5303201777
12WCI 5303272508
13WCI 5303272513
14WCI 5303018894
14AWCI 5303001260
15WCI 3206120
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20AWCI 5303001380
20WCI 3206128
21WCI 5303001448
22WCI 5308003604
23B3205266 Frigidaire Refrigerator Edge Protector
23WCI 3206131
23AHARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
24WCI 3206132
25SCREW – MULLION (2)
26WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
27WCI 3206121
27WCI 3206125
27WCI 3206123
28WCI 3206209
29WCI 5303272515
30WCI 3206205
