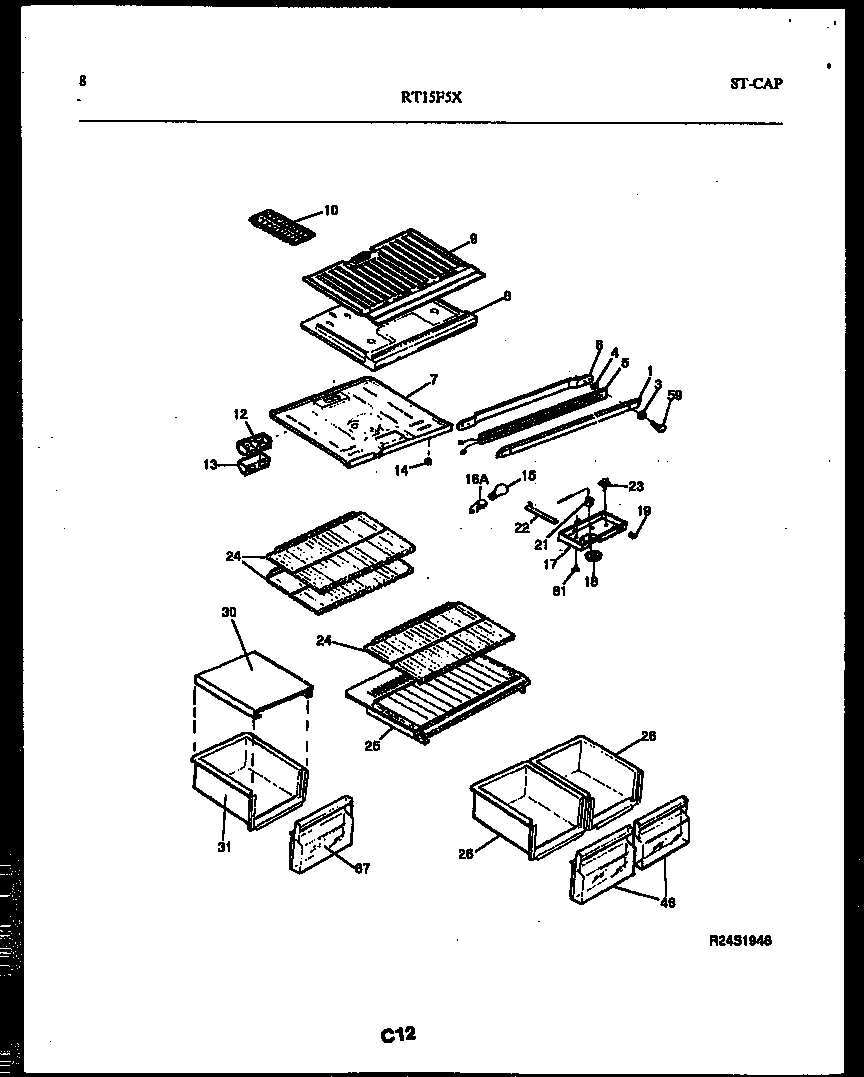

RT15F5WX4B 05 – SHELVES AND SUPPORTS

RT15F5WX4B 05 – SHELVES AND SUPPORTS

Written by

in

RT15F5WX4B 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206121
3WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4SPACER-MULLION MTG, STEEL
5WCI 3206120
6WCI 5308003604
7WCI 3206128
7AWCI 5303001380
8A3205266 Frigidaire Refrigerator Edge Protector
8WCI 3206131
9WCI 3206132
10215667501 Frigidaire Refrigerator Ice Tray Primary
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303272507
18WCI 5303209251
19WCI 5303272508
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25WCI 5303283113
26PAN-CRISPER
30WCI 3206205
31WCI 3206209
46WCI 5303272513
46WCI 5303272514
59SCREW – MULLION (2)
67WCI 5303272515
815304455650 Frigidaire Refrigerator Screw
