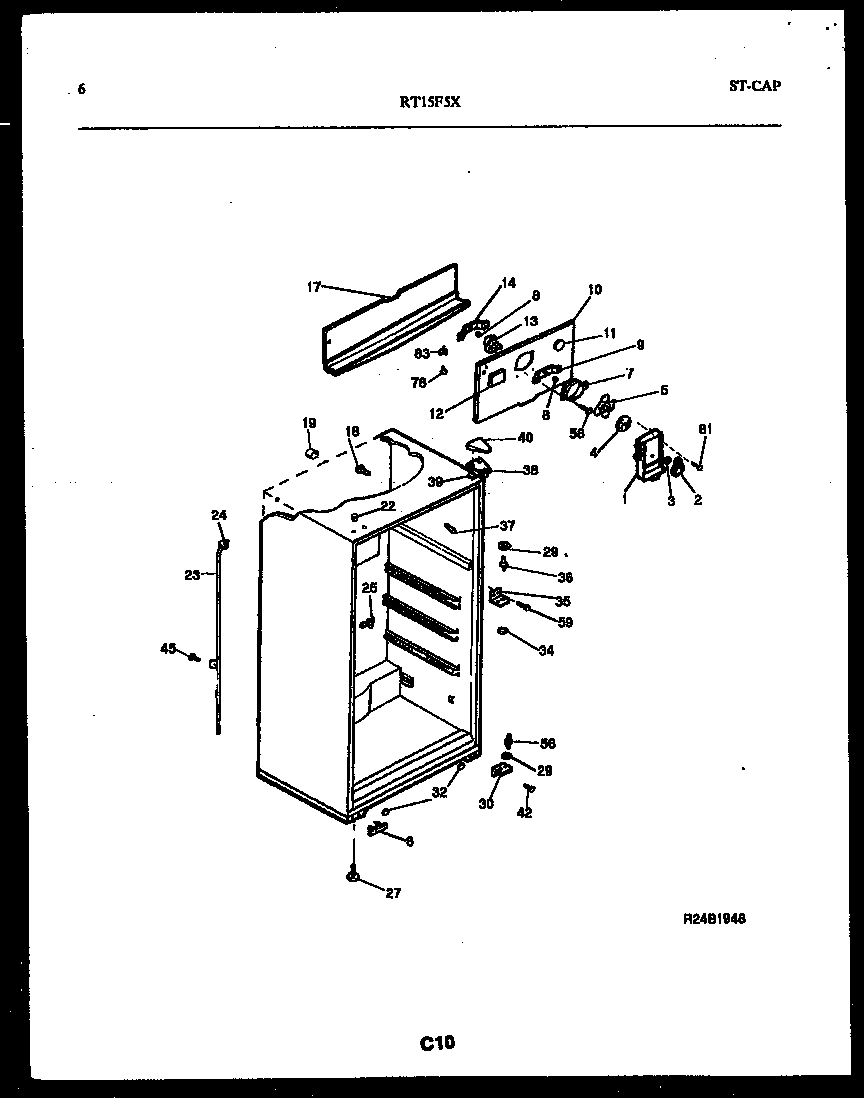

RT15F5YX4B 04 – CABINET PARTS

Products

Position	Product
*56444	SKID PAD, REAR CAB BASE (NI)
*56443	PLUG, BUTTON, CABINET LINER (NI)
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	WCI 3206100
39	SHIM – UPPER HINGE
40	COVER-UPPER HINGE, WHEAT
42	241710601 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	SCREW – MULLION (2)
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
