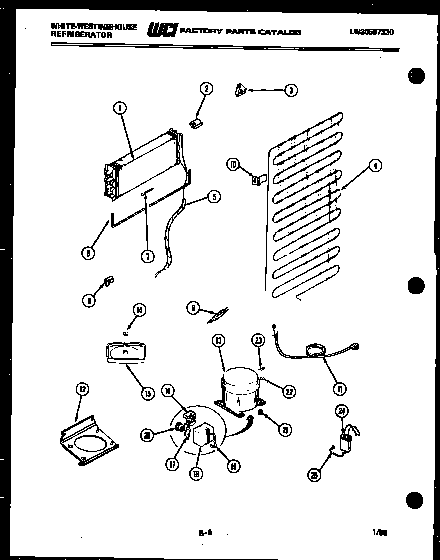

RT163GCHA 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	EVAPORATOR
2	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
3A	PLUG, EVAPORATOR INSULATION BLOCK, R H
3	BLOCK, EVAPORATOR, RH
4	WCI G178225
5	HEAT, EXCHANGE
6	HEATER, DEFROST
7	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8	BLOCK, LEFT SIDE
9	5303305677 Frigidaire Replacement Filter Dryer Filters
10	BRACKET-CONDENSER MOUNTING (4)
11	CORD, SERVICE
12	PLATE
13	WCI G190374
14	NUT, LOCK
15	DEFROST PAN & NUT
16	WCI G182225-18
17	RETAINER, OVERLOAD
19	5303006412 Frigidaire Refrigerator Cover Mounting Strap
20	WCI G188877
21	218513300 Frigidaire Refrigerator Compressor Mount Grommet
22	WASHER, COMPRESSOR MOUNTING (4)
23	CLIP, COMPRESSOR MOUNTING (4)
23A	WCI G183854
23C	HOT TUBE REPAIR KIT
23B	HARNESS-COMPRESSOR
23D	WCI G167234
24	CAPACITOR
25	STRAP-CAPACITOR
