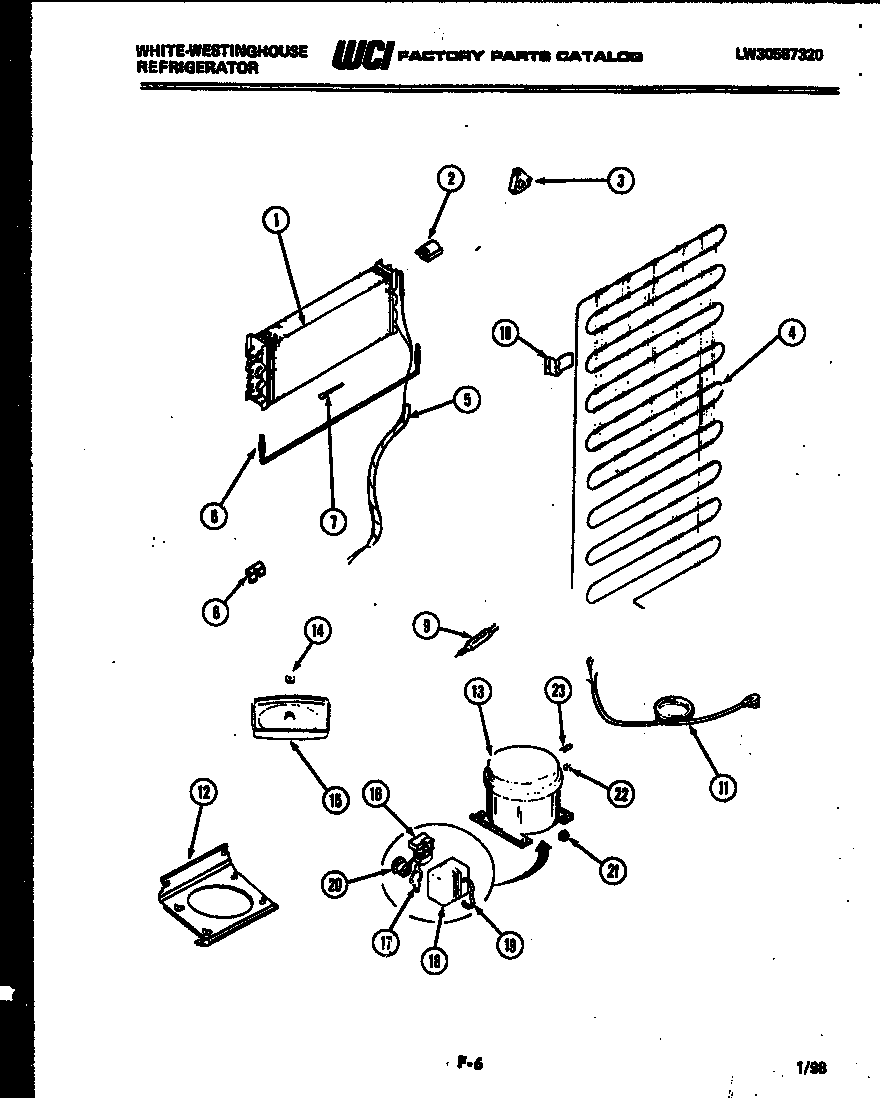

RT163GCV3 04 – SYSTEM AND AUTOMATIC DEFROST PARTSadmin2025-04-26T08:47:35+00:00RT163GCV3 04 – SYSTEM AND AUTOMATIC DEFROST PARTS
Products
| Position | Product |
|---|
| *50564 | WCI G183854 |
| *50564 | HARNESS-COMPRESSOR |
| *50565 | HOT TUBE REPAIR KIT |
| 1 | EVAPORATOR |
| 2 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 3 | BLOCK, EVAPORATOR, RH |
| 3A | PLUG, EVAPORATOR INSULATION BLOCK, R H |
| 4 | WCI G178225 |
| 5 | HEAT, EXCHANGE |
| 6 | HEATER, DEFROST |
| 7 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 8 | BLOCK, LEFT SIDE |
| 9 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 10 | BRACKET-CONDENSER MOUNTING (4) |
| 11 | CORD, SERVICE |
| 12 | PLATE |
| 13 | WCI C620106 |
| 14 | NUT, LOCK |
| 15 | DEFROST PAN & NUT |
| 16 | WCI G182225-11 |
| 17 | RETAINER, OVERLOAD |
| 19 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 20 | WCI G185810 |
| 21 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 22 | WASHER, COMPRESSOR MOUNTING (4) |
| 23 | CLIP, COMPRESSOR MOUNTING (4) |
