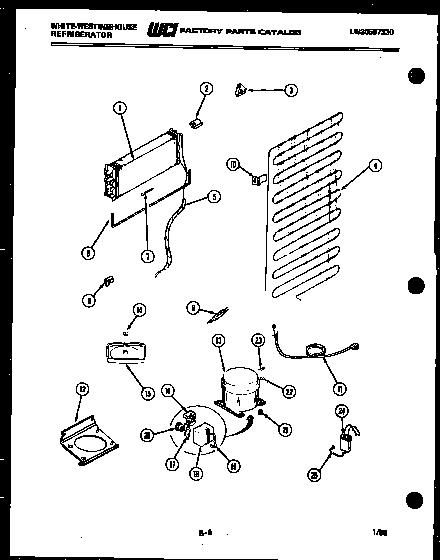

RT163GCWA 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

RT163GCWA 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RT163GCWA 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1EVAPORATOR
25303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
3APLUG, EVAPORATOR INSULATION BLOCK, R H
3BLOCK, EVAPORATOR, RH
4WCI G178225
5HEAT, EXCHANGE
6HEATER, DEFROST
75308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8BLOCK, LEFT SIDE
95303305677 Frigidaire Replacement Filter Dryer Filters
10BRACKET-CONDENSER MOUNTING (4)
11CORD, SERVICE
12PLATE
13WCI G190374
14NUT, LOCK
15DEFROST PAN & NUT
16WCI G182225-18
17RETAINER, OVERLOAD
195303006412 Frigidaire Refrigerator Cover Mounting Strap
20WCI G188877
21218513300 Frigidaire Refrigerator Compressor Mount Grommet
22WASHER, COMPRESSOR MOUNTING (4)
23CLIP, COMPRESSOR MOUNTING (4)
23AWCI G183854
23CHOT TUBE REPAIR KIT
23BHARNESS-COMPRESSOR
23DWCI G167234
24CAPACITOR
25STRAP-CAPACITOR
