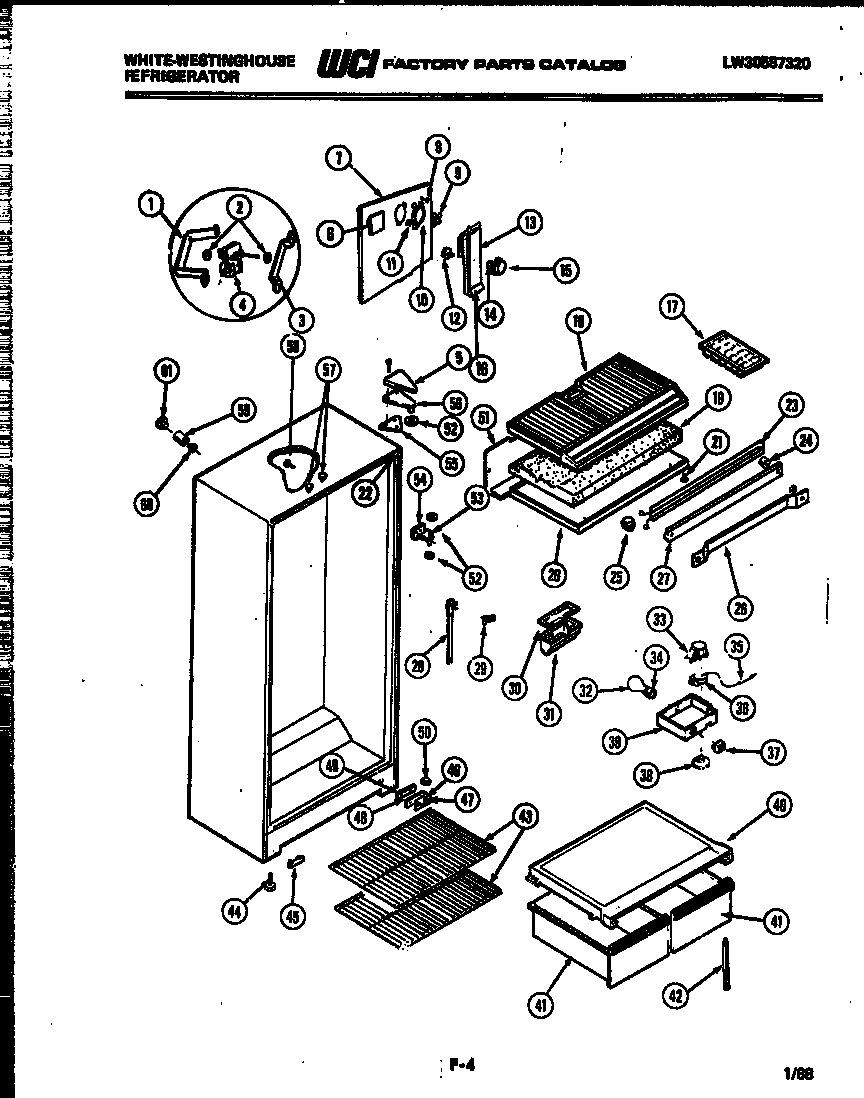

RT163GLV3 03 – CABINET PARTS

Products

Position	Product
*50548	HARNESS, WIRING
1	WCI G185303
2	G187559 Frigidaire Refrigerator Bushing
3	WCI G185302
4	5300158289 Frigidaire Evaporator Fan Motor
5	COVER, TOP HINGE, AVOCADO
6	PLUG-BUTTON DECOR
7	COVER-COIL
8	5304455650 Frigidaire Refrigerator Screw
9	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
10	RING, FAN ORIFICE
11	NUT, ORIFICE (2)
12	DAMPER FAN COVER
13	LABEL-FAN COVER
14	NUT, DAMPER MOUNTING
15	WCI G162663-15
16	WCI G490076-01
17	215667501 Frigidaire Refrigerator Ice Tray Primary
18	BOTTOM, FC
19	DIVIDER, CENTER
20	TOP PC
21	SCREW (5)
22	TRIM CORNER (4), AVOCADO
23	HTR, CENTER RAIL
24	SPACER, MULLION (2)
25	5309918806 Frigidaire Refrigerator Light Switch Door
26	CLAMP, MULLION MOUNTING
27	MULLION, AVOCADO
28	TUBE, DRAIN
29	SPOUT DRAIN TUBE
30	DEFLECTOR AIR
31	WCI G162178
32	316538904 Frigidaire Oven Lamp Light
33	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
34	SOCKET LIGHT
35	TUBE
36	COLD CONTROL
37	SWITCH SLIDE
38	KNOB
39	WCI G176722-01
39A	LABEL-BOX
40	WCI G490016-03
41	WCI G490015-01
42	SUPPORT, CRISPER COVER
43	SHELF-SLIDING (3)
44A	NUT, ANCHOR (2)
44	LEG-LEVELING (2)
45	WCI G166912
46	BRACKET-HINGE
47	5303001321 Frigidaire Refrigerator Lower Hinge Pin
48	SHIM, HINGE
49	TAPPING, PLATE (2)
50	WCI G103903
51	TROUGH-DRAIN
52	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
53	WCI G142220
54	BRACKET, HINGE CENTER
55	WCI G183861
56	BRACKET, TOP HINGE
57	WCI G174747-08
58	WCI G163669
59	TUBE, INSULATION (2)
60	WCI G174733
61	WCI G174734
