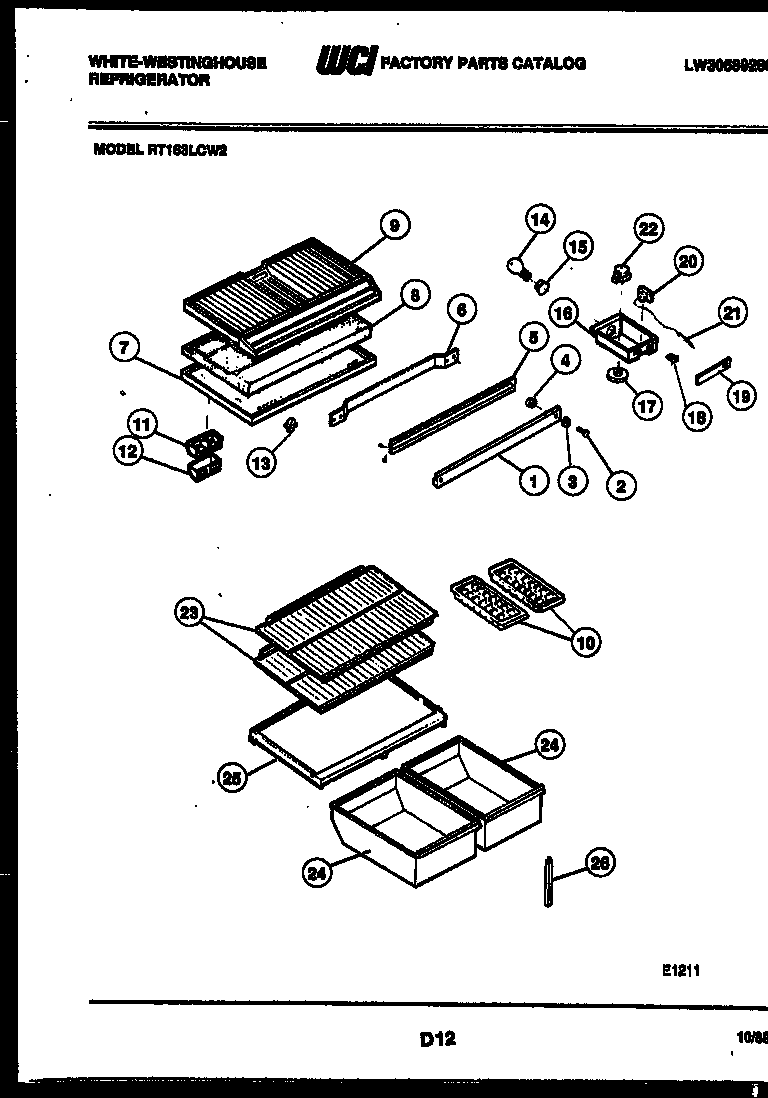

RT163LCD2 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3916134
2SCREW, BRACKET MOUNTING (4)
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER (NON-ILLUSTRATED)
5HTR, CENTER RAIL
6CLAMP, MULLION MOUNTING
7TOP-REFRIGERATOR
7ASCREW (5)
8DIVIDER, CENTER
8B240396801 Frigidaire Refrigerator Tube Clamp
8AHARNESS, WIRING
9APAD, FOAM (2)
9BOTTOM, FC
10215667501 Frigidaire Refrigerator Ice Tray Primary
11DEFLECTOR AIR
12WCI G162178
135309918806 Frigidaire Refrigerator Light Switch Door
14316538904 Frigidaire Oven Lamp Light
15SOCKET LIGHT
16WCI G176722-01
16A5304455650 Frigidaire Refrigerator Screw
17KNOB
18WCI G178402-02
19WCI G000180105
20WCI 3200810
20AWCI G107080
21TUBE
22A5304455649 Frigidaire Refrigerator Screw
22215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23SHELF-SLIDING (3)
24WCI G490015-01
25WCI G490016-03
26SUPPORT-ADJ CRISPER COVER
