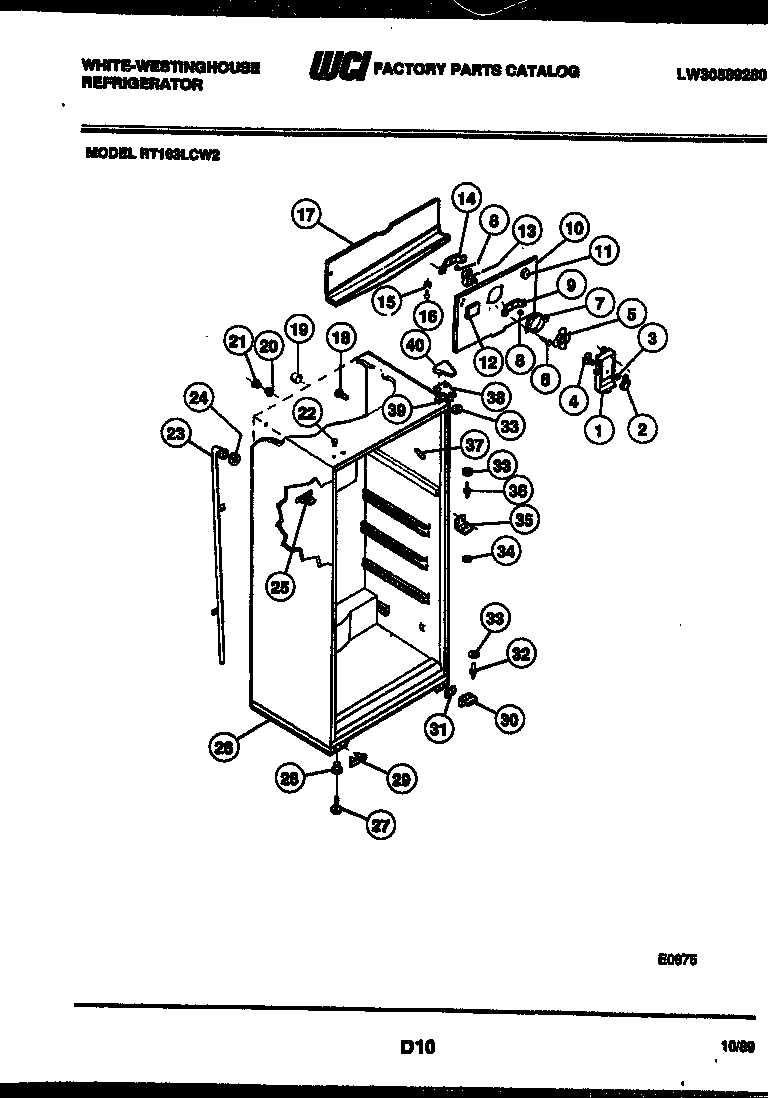

RT163LCF2 03 – CABINET PARTS

Products

Position	Product
*24514	BUTTON, LINER
*24514	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*24514	5304509705 Frigidaire Refrigerator Grommet
1	WCI G490076-01
1B	WCI G000187640
2	WCI G162663-15
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 3205118
10C	240396801 Frigidaire Refrigerator Tube Clamp
10	COVER-COIL
10A	5304455650 Frigidaire Refrigerator Screw
10B	NUT, ORIFICE (2)
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	WCI 3018193
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 3205119
15	WCI G164571
16	5304455651 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-10
24	RING, SEAL (NON-ILLUSTRATED)
25	SPOUT DRAIN TUBE
25A	PIN PUSH SPOUT (2)
26	CABINET BASE
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	HINGE-BRACKET-BOTTOM
31A	TAPPING, PLATE (2)
31	SHIM, HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35A	SCREW, BRACKET MOUNTING (4)
35	BRACKET, HINGE CENTER
36	WCI G142220
37	WCI 3202339
38B	TAPPING PLATE (2)
38	BRACKET, TOP HINGE
38A	241710601 Frigidaire Refrigerator Screw
39	WCI G183861
40	COVER HINGE, COFFEE
