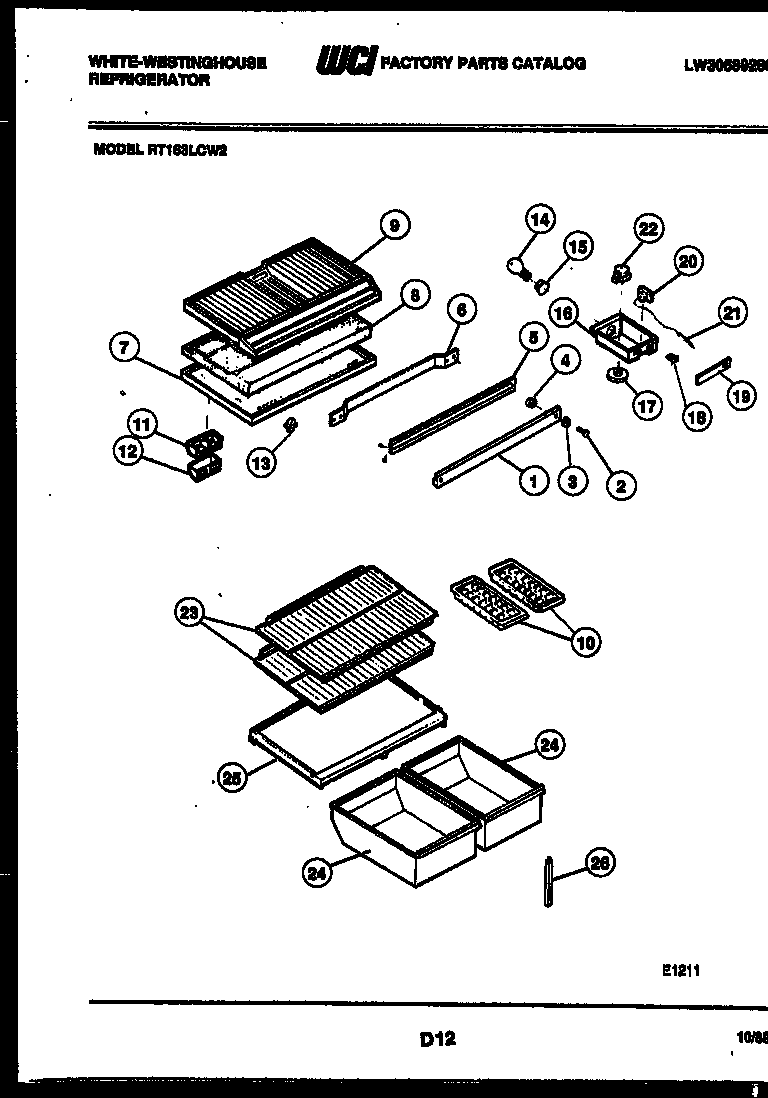

RT163LCF2 04 – SHELVES AND SUPPORTSadmin2025-04-26T08:47:43+00:00RT163LCF2 04 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | WCI 3916133 |
| 2 | SCREW, BRACKET MOUNTING (4) |
| 3 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 4 | SPACER (NON-ILLUSTRATED) |
| 5 | HTR, CENTER RAIL |
| 6 | CLAMP, MULLION MOUNTING |
| 7 | TOP-REFRIGERATOR |
| 7A | SCREW (5) |
| 8 | DIVIDER, CENTER |
| 8B | 240396801 Frigidaire Refrigerator Tube Clamp |
| 8A | HARNESS, WIRING |
| 9A | PAD, FOAM (2) |
| 9 | BOTTOM, FC |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11 | DEFLECTOR AIR |
| 12 | WCI G162178 |
| 13 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 14 | 316538904 Frigidaire Oven Lamp Light |
| 15 | SOCKET LIGHT |
| 16 | WCI G176722-01 |
| 16A | 5304455650 Frigidaire Refrigerator Screw |
| 17 | KNOB |
| 18 | WCI G178402-02 |
| 19 | WCI G000180105 |
| 20 | WCI 3200810 |
| 20A | WCI G107080 |
| 21 | TUBE |
| 22 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 22A | 5304455649 Frigidaire Refrigerator Screw |
| 23 | SHELF-SLIDING (3) |
| 24 | WCI G490015-01 |
| 25 | WCI G490016-03 |
| 26 | SUPPORT-ADJ CRISPER COVER |
