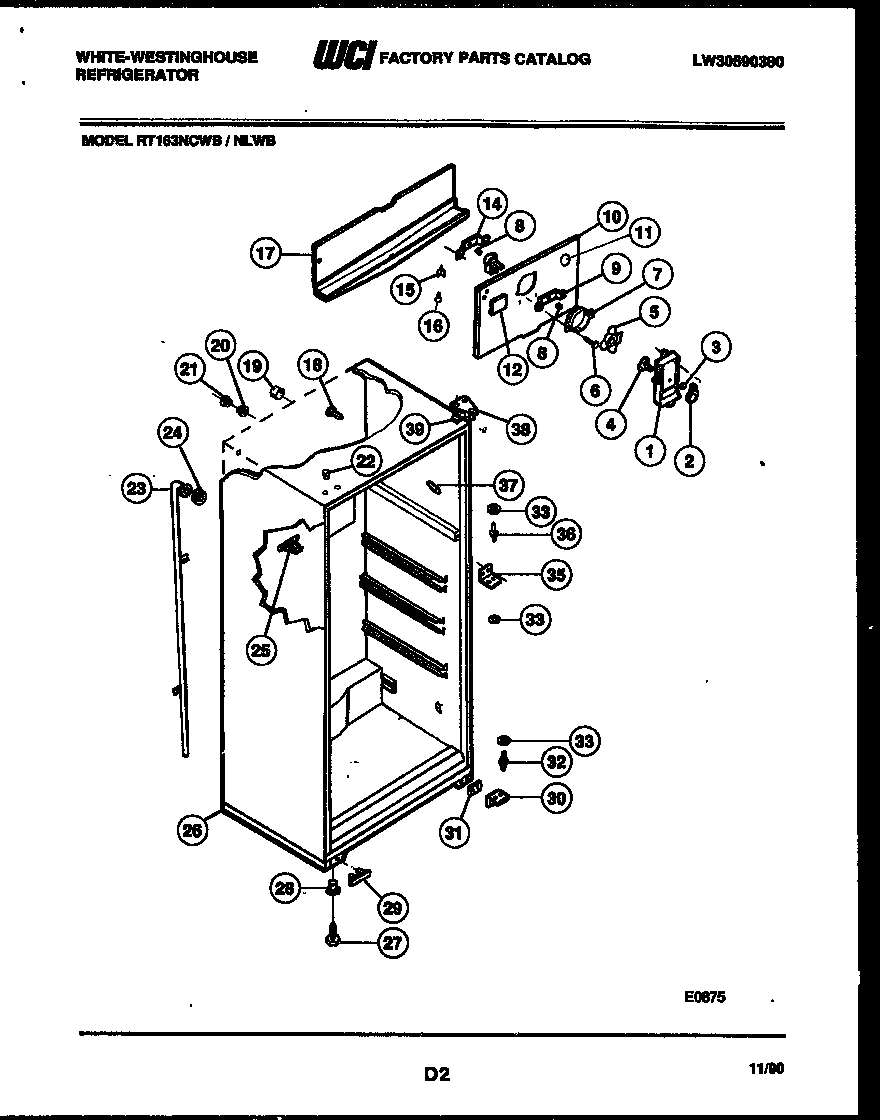

RT163NCDB 03 – CABINET PARTS

RT163NCDB 03 – CABINET PARTS

Written by

in

RT163NCDB 03 – CABINET PARTS

Products

PositionProduct
*37986PLUG, BUTTON, CABINET LINER (NI)
*379865304509705 Frigidaire Refrigerator Grommet
*379865304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1BLABEL-FAN COVER (NON-ILLUSTRATED)
1WCI 3205739
2KNOB-DAMPER CONTROL
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10WCI 3001527
10A5304455650 Frigidaire Refrigerator Screw
10C5308000133 Frigidaire Refrigerator Clamp
115303208309 Frigidaire Refrigerator Plug Hole
12PLUG-DECORATIVE, ICE MAKER HOLE
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
16218843801 Frigidaire Refrigerator Screw
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23A5304455651 Frigidaire Refrigerator Screw
23WCI 5303210377
24WCI 5303207353
25AWCI 5303001361
25WCI 5308000056
26WCI 08010091
27SCREW-LEVELING (4)
28WCI 5308003584
29COVER-HOLE, LOWER HINGE
30A241710601 Frigidaire Refrigerator Screw
30HINGE BRACKET – BOTTOM
31SHIM-LOWER HINGE
325303001321 Frigidaire Refrigerator Lower Hinge Pin
33WCI 5308000186
34WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
35AWCI 5308012258
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, ALMOND
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38BRACKET-UPPER HINGE
39SHIM – UPPER HINGE
