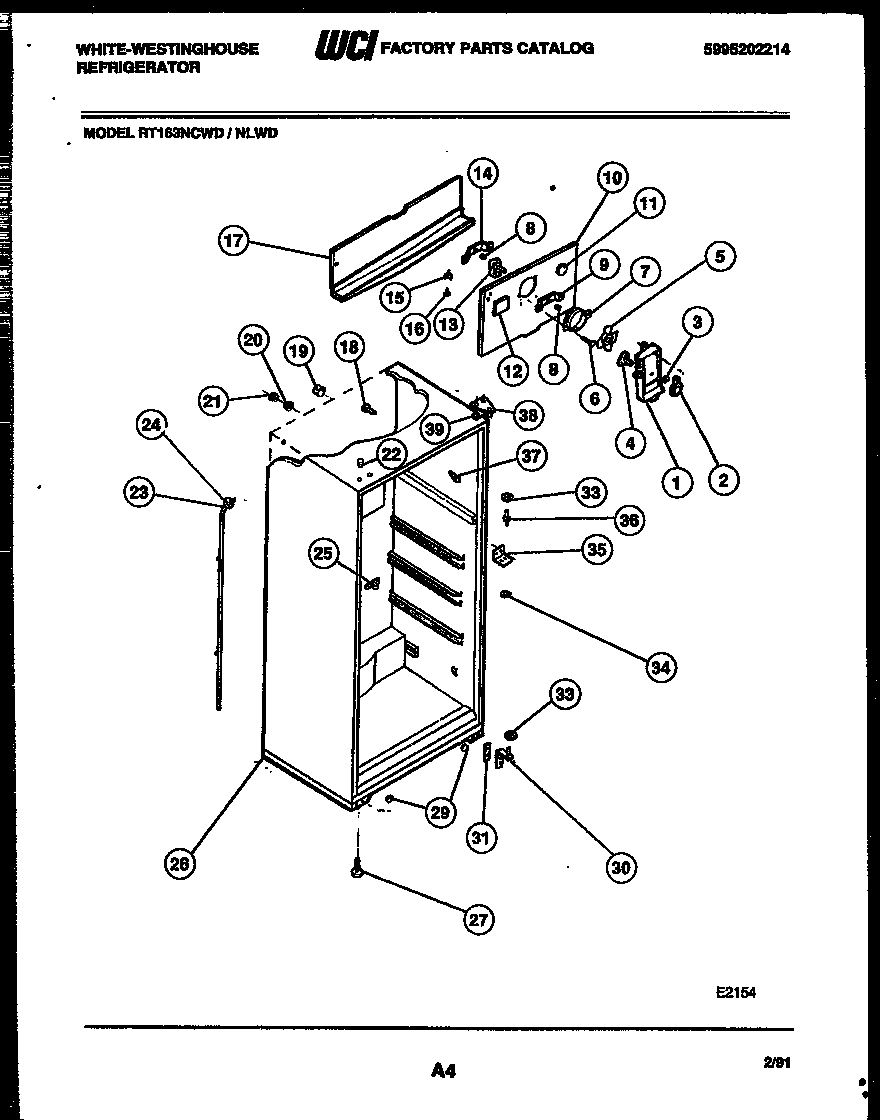

RT163NCDD 03 – CABINET PARTS

Written by

Products

Position	Product
*41638	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*41637	PLUG, BUTTON, CABINET LINER (NI)
*41638	5304509705 Frigidaire Refrigerator Grommet
1B	LABEL-FAN COVER (NON-ILLUSTRATED)
1	WCI 3205739
2	KNOB-DAMPER CONTROL
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303001226
10B	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10	WCI 3001527
10C	5308000133 Frigidaire Refrigerator Clamp
10A	5304455650 Frigidaire Refrigerator Screw
11	5303208309 Frigidaire Refrigerator Plug Hole
12	PLUG-DECORATIVE, ICE MAKER HOLE
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
15	WCI 5308000107
16	5304455651 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23	WCI 5303210377
24	WCI 5303207353
25	WCI 5308000056
25A	WCI 5303001361
26	BASE-CABINET
27	Screw-leveling,(2)
29	WCI 5303212923
30B	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30A	241710601 Frigidaire Refrigerator Screw
30C	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE, W/ HINGE PIN
31	WCI 5303212488
33	WCI 5308000186
34	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
35	BRACKET-CTR HINGE
35A	WCI 5308012258
36	WCI 5308000184
37A	TRIM-CABINET CORNER, ALMOND
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	BRACKET-UPPER HINGE
39	SHIM – UPPER HINGE
