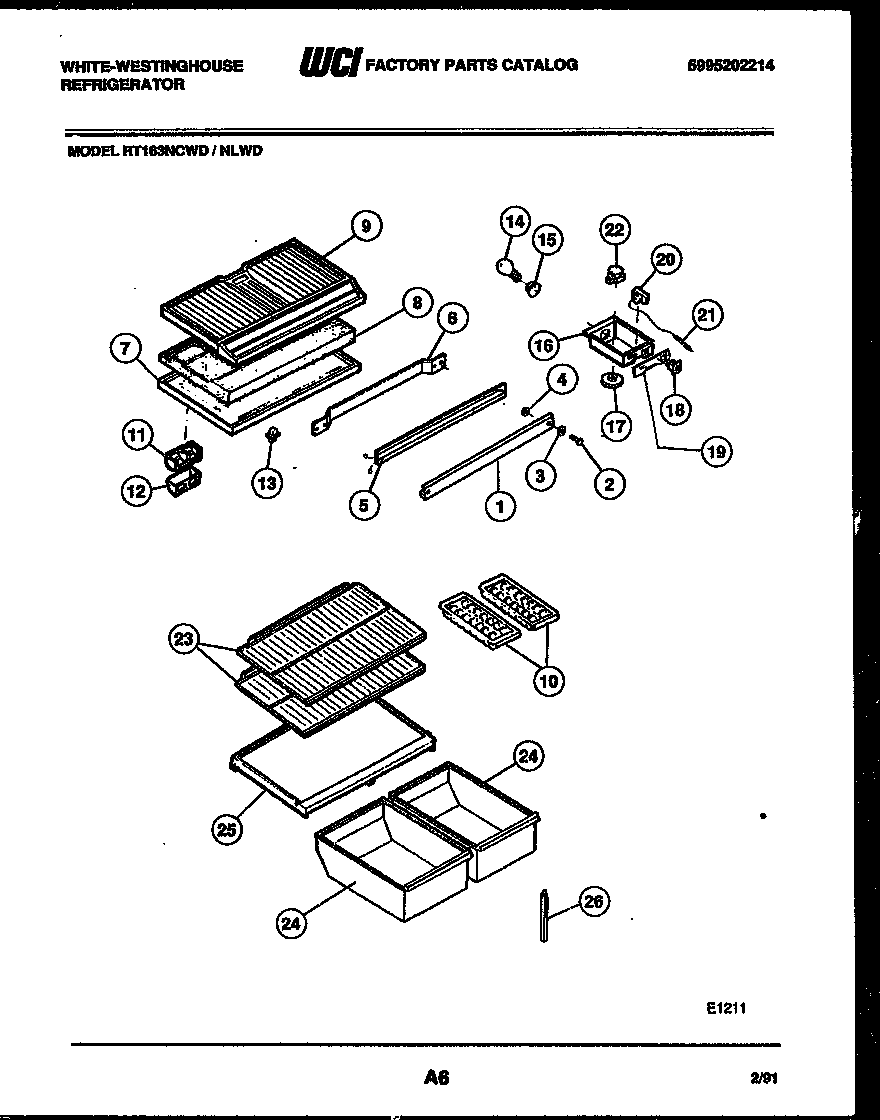

RT163NCWD 04 – SHELVES AND SUPPORTS

RT163NCWD 04 – SHELVES AND SUPPORTS

Written by

in

RT163NCWD 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200465
2WCI 5308012258
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5308017408
6WCI 5308003604
7AWCI 5303001380
7TOP PANEL-REFR, W/ SNAP BUSHING
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8B5308000133 Frigidaire Refrigerator Clamp
8WCI 5308009750
9AWCI 08000185
9WCI 5303001537
10215667501 Frigidaire Refrigerator Ice Tray Primary
11DEFLECTOR-AIR
12COVER – AIR DEFLECTOR
135309918806 Frigidaire Refrigerator Light Switch Door
14316538904 Frigidaire Oven Lamp Light
15SOCKET-LIGHT/LAMP
16BOX-CONTROL
16A5304455650 Frigidaire Refrigerator Screw
17WCI 5308010011
18SWITCH-ENERGY SAVER, SLIDE TYPE
19WCI G000180105
20WCI 5303200810
20AWCI 5303001260
21TUBE
22215846604 Frigidaire Refrigerator Defrost Timer
22A5304455649 Frigidaire Refrigerator Screw
23WCI 5317941501
24WCI 3016760
25WCI 5349001603
26SUPPORT-CRISPER CVR, ADJUSTABLE
