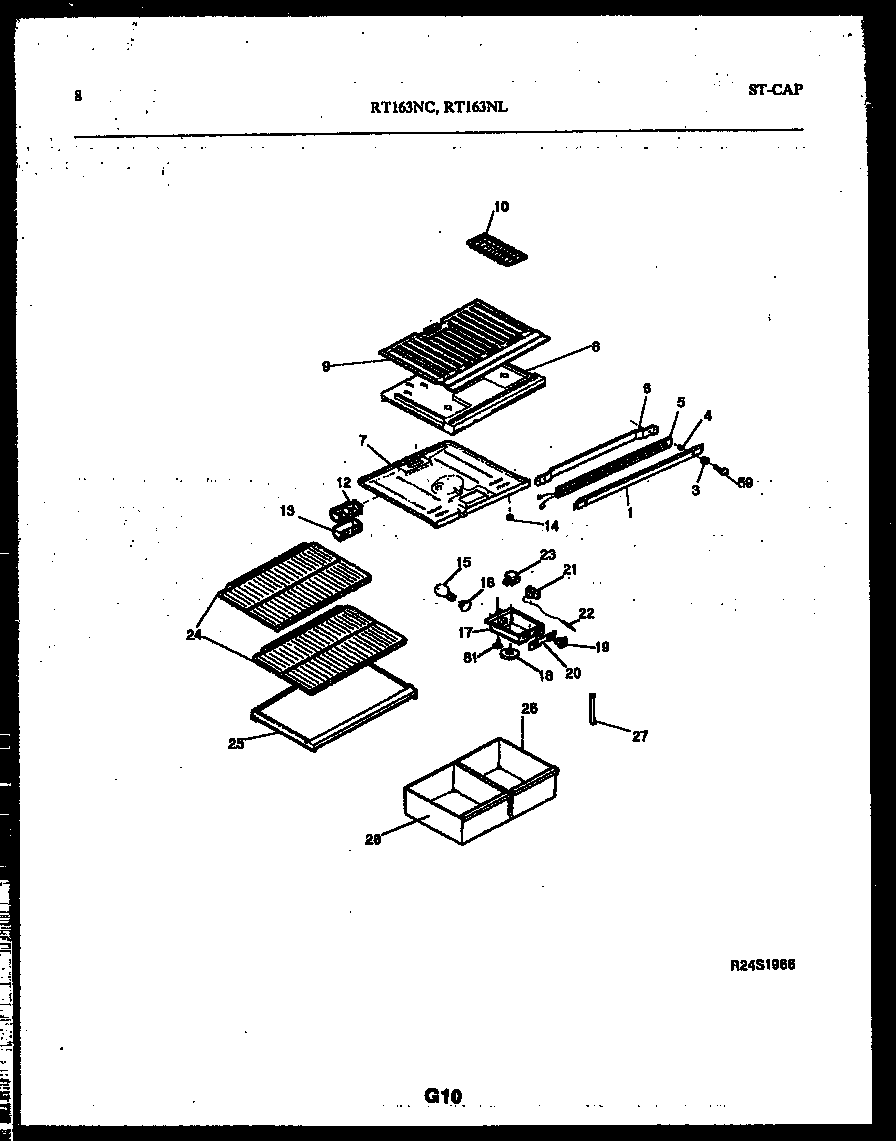

RT163NLDE 05 – SHELVES AND SUPPORTSadmin2025-04-26T08:47:29+00:00RT163NLDE 05 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | WCI 5303916134 |
| 3 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 4 | SPACER-MULLION MTG, STEEL |
| 5 | WCI 5308017408 |
| 6 | WCI 5308003604 |
| 7 | TOP PANEL-REFR, W/ SNAP BUSHING |
| 7B | BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED) |
| 7A | WCI 5303001380 |
| 8A | HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED) |
| 8 | WCI 5308009750 |
| 9 | WCI 5303001537 |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 12 | DEFLECTOR-AIR |
| 13 | COVER - AIR DEFLECTOR |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | SOCKET-LIGHT/LAMP |
| 17 | WCI 5317465503 |
| 18 | WCI 3018569 |
| 19 | SWITCH-ENERGY SAVER, SLIDE TYPE |
| 20 | WCI 3018571 |
| 21 | WCI 5303200810 |
| 21A | WCI 5303001260 |
| 22 | TUBE |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 23A | 5304455649 Frigidaire Refrigerator Screw |
| 24 | SHELF-SLIDING, REFR, (2) |
| 25 | COVER-CRISPER PAN |
| 26 | WCI 5303281657 |
| 27 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 59 | WCI 5308012258 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
