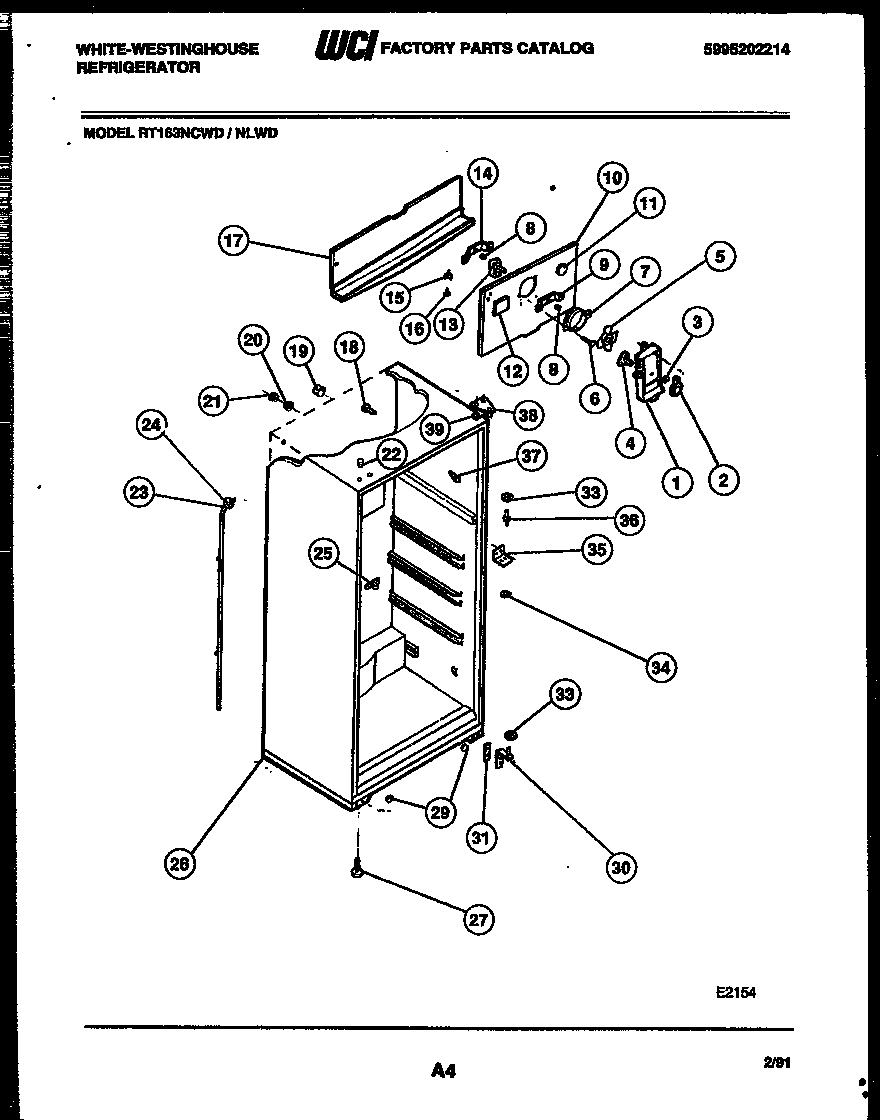

RT163NLWD 03 – CABINET PARTS

RT163NLWD 03 – CABINET PARTS

Written by

in

RT163NLWD 03 – CABINET PARTS

Products

PositionProduct
*416385304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*416385304509705 Frigidaire Refrigerator Grommet
*41637PLUG, BUTTON, CABINET LINER (NI)
1BLABEL-FAN COVER (NON-ILLUSTRATED)
1WCI 3205739
2KNOB-DAMPER CONTROL
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10WCI 3001527
10C5308000133 Frigidaire Refrigerator Clamp
10A5304455650 Frigidaire Refrigerator Screw
115303208309 Frigidaire Refrigerator Plug Hole
12PLUG-DECORATIVE, ICE MAKER HOLE
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
165304455651 Frigidaire Refrigerator Screw
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
23WCI 5303210377
24WCI 5303207353
25AWCI 5303001361
25WCI 5308000056
26BASE-CABINET
27Screw-leveling,(2)
29WCI 5303212923
30A241710601 Frigidaire Refrigerator Screw
30BRACKET-LOWER HINGE, W/ HINGE PIN
30BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30CTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
31WCI 5303212488
33WCI 5308000186
34WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
35AWCI 5308012258
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, WHITE
38BRACKET-UPPER HINGE
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM – UPPER HINGE
