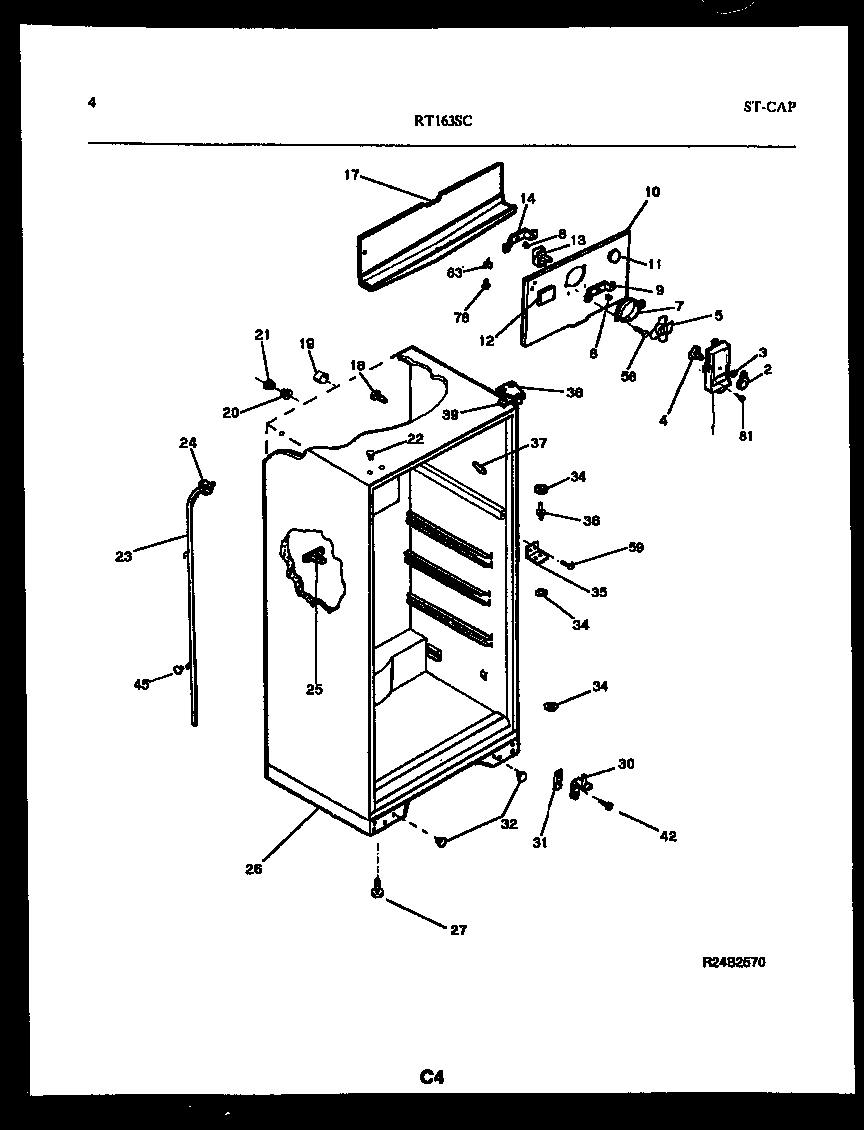

RT163SLD0 03 – CABINET PARTS

Products

Position	Product
1	WCI 08009820
2	WCI 5308000081
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10A	WCI 5303209636
10	WCI 3001527
11	5303208309 Frigidaire Refrigerator Plug Hole
12	BUTTON - DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, WHITE
23	WCI 5303210377
24	WCI 5303207353
25A	WCI 5303001361
25	WCI 5308000056
26	BASE-CABINET
27	Screw-leveling,(2)
30B	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30A	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE, W/ HINGE PIN
31	WCI 5303212488
32	WCI 5303212923
34	WCI 5308000186
35	BRACKET-CTR HINGE
