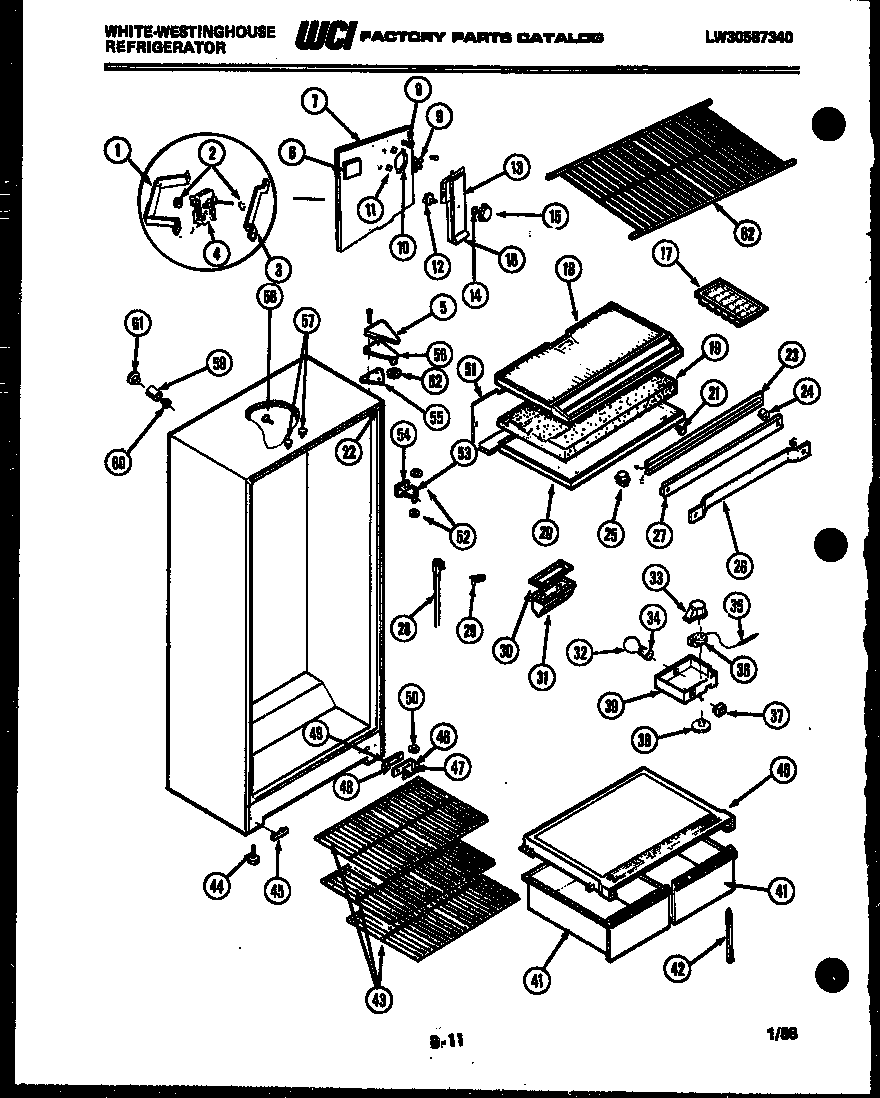

RT164HLH0 03 – CABINET PARTS

Products

Position	Product
1	WCI G185303
2	G187559 Frigidaire Refrigerator Bushing
3	WCI G185302
4	5300158289 Frigidaire Evaporator Fan Motor
5	COVER HINGE, WHEAT
6	PLUG-BUTTON DECOR
7	COVER-COIL
8	5304455650 Frigidaire Refrigerator Screw
9	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
10	RING, FAN ORIFICE
11	NUT, ORIFICE (2)
12	DAMPER FAN COVER
13	LABEL-FAN COVER
14	NUT, DAMPER MOUNTING
15	WCI G162663-15
16	WCI G490076-01
17	215667501 Frigidaire Refrigerator Ice Tray Primary
18	BOTTOM, FC
19	DIVIDER, CENTER
20	TOP-REFRIGERATOR
21	SCREW (5)
22	WCI G179684-09
23	HTR, CENTER RAIL
24	SPACER, MULLION (2)
25	5309918806 Frigidaire Refrigerator Light Switch Door
26	CLAMP, MULLION MOUNTING
27	WCI G490086-09
28	TUBE, DRAIN
29	SPOUT DRAIN TUBE
30	DEFLECTOR AIR
31	WCI G162178
32	316538904 Frigidaire Oven Lamp Light
33	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
34	SOCKET LIGHT
35	TUBE
36	COLD CONTROL
37	SWITCH SLIDE
38	KNOB
39A	LABEL-BOX
39	WCI G176722-01
40	WCI G490016-03
41	WCI G490015-01
42	SUPPORT, CRISPER COVER
43	SHELF-SLIDING (3)
44	LEG-LEVELING (2)
44A	NUT, ANCHOR (2)
45	WCI G166912
46	BRACKET-HINGE
47	5303001321 Frigidaire Refrigerator Lower Hinge Pin
48	SHIM, HINGE
49	TAPPING, PLATE (2)
50	WCI G103903
51	TROUGH-DRAIN
52	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
53	WCI G142220
54	BRACKET, HINGE CENTER
55	WCI G183861
56	BRACKET, TOP HINGE
57	WCI G174747-09
58	WCI G163669
59	TUBE, INSULATION (2)
60	WCI G174733
61A	HARNESS, WIRING
61	WCI G174734
62	WCI G184193-01
