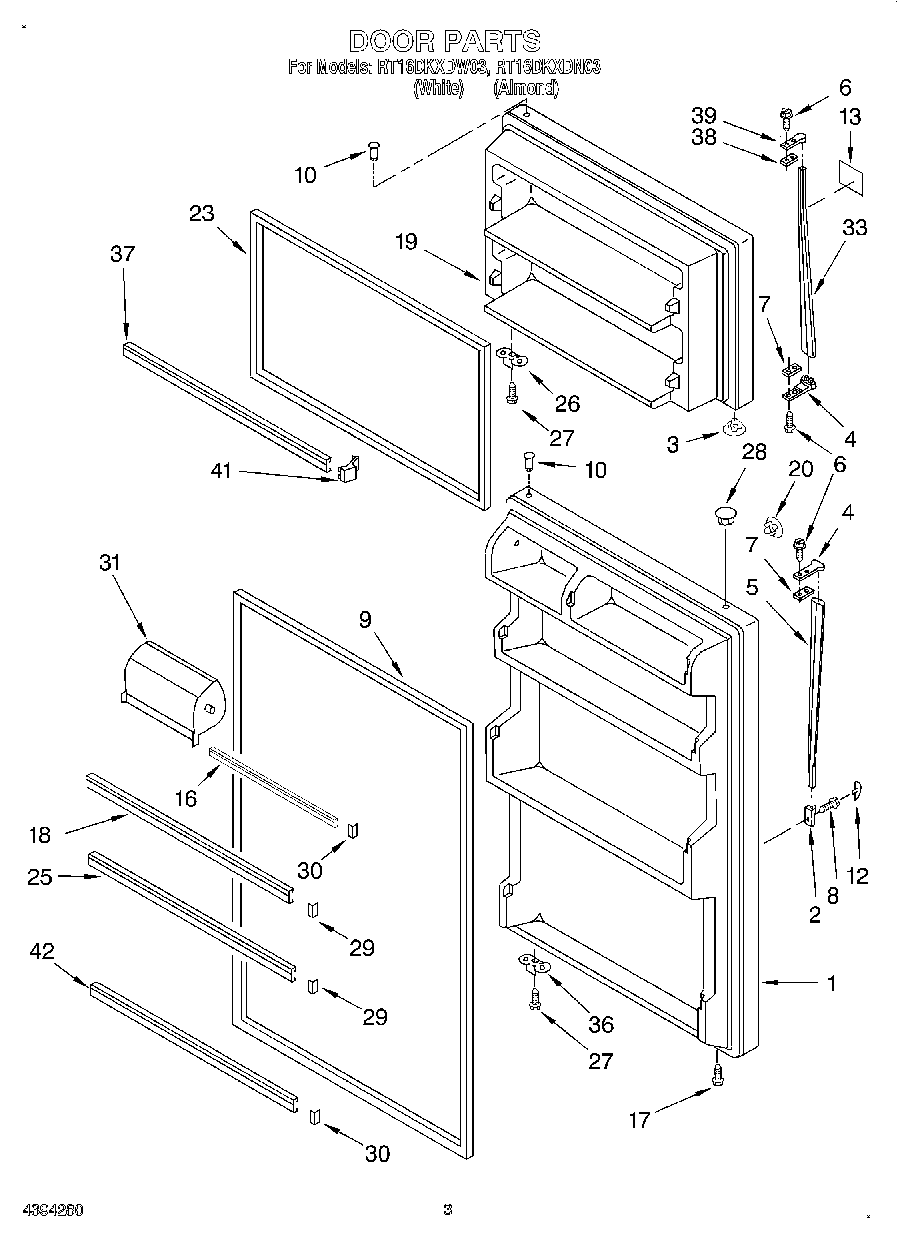

RT16DKXDW03 02 – DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.8) (White)
1	Refrigerator Door (Includes No.8) (Almond)
3	Hole Plug (2)
3	Hole Plug (2) (Almond)
4	819342 Whirlpool Refrigerator Endcap Kit
5	Handle, Center
6	WP488920 Whirlpool Refrigerator Screw
7	Spa
8	WP488729 Whirlpool Refrigerator Door Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
10	WP2183003 Whirlpool Thimble
12	WP1101634 Whirlpool Refrigerator Cover
13	Nameplate
16	TRIM-DOOR
17	WP8281206 Whirlpool Refrigerator Screw
19	Freezer Door (Includes Item 23) (Almond)
19	Freezer Door (Includes Item 23) (White)
20	Hole Plug, Handle (Almond)
20	WP2189000 Whirlpool Refrigerator Handle Plug
23	Door Gasket, Magnetic (Service) (Mist Beige)
25	Trim-Door Shelf
26	Bracket, Door Stop
27	WP488921 Whirlpool Refrigerator Screw
28	Hole Plug (Almond)
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218113 Whirlpool Dairy Door
33	Handle, F.C. (Black)
36	Bracket, Door Stop
38	Shim, Handle
41	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
42	Trim, Door Shelf
