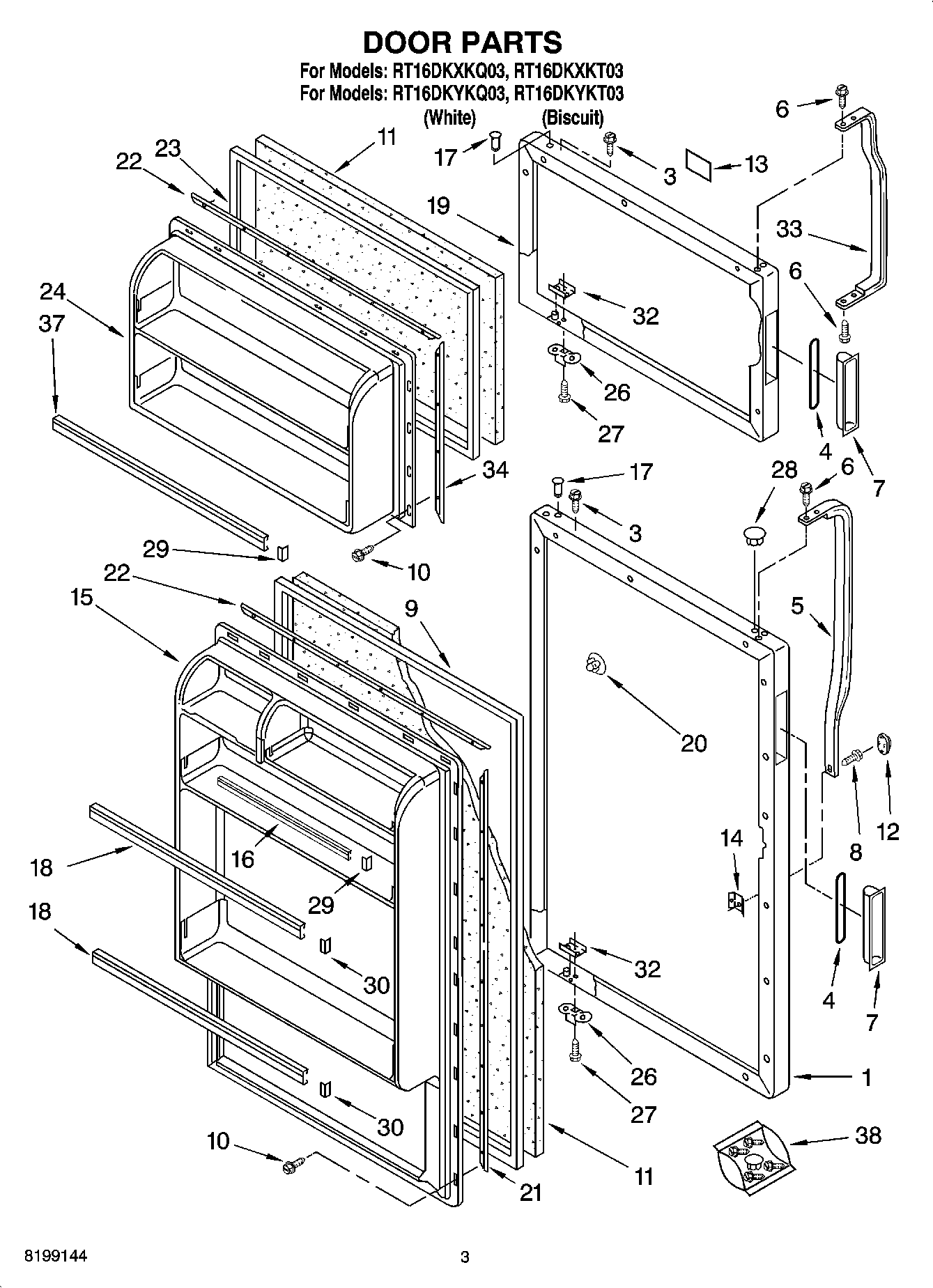

RT16DKXKT03 02 – DOOR PARTS

RT16DKXKT03 02 – DOOR PARTS

Written by

in

RT16DKXKT03 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door Panel (Also Order Item 11) (Biscuit)
1Refrigerator Door Panel (Also Order Item 11) (White)
3WP8281206 Whirlpool Refrigerator Screw
4Gasket, Handle
5WP2221946T Whirlpool Refrigerator Handle
5HANDLE
6WP489357 Whirlpool Recessed Screw
7WP984493 Whirlpool Refrigerator Handle
7Handle (Biscuit)
8WP8281146 Whirlpool Screw
9WP2319266T Whirlpool Refrigerator FIP Gasket
10WP489442 Whirlpool Refrigerator Screw
11WPL 876029
12WP2202819W Whirlpool Refrigerator Cover
12Cover, Screw (Biscuit)
13Nameplate (Biscuit)
13Nameplate (White)
14WP939101 Whirlpool Refrigerator Plate
15Interior Door Panel (Refrigerator)
17WP2183003 Whirlpool Thimble
18Trim, Door (Middle)
19Freezer Door Panel (Also Order Item 11) (Biscuit)
19Freezer Door Panel (Also Order Item 11) (White)
20WP2189000 Whirlpool Refrigerator Handle Plug
20WP2200936 Whirlpool Refrigerator Handle Plug
21Retainer, Gasket
22Retainer, Gasket
232188462A Whirlpool Freezer Door Gasket
24Interior Door Panel (Freezer)
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212649 Whirlpool Refrigerator Button Plug
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
32Tap Plate
33HANDLE
33WP2215015 Whirlpool Refrigerator Handle
34Retainer, Gasket
37WP2163629 Whirlpool Refrigerator Door Trim
38Hole Plug Kit (If Bow Handle is Removed) (White)
38Hole Plug Kit (If Bow Handle is Removed) (Biscuit)
