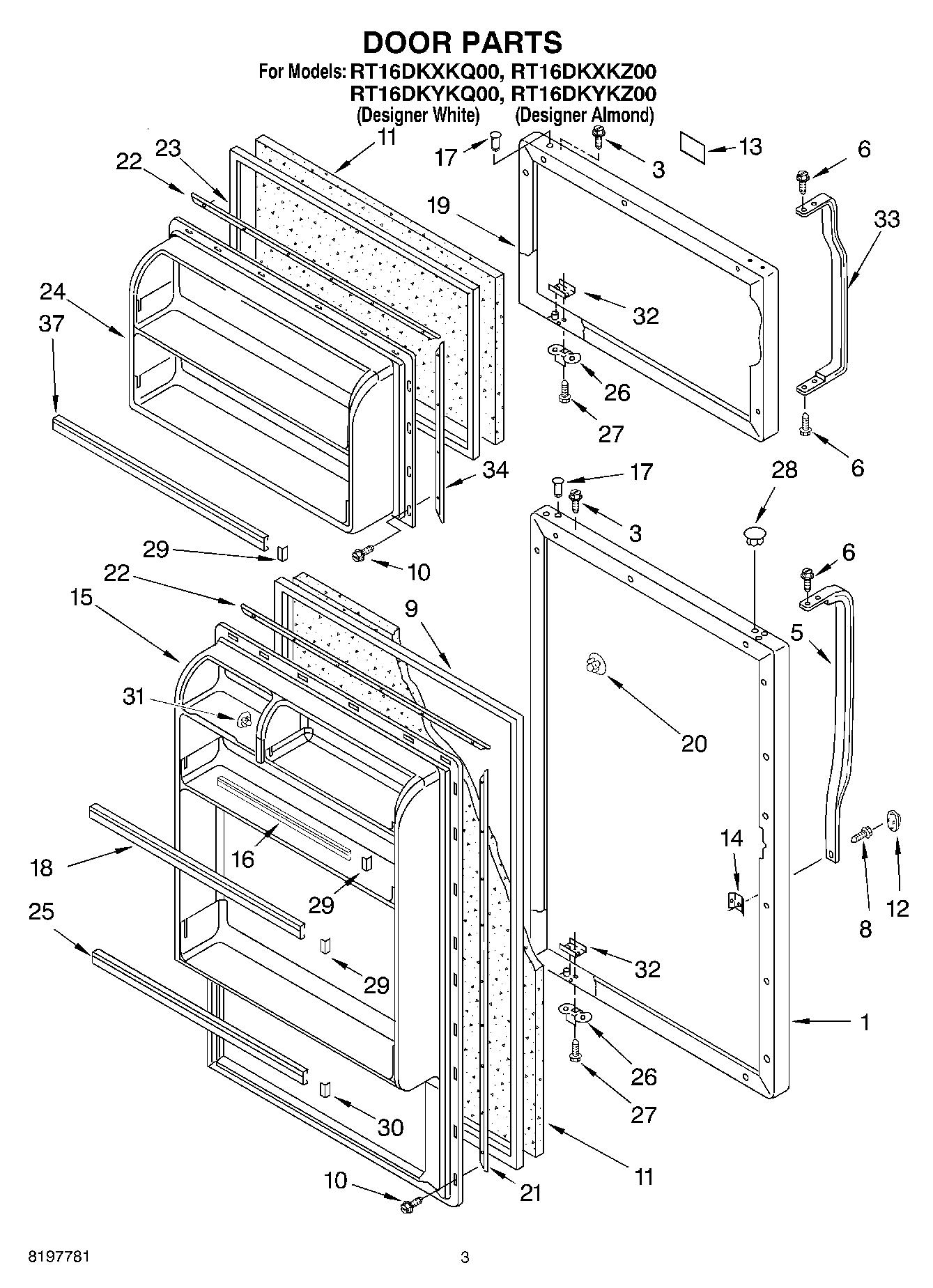

RT16DKXKZ00 02 – DOOR

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 11) (Almond)
1	Refrigerator Door Panel (Also Order Item 11) (White)
3	WP8281206 Whirlpool Refrigerator Screw
5	Handle Center (Almond)
5	WP2202807W Whirlpool Handle Door
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	WP2319266T Whirlpool Refrigerator FIP Gasket
10	WP489442 Whirlpool Refrigerator Screw
11	WPL 876029
12	Cover, Screw (Almond)
12	WP2202819W Whirlpool Refrigerator Cover
13	Nameplate (Almond)
13	Nameplate (White)
14	WP939101 Whirlpool Refrigerator Plate
15	Interior Door Panel (Refrigerator)
17	WP2183003 Whirlpool Thimble
18	Trim, Door (Middle)
19	Freezer Door Panel (Also Order Item 11) (Almond)
19	Freezer Door Panel (Also Order Item 11) (White)
20	WP2189000 Whirlpool Refrigerator Handle Plug
20	Hole Plug (Almond)
21	Retainer, Gasket
22	Retainer, Gasket
23	2188462A Whirlpool Freezer Door Gasket
24	Interior Door Panel (Freezer)
25	WP2197356 Whirlpool Refrigerator Door Trim
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	Hole Plug (Almond)
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	Hole Plug
32	Tap Plate
33	Handle, F.C. (Almond)
33	HANDLE
34	Retainer, Gasket
37	WP2163629 Whirlpool Refrigerator Door Trim
