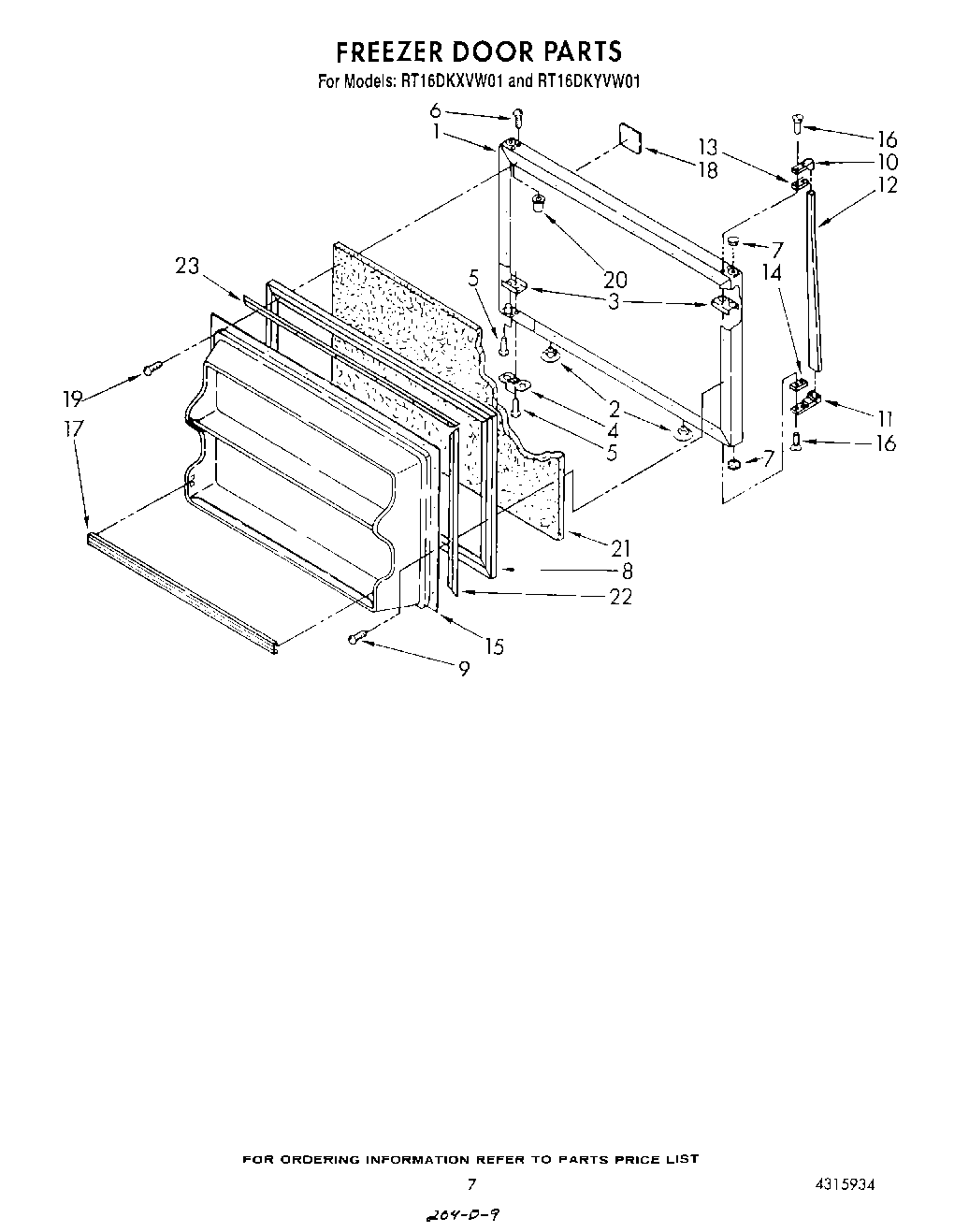

RT16DKXVG01 06 – FREEZER DOORadmin2025-04-26T11:00:45+00:00RT16DKXVG01 06 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Panel, Freezer Door (Also Order Item 21) (Almond) |
| 1 | Panel, Freezer Door (Also Order Item 21) (Golden Harvest) |
| 1 | Panel, Freezer Door (Also Order Item 21) (White) |
| 2 | Hole Plug (2) (Golden Harvest) |
| 2 | Hole Plug (2) (Almond) |
| 2 | Hole Plug (2) |
| 3 | W10833053 Whirlpool Refrigerator Plate |
| 4 | Bracket, Door Stop |
| 5 | WP488921 Whirlpool Refrigerator Screw |
| 6 | Screw (Repair) |
| 6 | WP8281206 Whirlpool Refrigerator Screw |
| 7 | Hole Plug (Almond) |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 8 | GASKET-DOR |
| 9 | WP489069 Whirlpool Compactor Screw |
| 11 | 819342 Whirlpool Refrigerator Endcap Kit |
| 12 | Handle, Center |
| 13 | Shim, Handle |
| 14 | Spa |
| 15 | Panel, Interior Door (Freezer) |
| 16 | Screw (Repair) |
| 16 | WP488920 Whirlpool Refrigerator Screw |
| 17 | Trim, Door Shelf (2) |
| 18 | Nameplate |
| 19 | WP488729 Whirlpool Refrigerator Door Screw |
| 20 | Cap, Hinge Sleeve (2) |
| 21 | WPL 876029 |
| 22 | Gasket Retainer, Side (2) |
| 23 | Retainer, Gasket |
