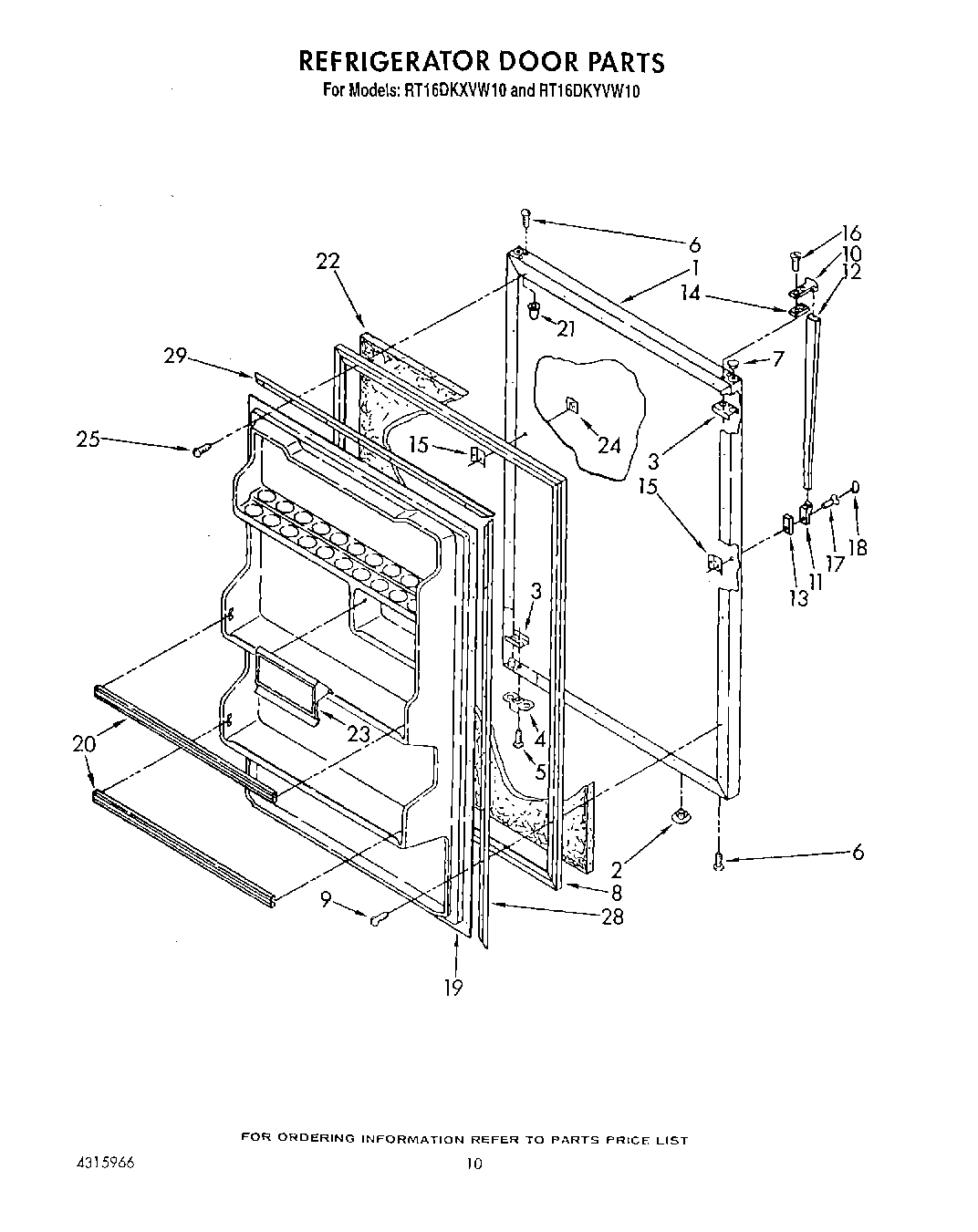

RT16DKXVG10 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

RT16DKXVG10 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

RT16DKXVG10 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350956 Whirlpool Spray Assembly
285006 Whirlpool Spray
Torx Key
WPL LIT4315966
WPL LIT2150138
350942 Whirlpool Spray Paint
Golden Harvest
WPL LIT1127880
WPL LIT1124903
Leveler (Thinner)
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
1Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
1Panel, Refrigerator Door (Also Order Item 27) (White)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
6Screw (Repair)
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82188445A Whirlpool Refrigerator Door Gasket Seal
9WP489069 Whirlpool Compactor Screw
10819342 Whirlpool Refrigerator Endcap Kit
12Handle, Center
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
16Screw (Repair)
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door (Top) (2)
21Cap, Hinge Sleeve (2)
23Compartment, Butter Door
24Hole Plug, Handle (Almond)
24Hole Plug, Handle (White)
24WP2189000 Whirlpool Refrigerator Handle Plug
28Gasket Retainer, Side (2)
29833938 Whirlpool Refrigerator Terminal
29606755 Whirlpool Refrigerator Bag
2972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
29511873 Whirlpool Refrigerator Paint
29212643 Whirlpool Refrigerator Permagum Sealer
29Golden Harvest (Uncut)
29Almond (Uncut)
29WP72107 Whirlpool Touchup
29799344 Whirlpool Refrigerator Paint
29Retainer, Gasket
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
2972032 Whirlpool Touch Up Paint Black
29WPL 876029
29WPL 799833
29Enamel, Black (1 Qt. Uncut)
29TAPE, VINYL (3/4 X 108“)
29WP542638 Whirlpool Refrigerator Grease
29WP505587 Whirlpool Refrigerator Sealer
29WP503695 Whirlpool Refrigerator Sealer
29876370 Whirlpool Refrigerator Insulation
2972017 Whirlpool Appliance Touch-Up Paint White
