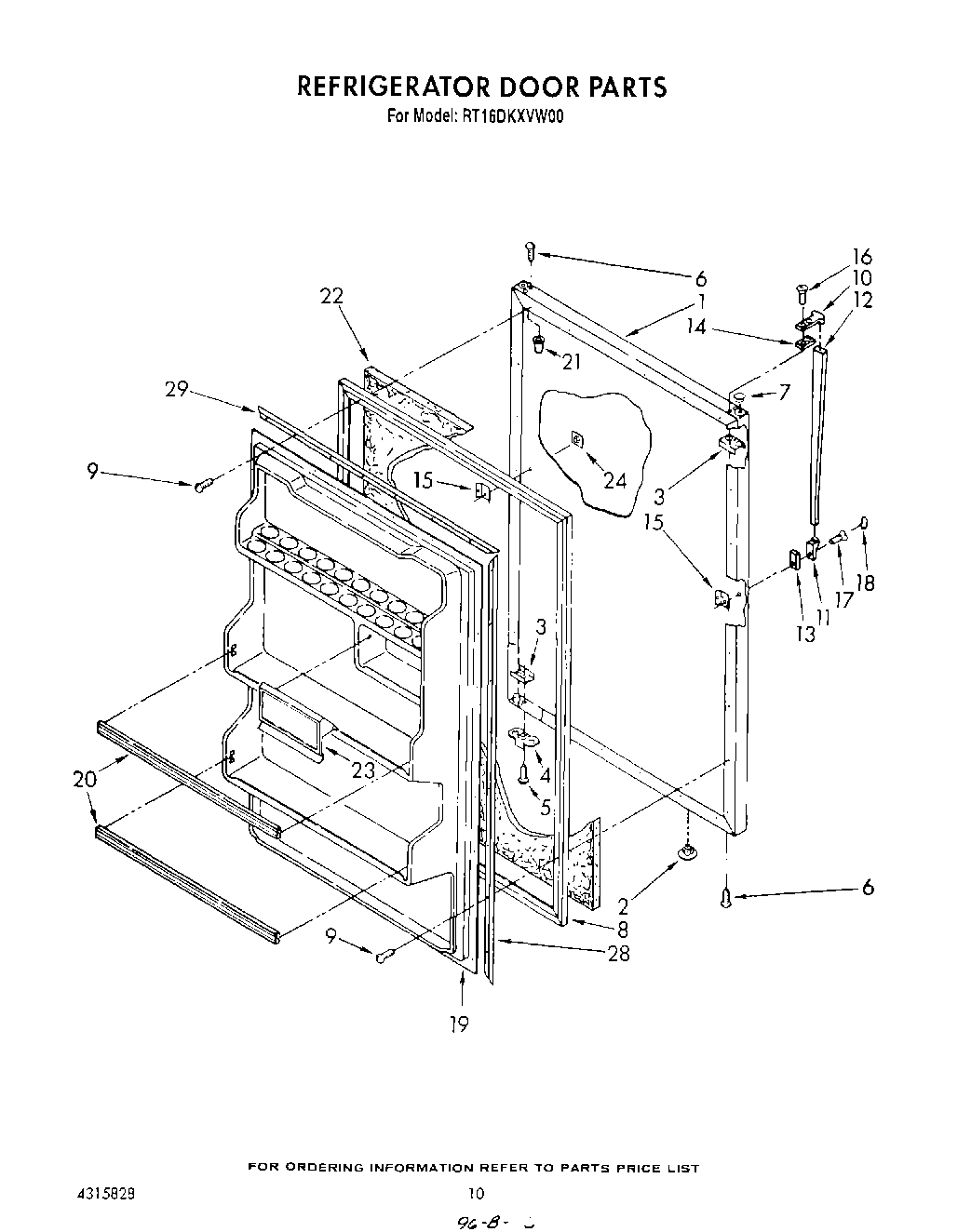

RT16DKXVL00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

RT16DKXVL00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

RT16DKXVL00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
Torx Key
Golden Harvest
WPL LIT4315828
WPL LIT1124321
Leveler (Thinner)
WPL LIT1118724
350956 Whirlpool Spray Assembly
WPL LIT1124394
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
1Panel, Refrigerator Door (Also Order Item 27) (White)
1Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82188445A Whirlpool Refrigerator Door Gasket Seal
9WP489069 Whirlpool Compactor Screw
10819342 Whirlpool Refrigerator Endcap Kit
12Handle, Center
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
16Screw (Repair)
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door (Top) (2)
21Cap, Hinge Sleeve (2)
23Compartment, Butter Door
24WP2189000 Whirlpool Refrigerator Handle Plug
24Hole Plug, Handle (Almond)
24Hole Plug, Handle (White)
28Gasket Retainer, Side (2)
29WP72107 Whirlpool Touchup
29Almond (Uncut)
29799344 Whirlpool Refrigerator Paint
2972017 Whirlpool Appliance Touch-Up Paint White
2972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
29Retainer, Gasket
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
29Enamel, Black (1 Qt. Uncut)
29876370 Whirlpool Refrigerator Insulation
29833938 Whirlpool Refrigerator Terminal
2972032 Whirlpool Touch Up Paint Black
29WP505587 Whirlpool Refrigerator Sealer
29TAPE, VINYL (3/4 X 108“)
29606755 Whirlpool Refrigerator Bag
29511873 Whirlpool Refrigerator Paint
29WPL 876029
29WPL 799833
29212643 Whirlpool Refrigerator Permagum Sealer
29Golden Harvest (Uncut)
29WP503695 Whirlpool Refrigerator Sealer
29WP542638 Whirlpool Refrigerator Grease
