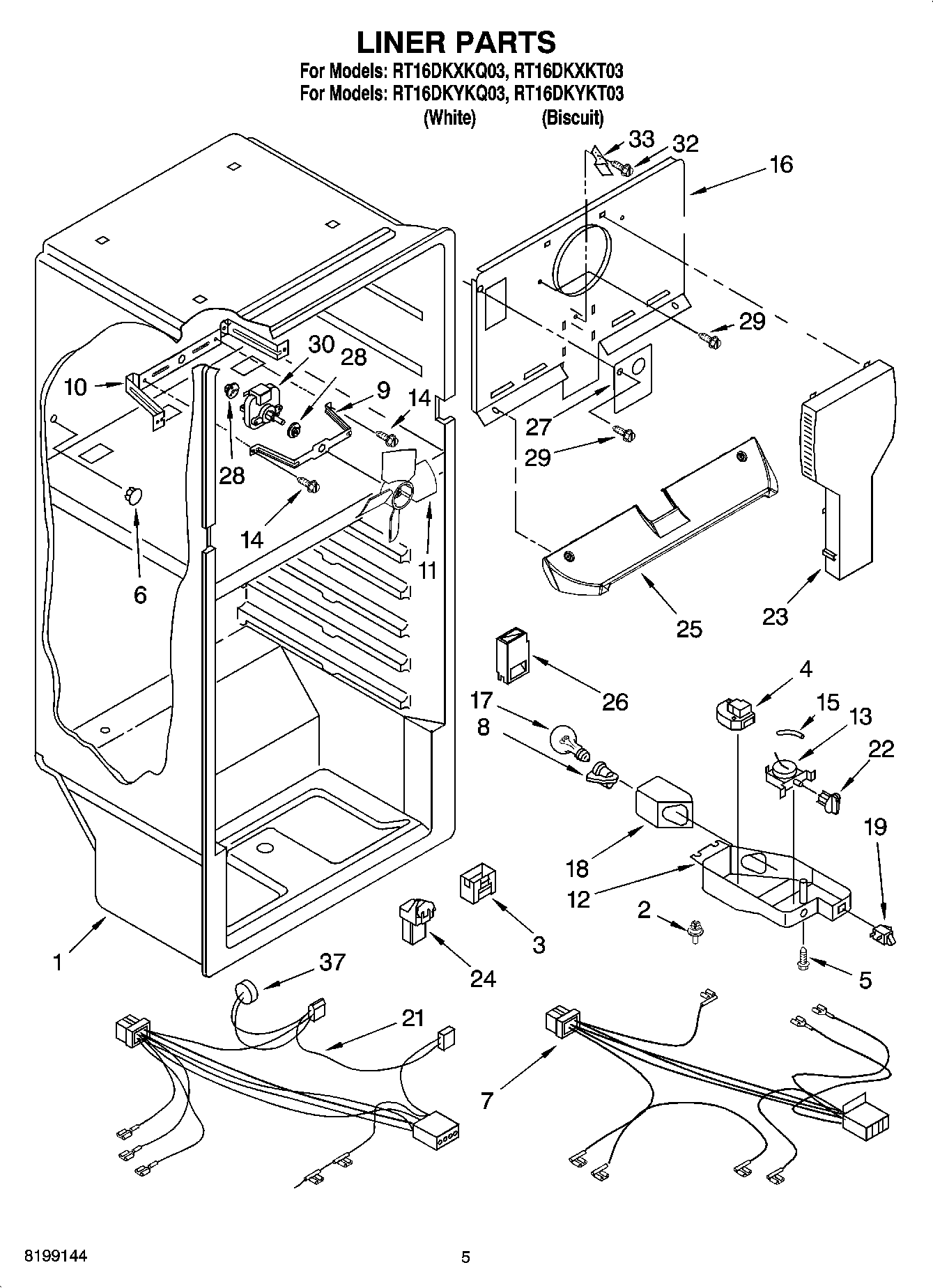

RT16DKYKQ03 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Cover, Air Diffuser
4	W10822278 Whirlpool Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	WP941839 Whirlpool Refrigerator Button Plug
7	2176927 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10180172 Whirlpool Refrigerator Bracket
10	Fan Mounting Bracket
11	Fan Blade
12	2215213 Whirlpool Refrigerator Control Box
13	WPW10567140 Whirlpool Refrigerator Thermostat
14	WP489399 Whirlpool Refrigerator Screw
15	WP2196003 Whirlpool Refrigerator Bar Riser
16	Cover, Evaporator
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
21	WP2192096 Whirlpool Refrigerator Wire Harness
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	9790408 Whirlpool Refrigerator Air Tower
24	Hood And Foil Assembly
25	Cover, Air Return
26	Air Diffuser
27	WP2217784 Whirlpool Refrigerator Cover
28	WP2264462 Whirlpool Refrigerator Grommet
29	WP489474 Whirlpool Refrigerator Screw
30	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
32	WP965173 Whirlpool Dishwasher Screw
33	2197416 Whirlpool Refrigerator Deflector
37	WP4387490 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
