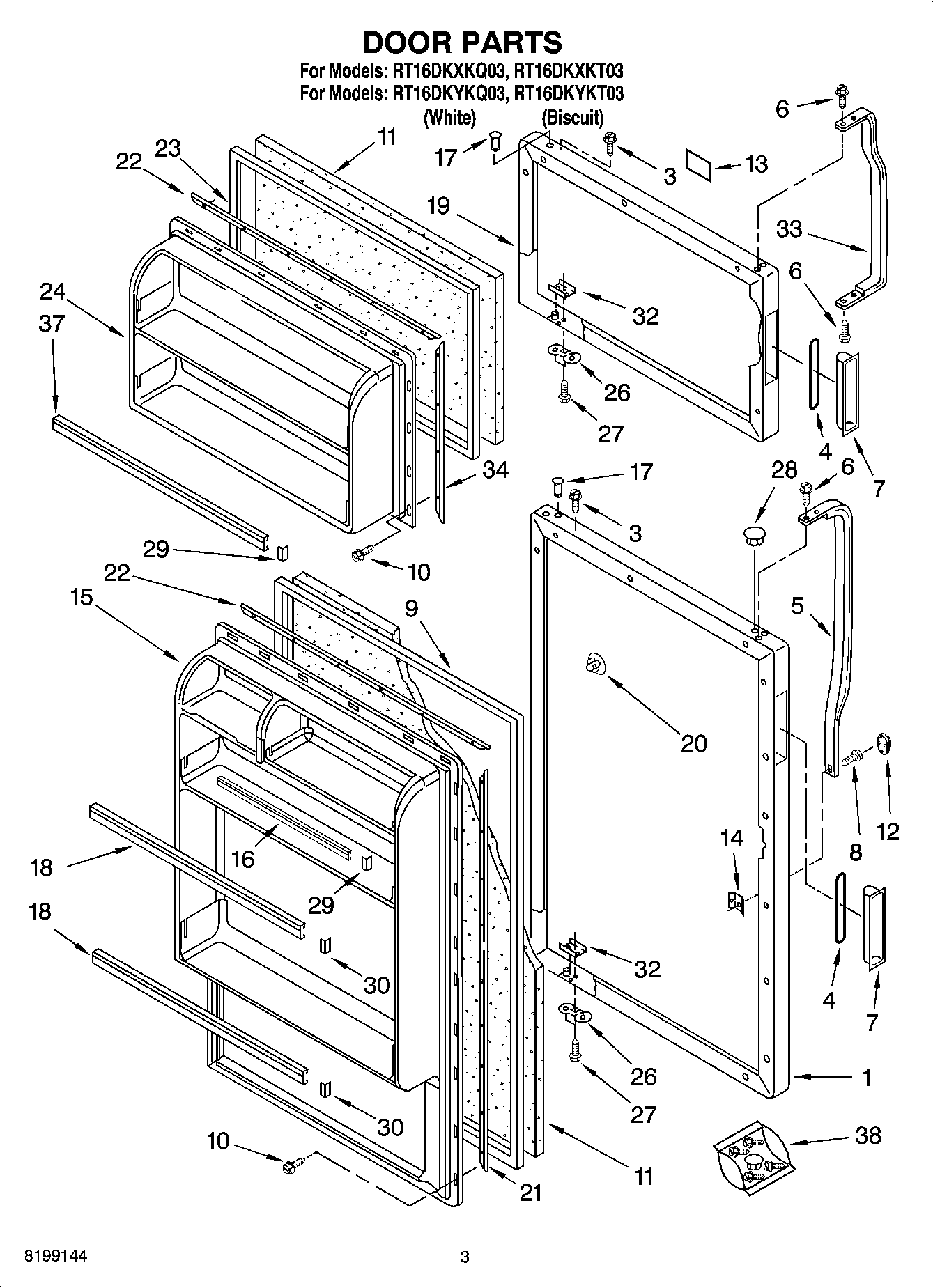

RT16DKYKT03 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 11) (Biscuit)
1	Refrigerator Door Panel (Also Order Item 11) (White)
3	WP8281206 Whirlpool Refrigerator Screw
4	Gasket, Handle
5	WP2221946T Whirlpool Refrigerator Handle
5	HANDLE
6	WP489357 Whirlpool Recessed Screw
7	WP984493 Whirlpool Refrigerator Handle
7	Handle (Biscuit)
8	WP8281146 Whirlpool Screw
9	WP2319266T Whirlpool Refrigerator FIP Gasket
10	WP489442 Whirlpool Refrigerator Screw
11	WPL 876029
12	WP2202819W Whirlpool Refrigerator Cover
12	Cover, Screw (Biscuit)
13	Nameplate (Biscuit)
13	Nameplate (White)
14	WP939101 Whirlpool Refrigerator Plate
15	Interior Door Panel (Refrigerator)
17	WP2183003 Whirlpool Thimble
18	Trim, Door (Middle)
19	Freezer Door Panel (Also Order Item 11) (Biscuit)
19	Freezer Door Panel (Also Order Item 11) (White)
20	WP2189000 Whirlpool Refrigerator Handle Plug
20	WP2200936 Whirlpool Refrigerator Handle Plug
21	Retainer, Gasket
22	Retainer, Gasket
23	2188462A Whirlpool Freezer Door Gasket
24	Interior Door Panel (Freezer)
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212649 Whirlpool Refrigerator Button Plug
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
32	Tap Plate
33	HANDLE
33	WP2215015 Whirlpool Refrigerator Handle
34	Retainer, Gasket
37	WP2163629 Whirlpool Refrigerator Door Trim
38	Hole Plug Kit (If Bow Handle is Removed) (White)
38	Hole Plug Kit (If Bow Handle is Removed) (Biscuit)
